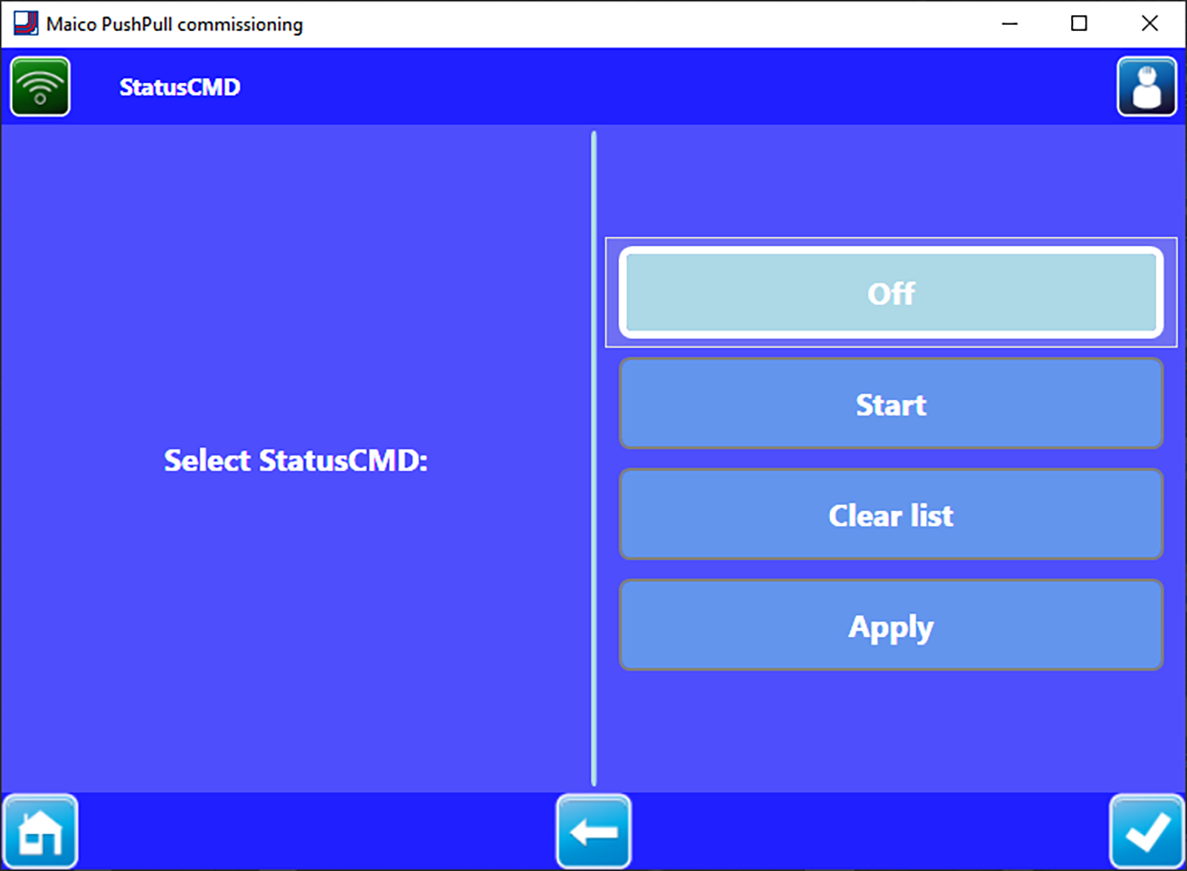

Status CMD: Start automatic search

Off

End search/deactivate search (factory setting).

Start

Start automatic search.

Delete list

Delete the list of devices found.

Adopt

Manual transfer of the devices found after an error message.



A maximum of 8 RV 2 ventilation units + 8 CPP 60 ventilation units can be connected to one master controller (provided that sufficient PP 45 LT power units are available).

The devices found are stored in a list in ascending order based on the device address. Other units are ignored and not saved in the list.

Even with an uneven number of ventilation units, these can be configured automatically with the commissioning software.

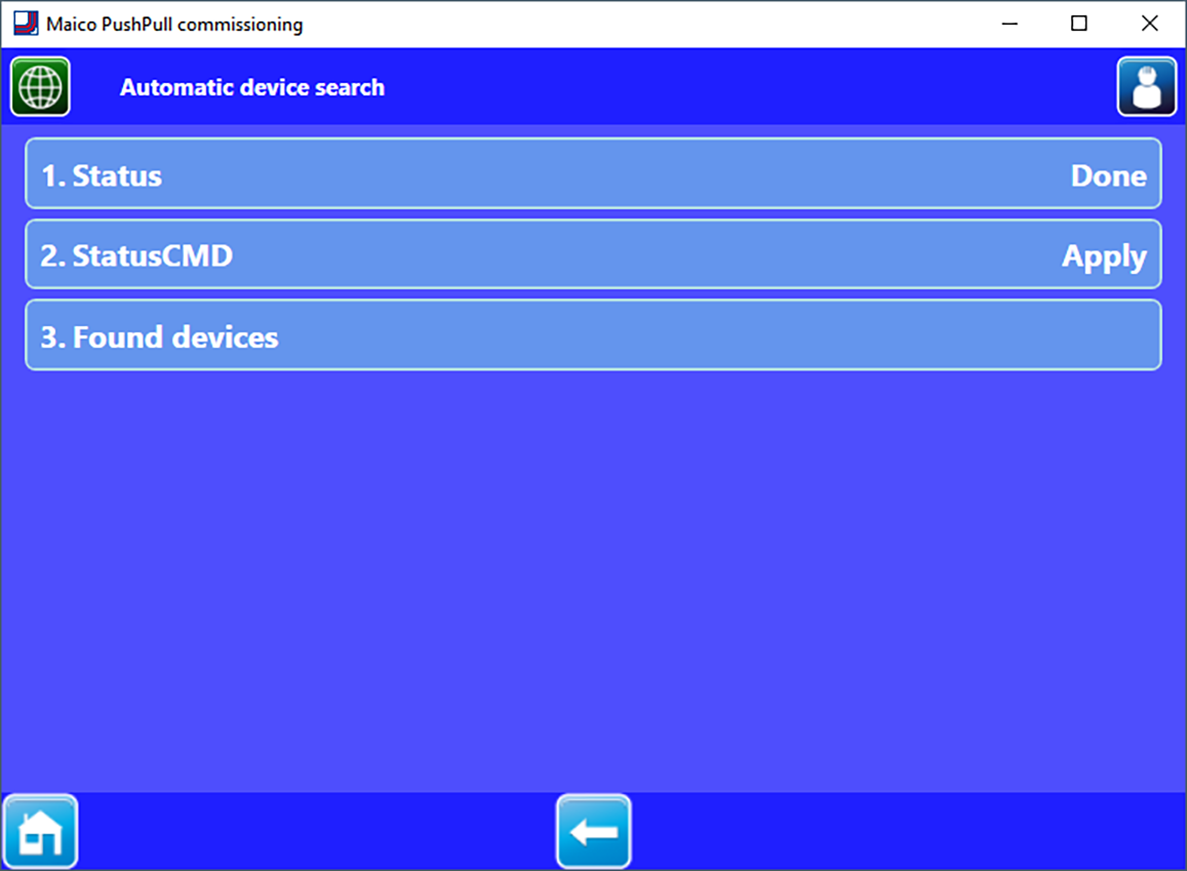

A successful search is signalled by a green info window with the following message: "A valid configuration was found. The units were successfully assigned."

If no unit is found or an address is used more than once, the search is deemed to have failed. The failed search is signalled by a red info window with the following message: "An invalid configuration was found. Please accept and configure manually.”



Start: Start automatic search

  1. Press the Start button, the automatic search starts.
  2. Confirm the security enquiry Are you sure you want to start the search? that is now displayed.

The search for connected ventilation units begins with the message Units being searched for and takes approx. 1 minute. A search is considered successful if at least one ventilation unit is found and no address appears more than once.

The units are automatically transferred to the system and sorted.

Assignment to the corresponding device group (exhaust air or supply air) is based on the unit ID.

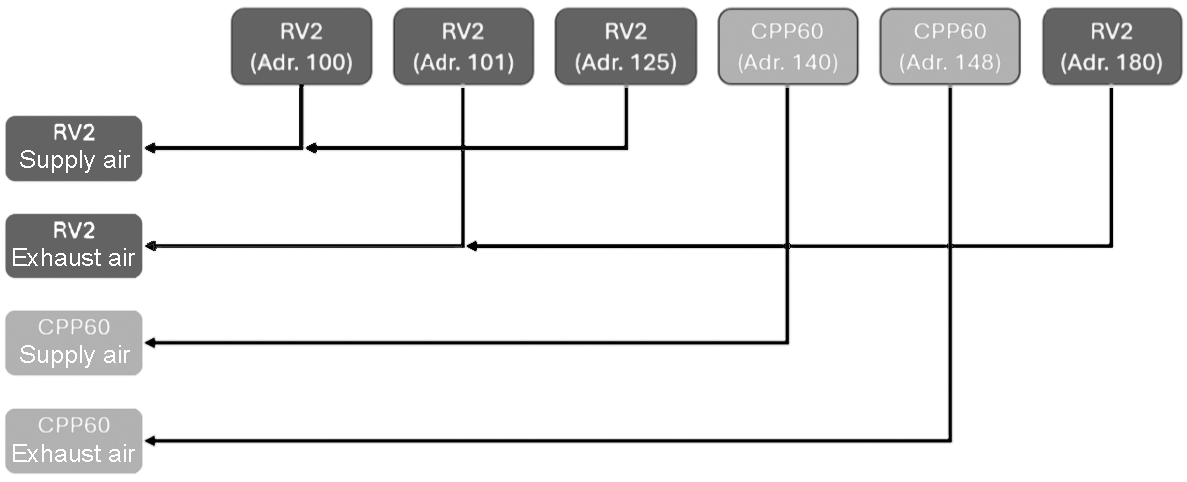

Example: Sorting during automatic search

Sorting is based on the device address in ascending order, alternating between the supply air and exhaust air group.
