Unit addresses

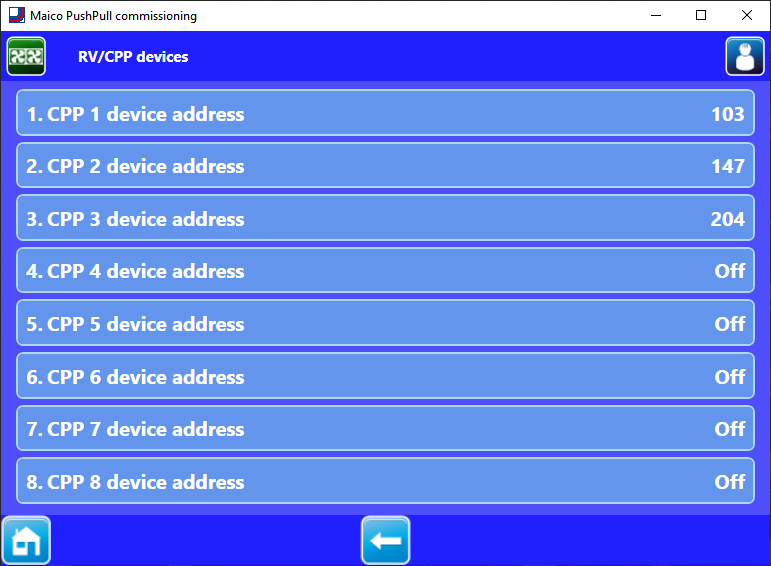

Menu for manually entering or changing the unit addresses. New units can be added or removed.

After selecting a menu line, the associated unit address can be overwritten with another one. This is required, for example, for a manual configuration for mixed systems.

To do this, the unit address (3-digit number) on the ventilation unit must be selected from the list of 150 bus addresses and confirmed. The addresses must match and must not be used more than once.

A successful address configuration is confirmed with Executed. If the address configuration fails, the message The address is already assigned appears.
