Devices found

This overview lists devices found.

A maximum of 8 RV 2 ventilation units + 8 CPP 60 ventilation units can be connected to one master controller (provided that sufficient PP 45 LT power units are available). The devices found are displayed in a list in ascending order based on the device address. Other units are ignored and not saved in the list. RV 2 ventilation units appear at the beginning of the list, CPP 60ventilation units at the end.

Example:

Even number of CPP 60 (6 units)

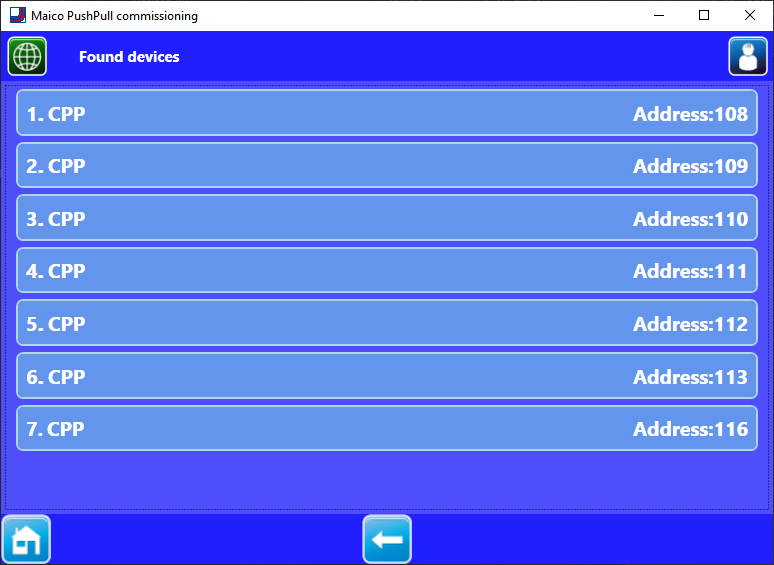

Odd number of CPP 60 (7 units)

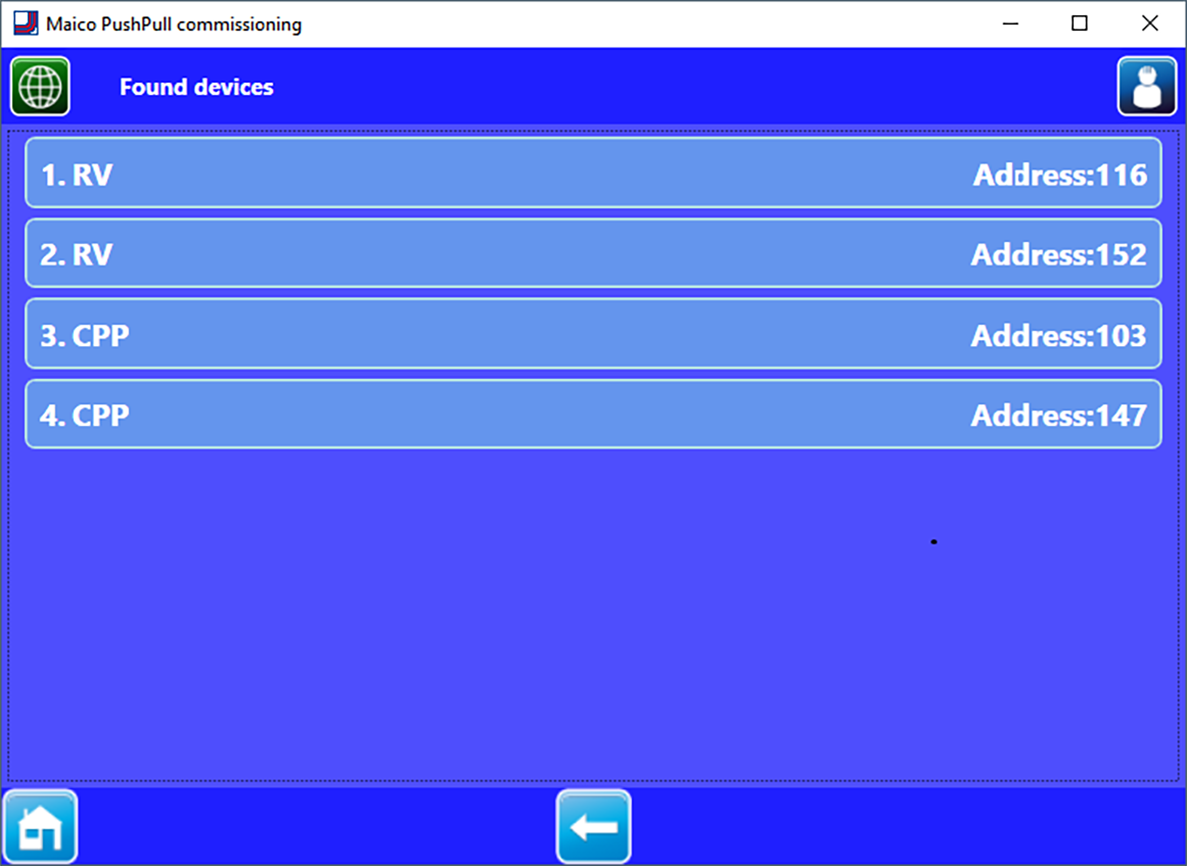

Mixed system with an even number of RV 2 and CPP 60 (4 units)

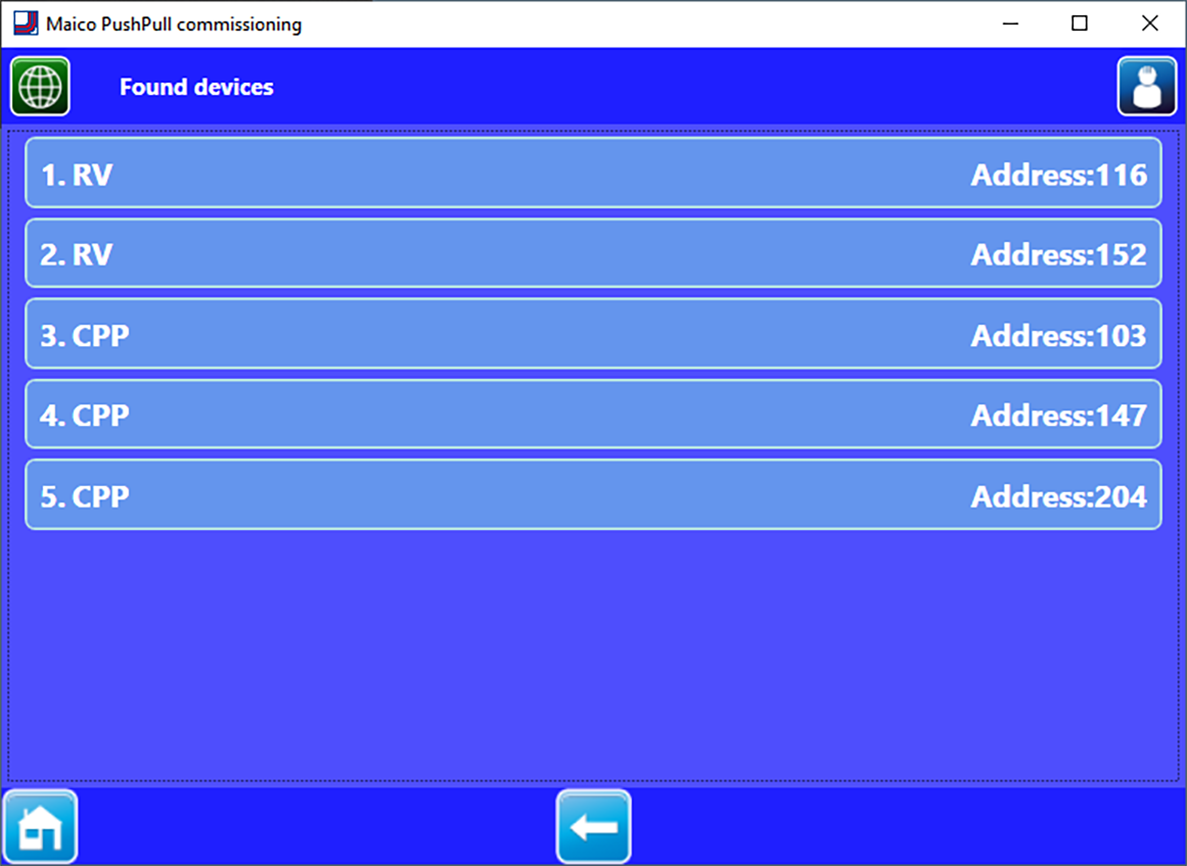

Mixed system with an odd number of RV 2 and an even number of CPP 60 (5 units)

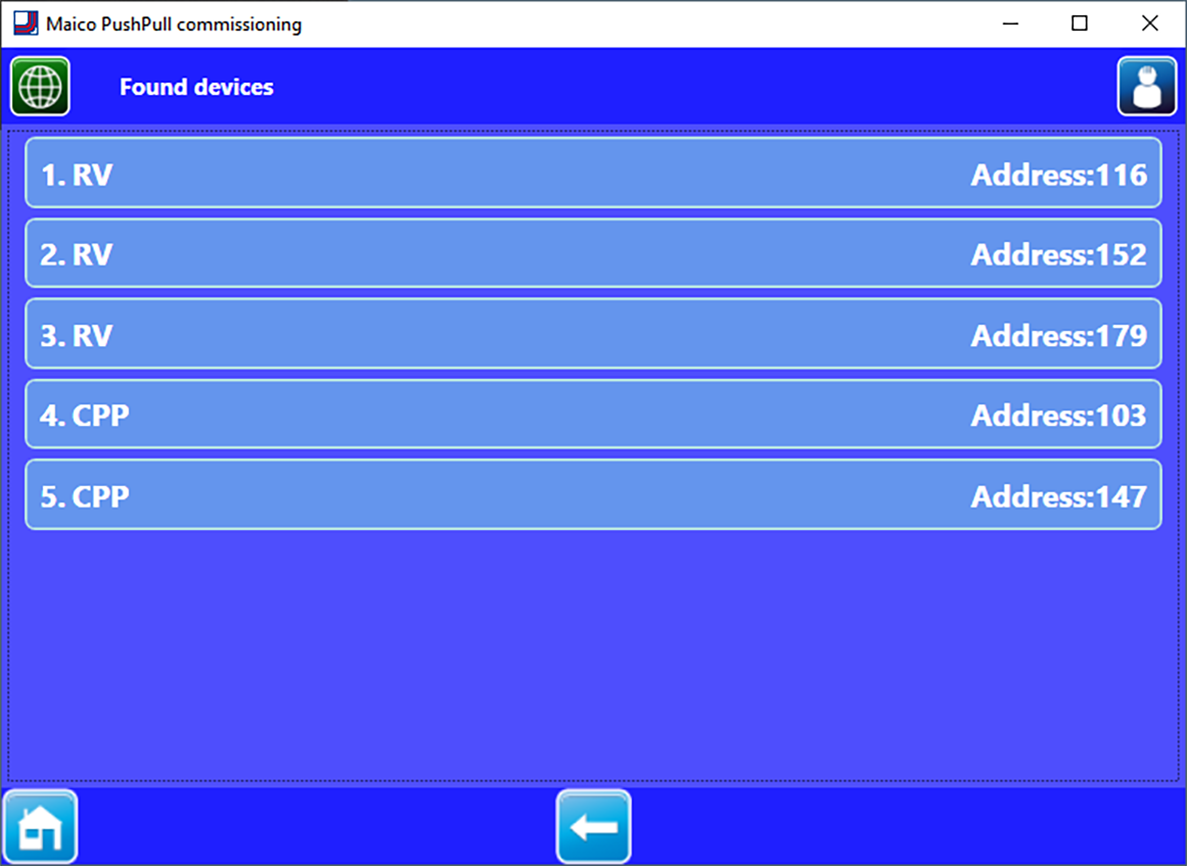

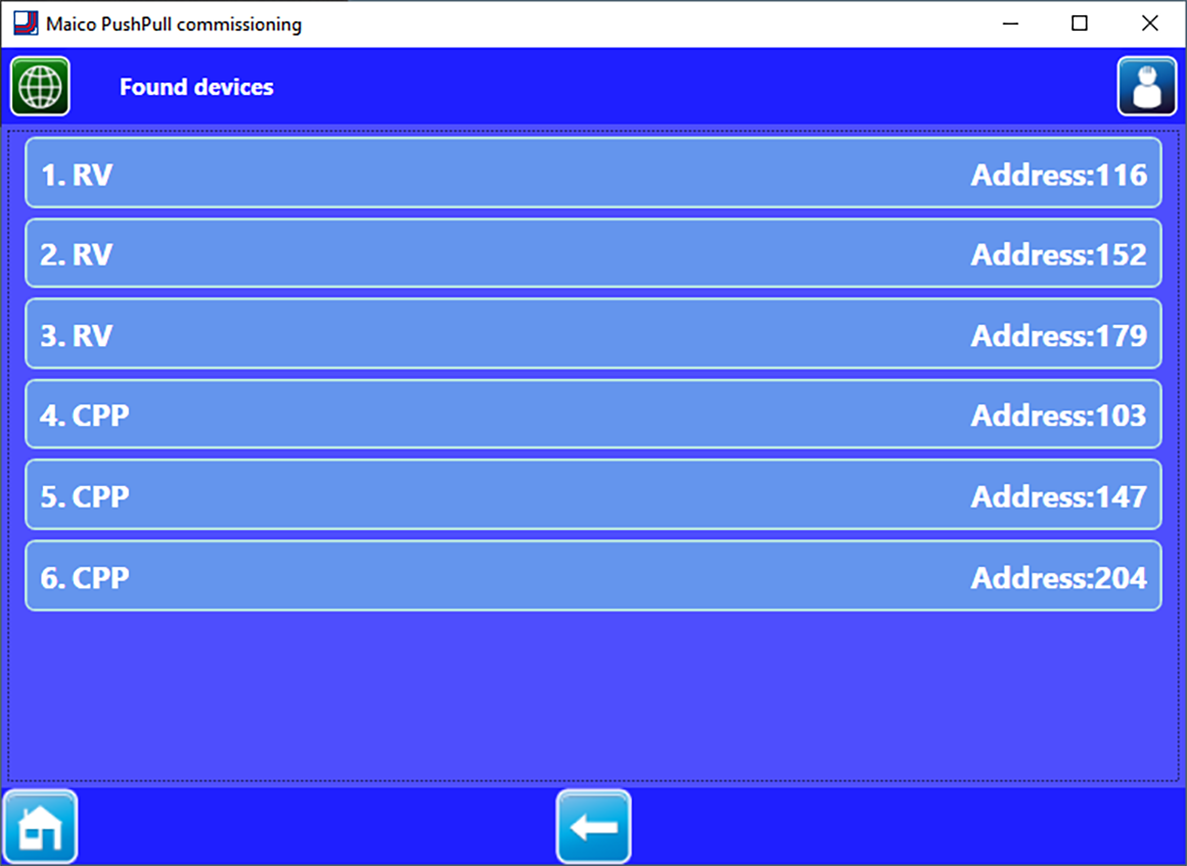

Mixed system with an odd number of RV 2 and an odd number of CPP 60 (6 units)

Mixed system with an even number of RV 2 and an odd number of CPP 60 (5 units)
