Housing installation

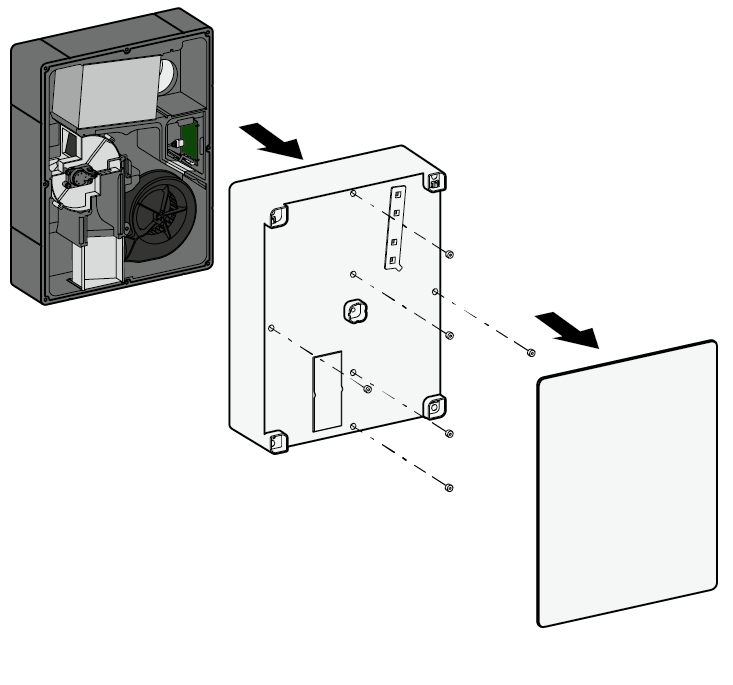

  1. Undo and remove the front cover at the corners.
  2. Loosen the screw covers using a size 3 Allen key and remove the upper part of the unit.
  3. Remove the enclosed connecting piece and the screws from the housing.

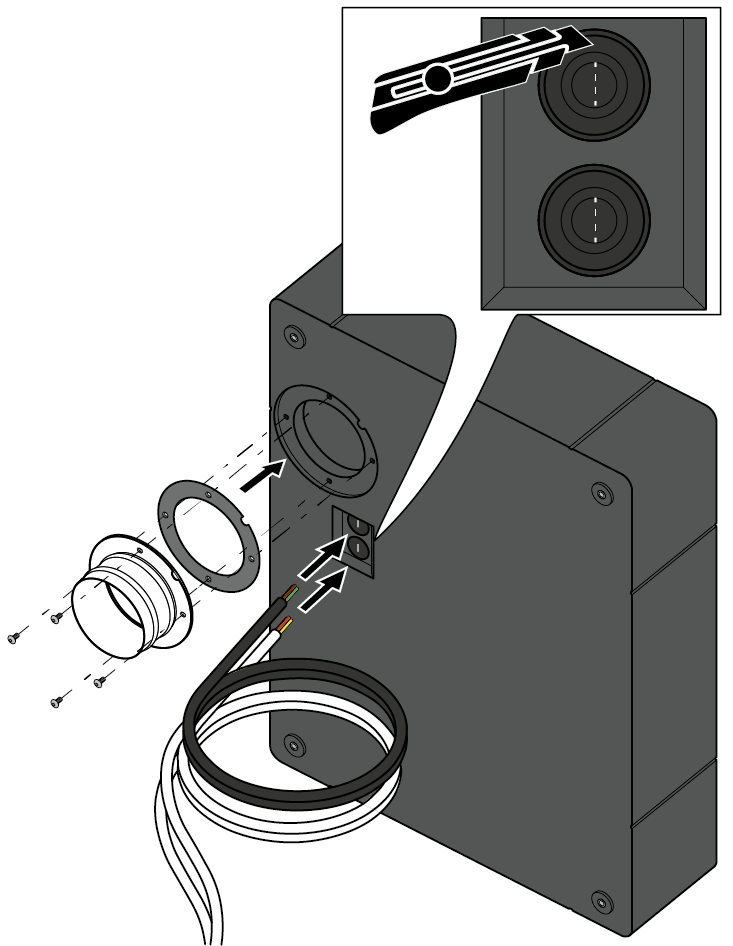

  5. Remove the nozzle and fit a self-adhesive gasket.
  6. Then fasten the connection piece to the back of the unit using 4 screws (included in the scope of delivery).
  7. Drill holes (Ø 8 mm) in the cable grommets and feed the mains and control cables through.
  8. Pull out the circuit board.

  9. 1

    Mains cable connection

    2

    Control cable connection

  10. Wire the control cable and 230 V mains cable → Connection and wiring diagrams.
  11. Insert the circuit board.
