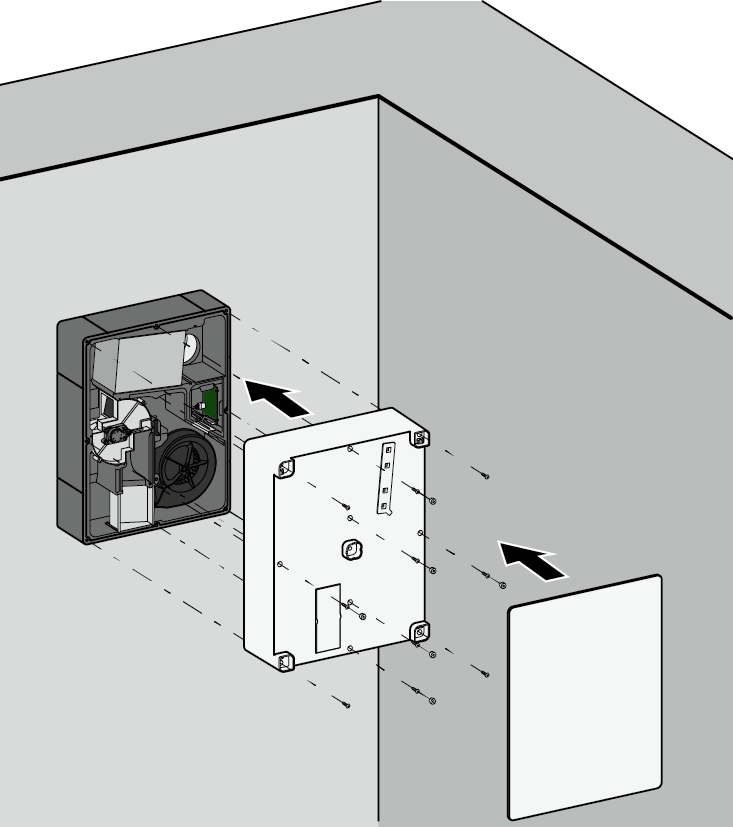

Surface-mounted wall installation

  1. Remove the screw cover.
  3. Mount the unit on the wall using suitable fixing material (to be provided by the customer).
  5. Fasten the upper part of the unit hand-tight with 10 screws (included in the scope of delivery).
  6. Place the supplied screw covers on the screws, leaving out the 4 screws in the corners.
  7. Attach the front cover to the upper part of the unit.
