Flush-mounted wall installation

  1. Remove the screw cover.

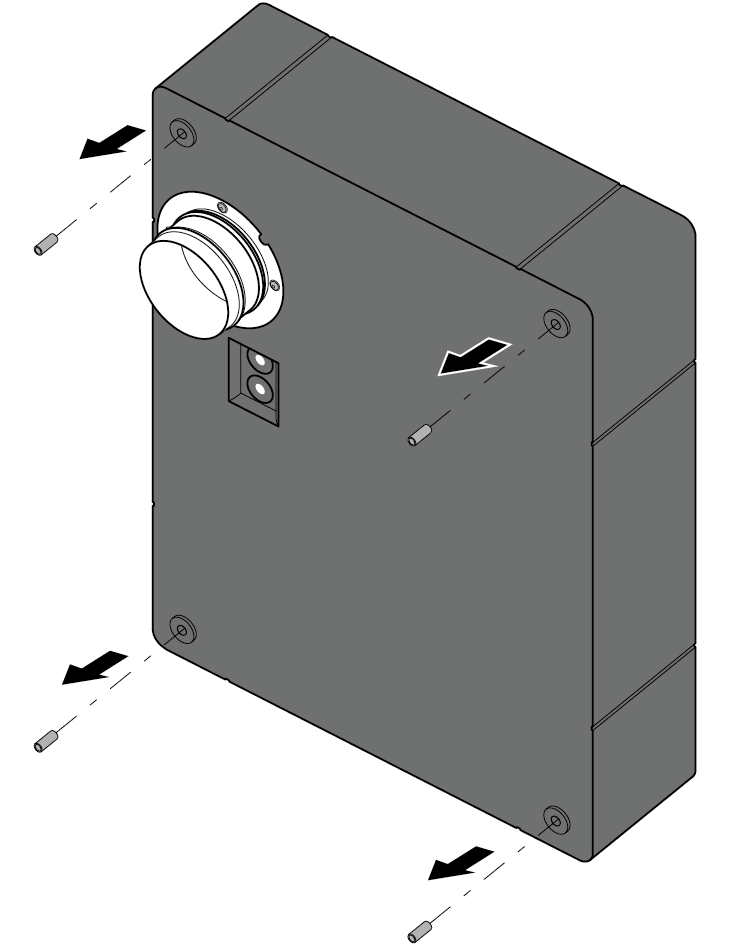

  3. Remove the 4 metal sleeves from the EPP housing.

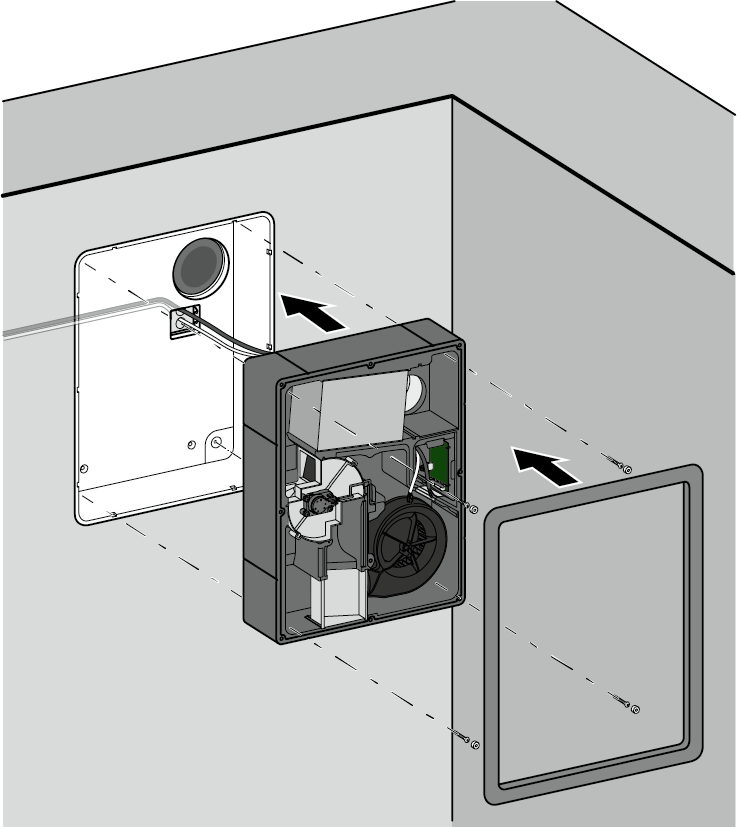

  5. Mount the unit in the flush-mounted tray using suitable fixing material. Then attach the wall cover.

Suitable fixing materials: 4 washers and 4 screws are included with the CPP 60 VSUP.

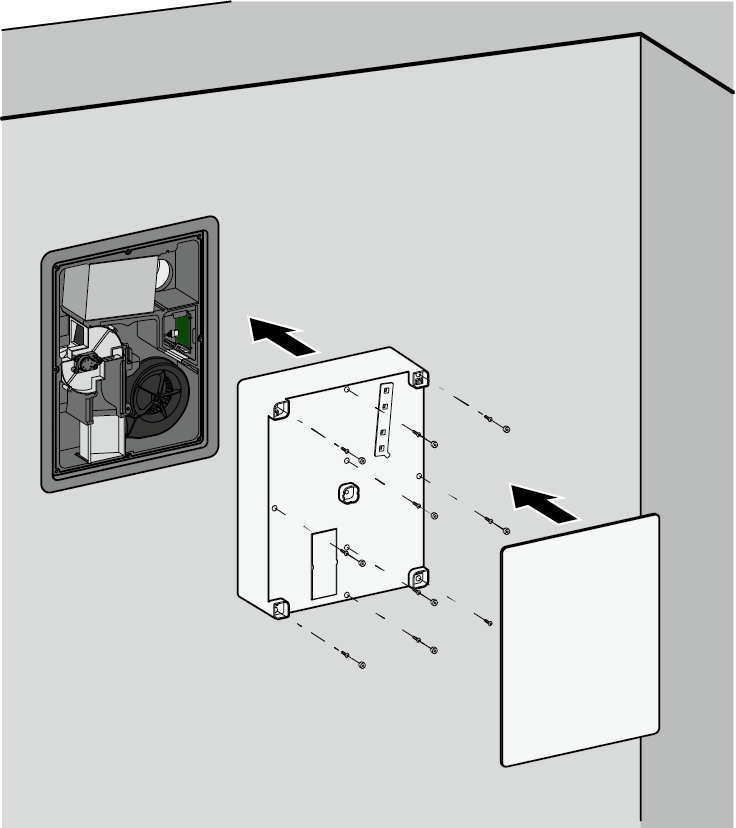

  1. Fasten the upper part of the unit hand-tight with 10 screws.
  2. Place the supplied screw covers on the screws, leaving out the 4 screws in the corners.
  4. Attach the front cover to the upper part of the unit.
