Operating programs
An operating programme switches between the power levels for standard operation and overrun (200 / 250 m³/h). There are 4 operating programmes available. No operating programmes can be selected for the ECA 150 ipro, ECA 150 ipro K and the RC radio variants.
For VZC, KVZC, B and KB variants, the set operating programme runs automatically.
For H and KH variants, the operating programme can only be switched on with a switch (light switch). The operating programme takes priority over the automatic humidity control.
- Set the operating programme with jumpers J4 and J5.
Program | jumper J4 | jumper J5 |
|---|---|---|

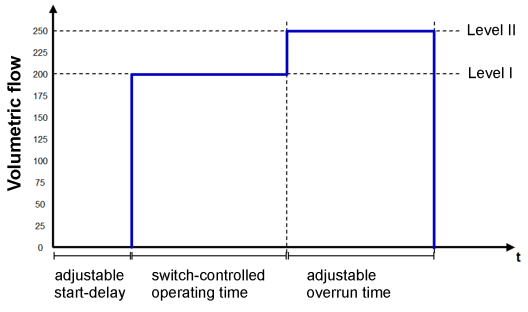

Comfort (factory setting): Level 1 = 200 m³/h, overrun level 2 = 250 m³/h | bridged | bridged |
Night: Level 2 = 250 m³/h, overrun level 1 = 200 m³/h | open | open |
Economy: During operation and overrun level 1 = 200 m³/h | open | bridged |
Power: During operation and overrun level 2 = 250 m³/h | bridged | open |

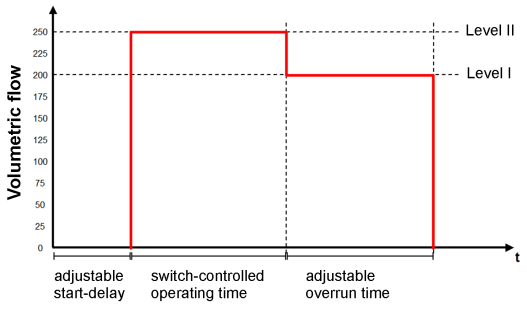

Comfort
Night

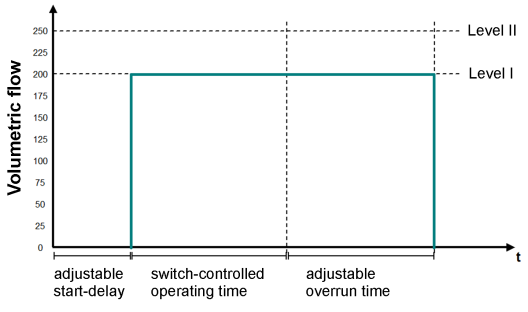

Economy
Power
