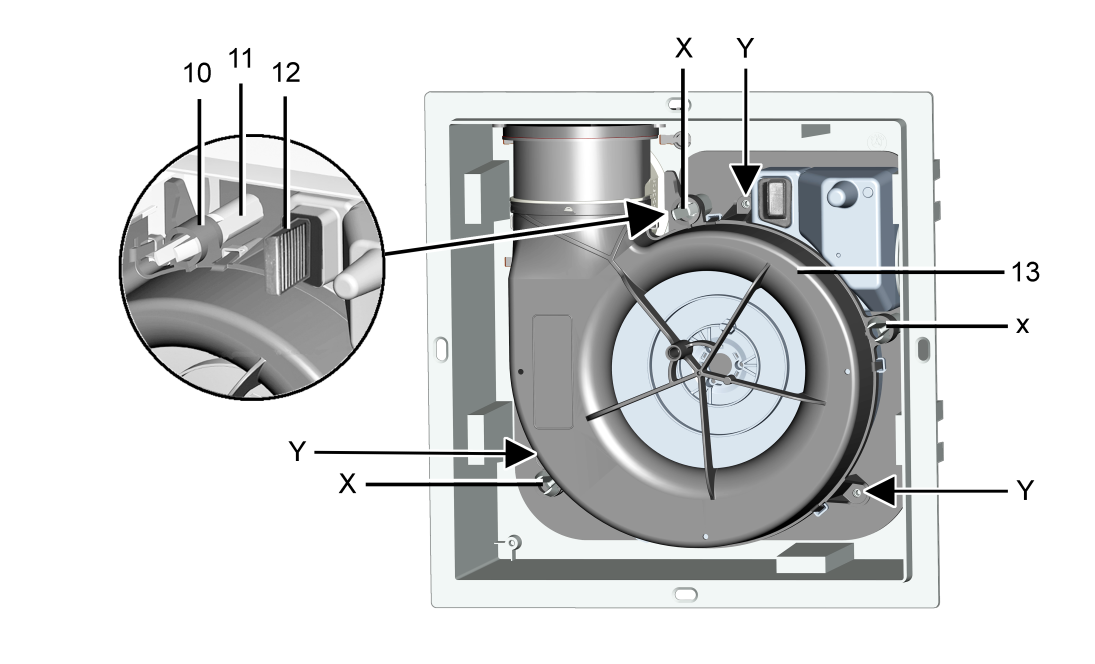

Fan insert

10

Accommodation mount

11

Stud with locking hook

12

Sealing plug

13

Fan insert

X

Locking hook

Y

Fixing holes for alternative screw fixings

The fan insert is delivered separately. Installation takes place in the completion stage. Operation of the ER EC unit during the shell construction phase is not permissible.
