Overview of UPD/UPB system

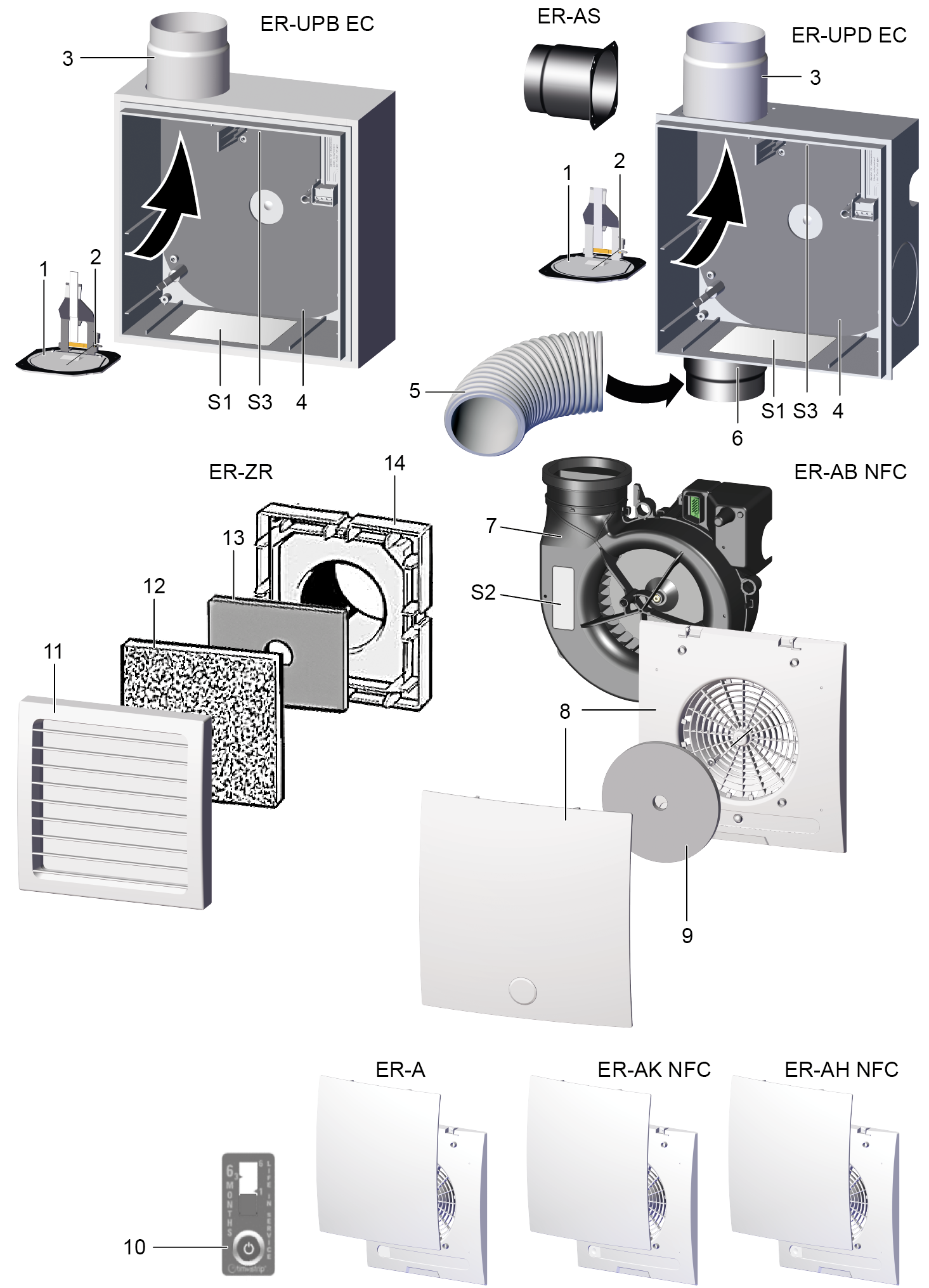

ER-UPD EC with fire protection shut-off device and ER-UPB EC with fire protection shut-off device and fire protection cover
1 | Metal shut-off damper with release mechanism |
2 | Soldered strut |
3 | Metal discharge connection |
4 | Housing floor seal |
5 | Suction duct, ZR connection (not included in ER-ZR set) |
6 | Plastic installation socket for second room extraction |
7 | Fan insert |
8 | Cover |
9 | Air filter |
10 | Time strip |
11 | Protective grille |
12 | Filter mat |
13 | Regulating plate for second room connection |
14 | Adapter |
S1 | Circuit diagram |
S2 | Rating plate |
S3 | TÜV sticker |
ER-AS (special accessories)
Extraction socket for toilet seat air extraction DN 70
