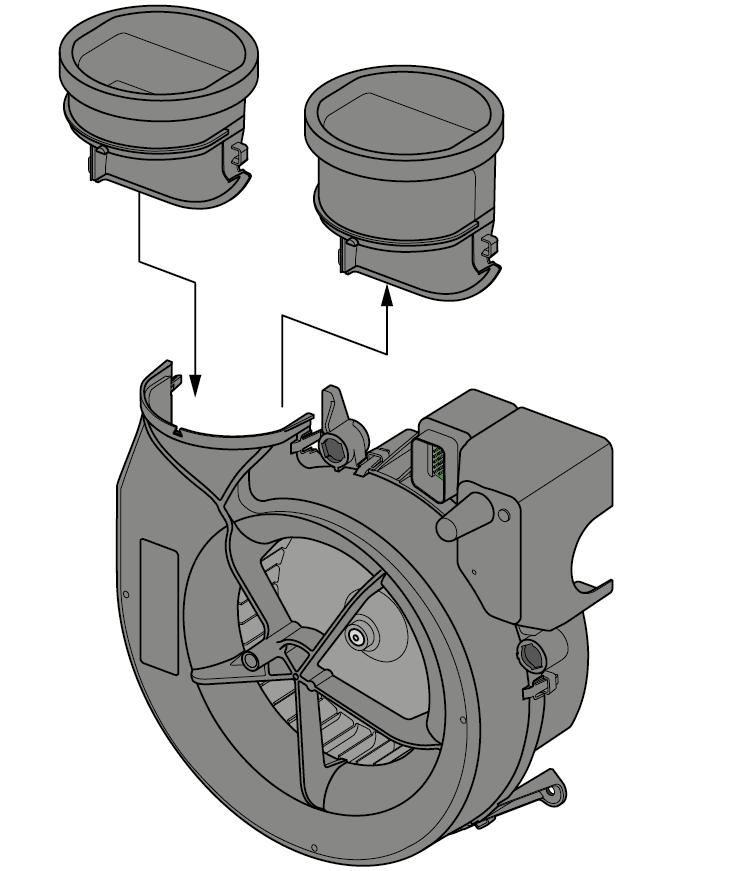

Conversion of air outlet adapter

The long air outlet adapter fitted to the ER EC/ER EC 2.1 must be replaced with the short air outlet adapter supplied in the housing

Replacement

  1. Loosen the 2 locking tabs of the discharge connection and carefully pull it out of the spiral housing rearwards.
  2. Push the discharge connection into the slot on the spiral housing until it audibly engages with the two locking tabs.
  3. Check and secure correct connections.
