Installation

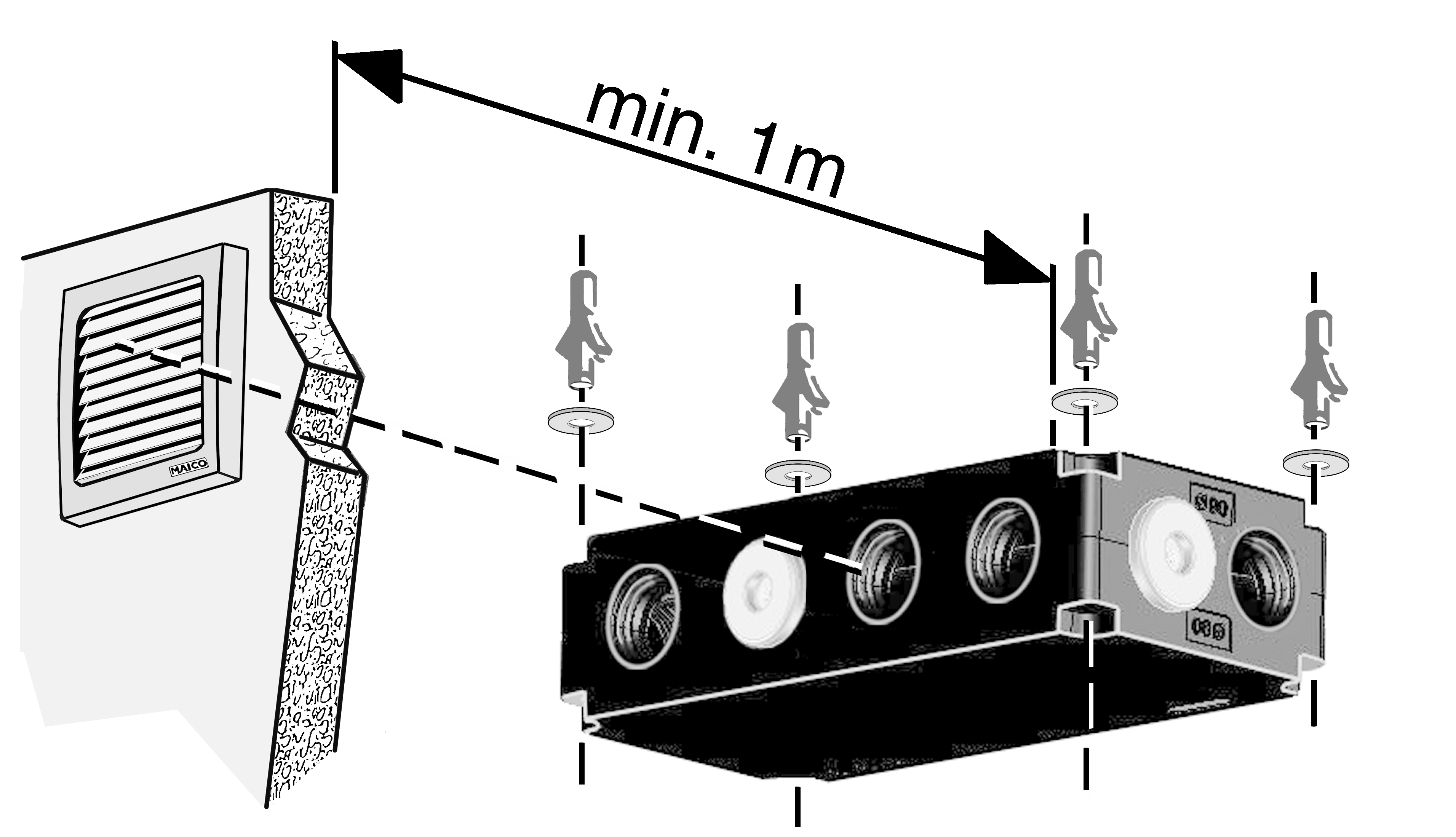

  1. Mark the position of the 4 holes.
  2. Drill holes with a Ø of 8 mm. Insert suitable dowel.

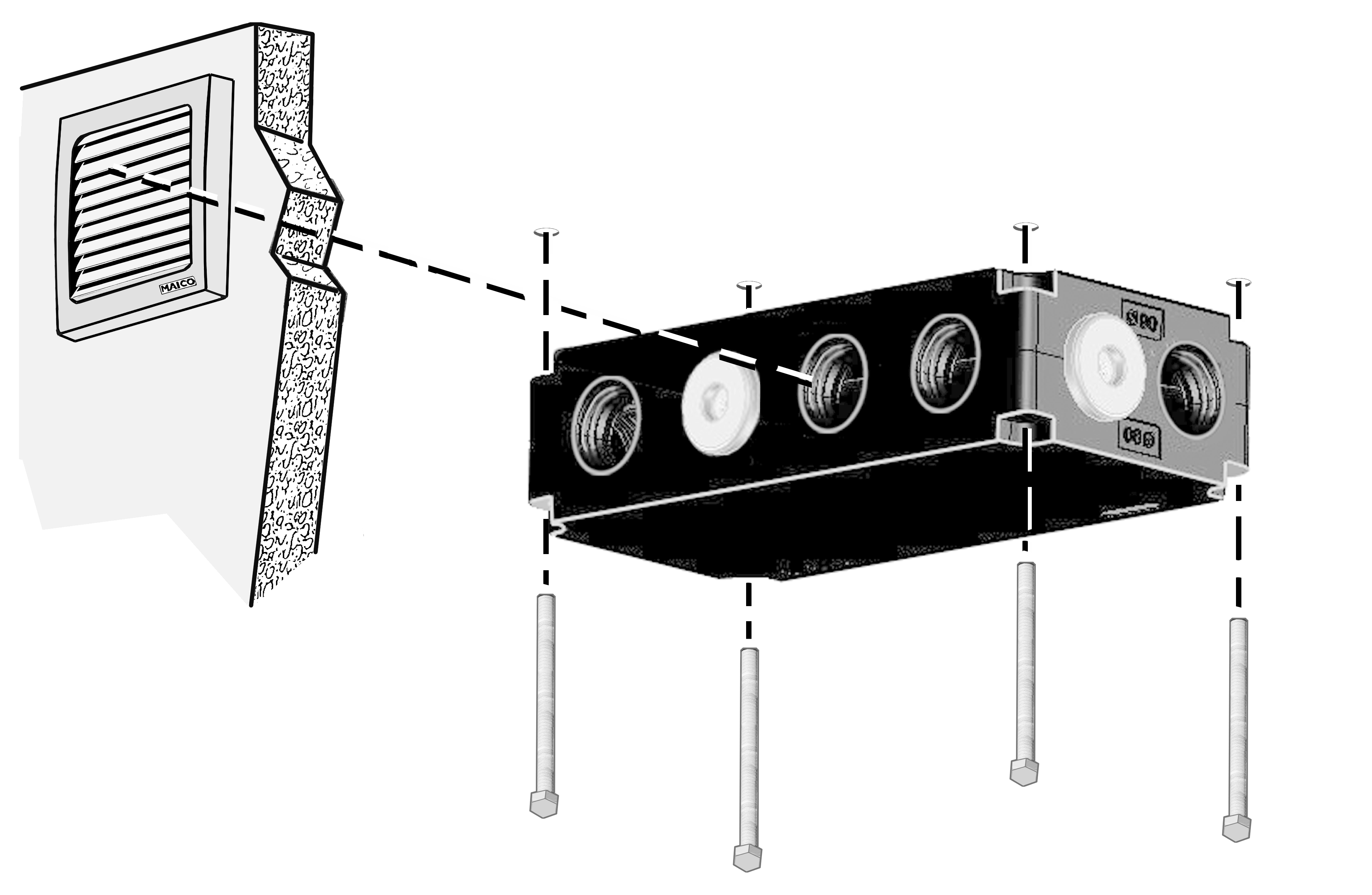

  5. Screw the air distributor to the wall/ceiling/bracket (provide suitable fastening material on site).
    Ensure assembly without distortion.

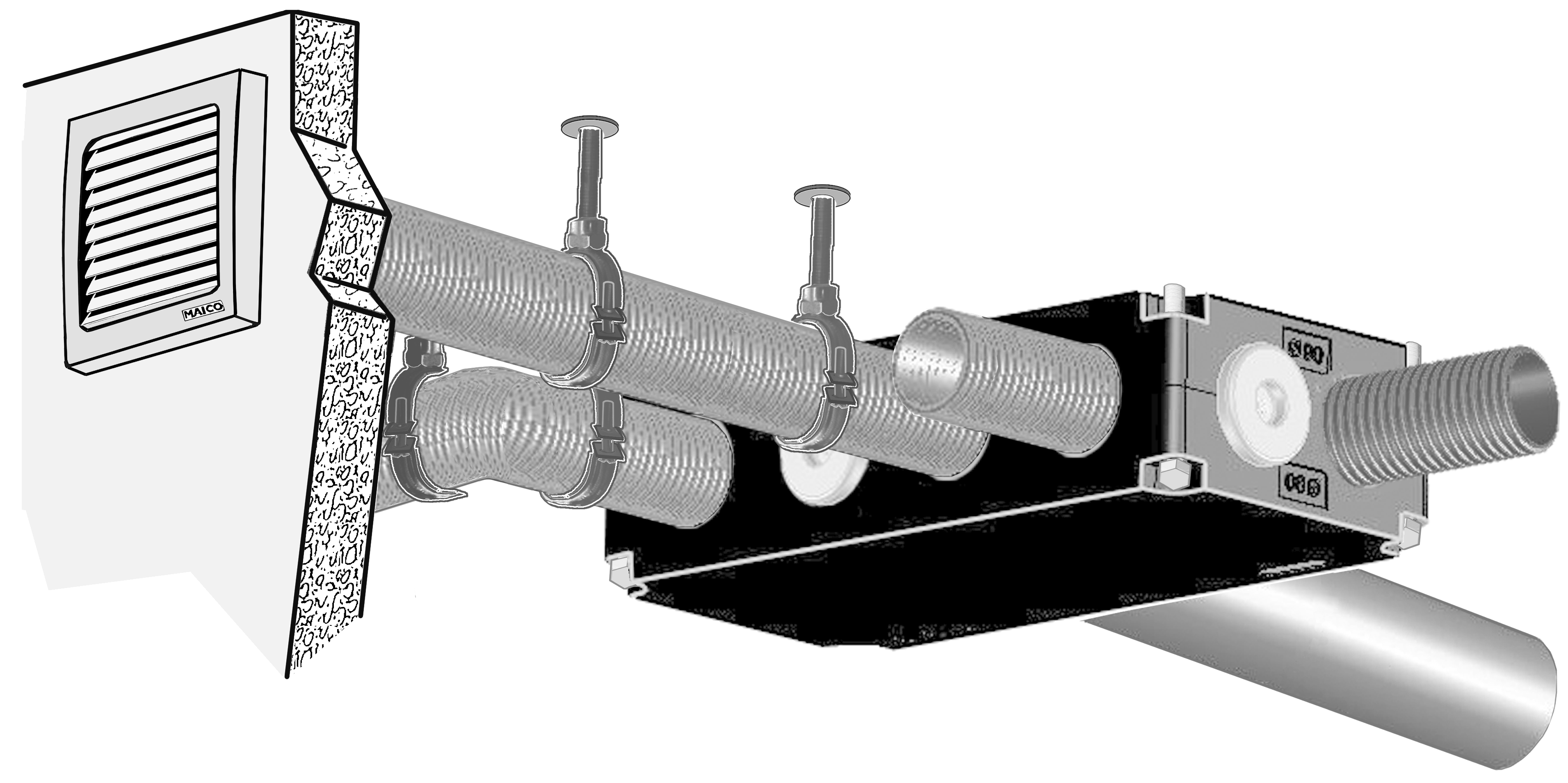

  7. Insert the flexible ducts of the duct branch into the housing as far as they will go (audible clicking sound, 3 times each).

  9. Tightness not guaranteed with braced ventilation ducts!

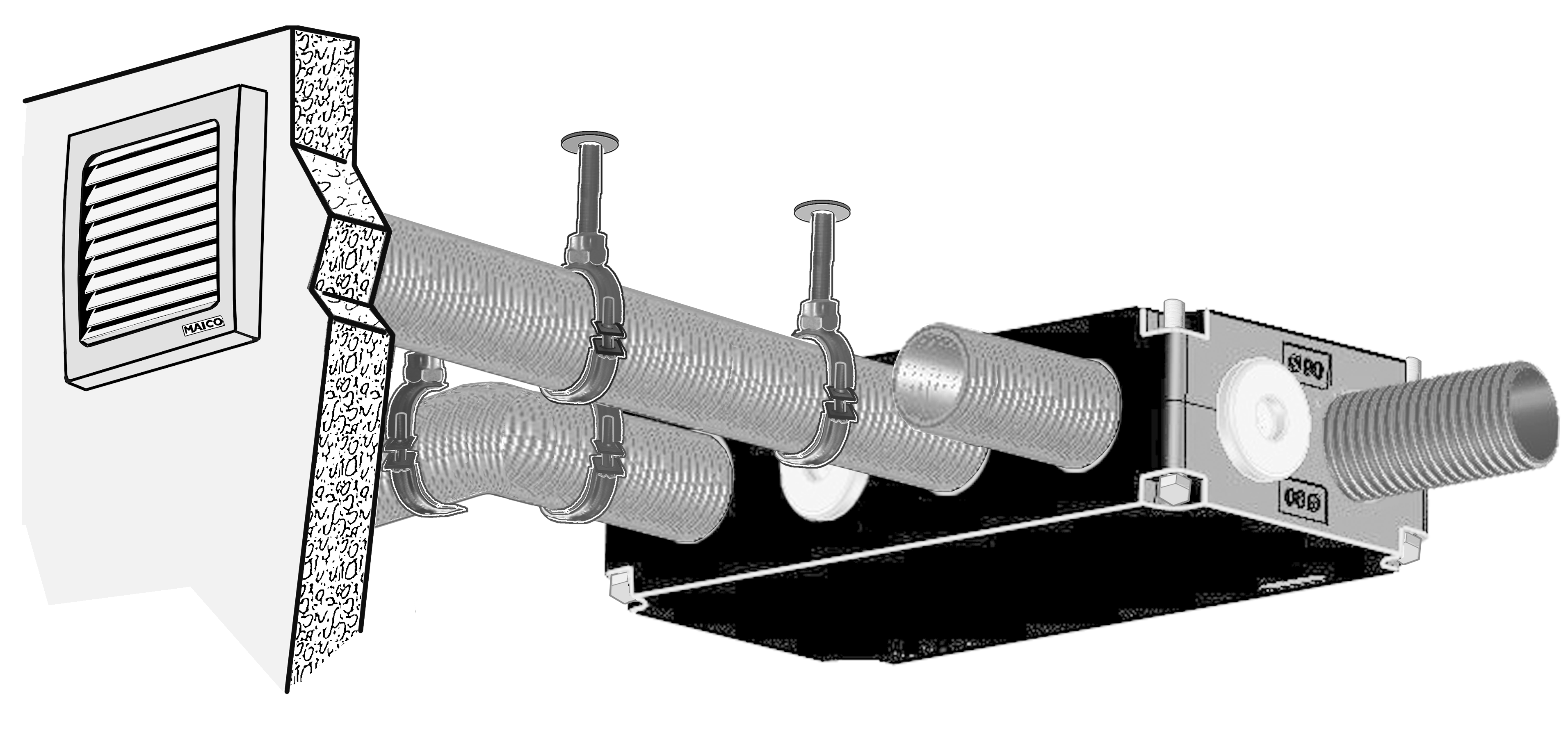

    1. Insert the ventilation ducts vertically into the housing as far as they will go.
    2. For bent flexible ducts, attach the mounting clamp close to the housing. Only bend the flexible duct after the mounting clamp.
    3. Insert the flexible duct into the mounting clamp and fasten.

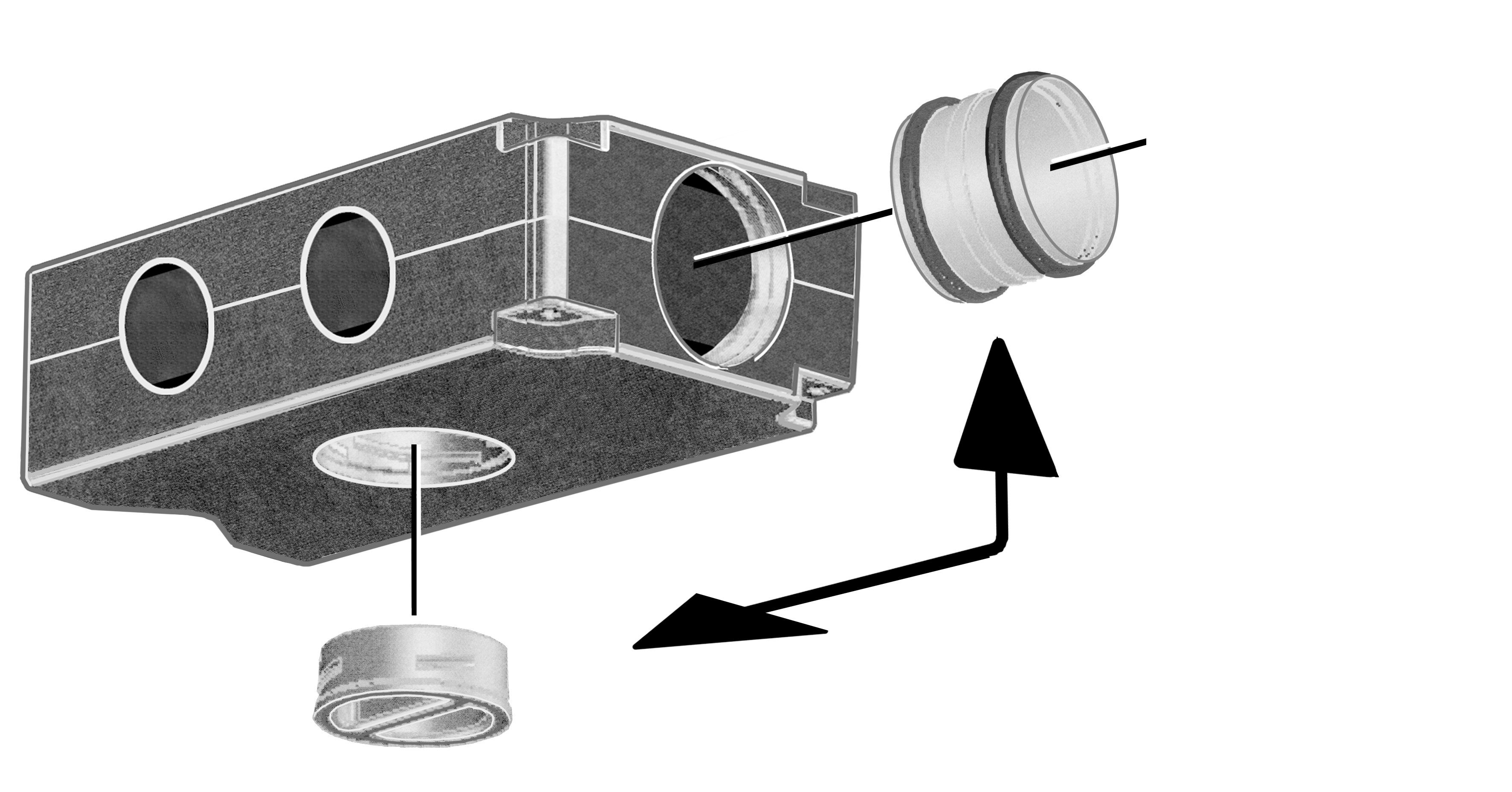

  11. Close unused air distributor openings with the supplied sealing plugs [6].

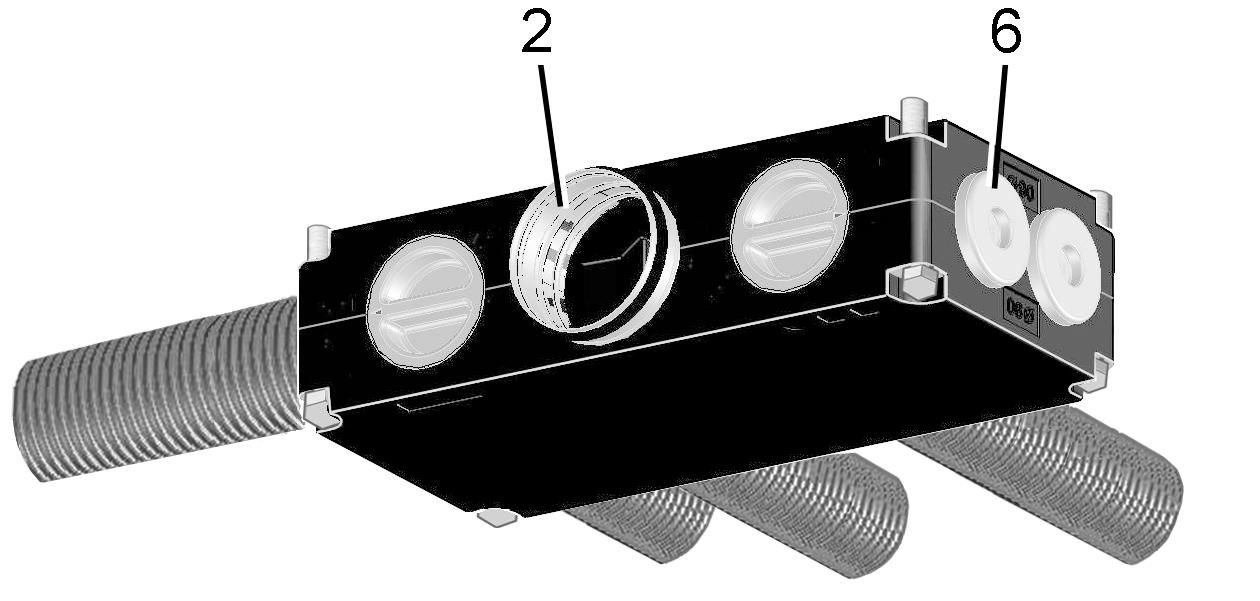

  13. Push the DN 160 folded spiral-seams duct onto the plug connector [2].
