Installation

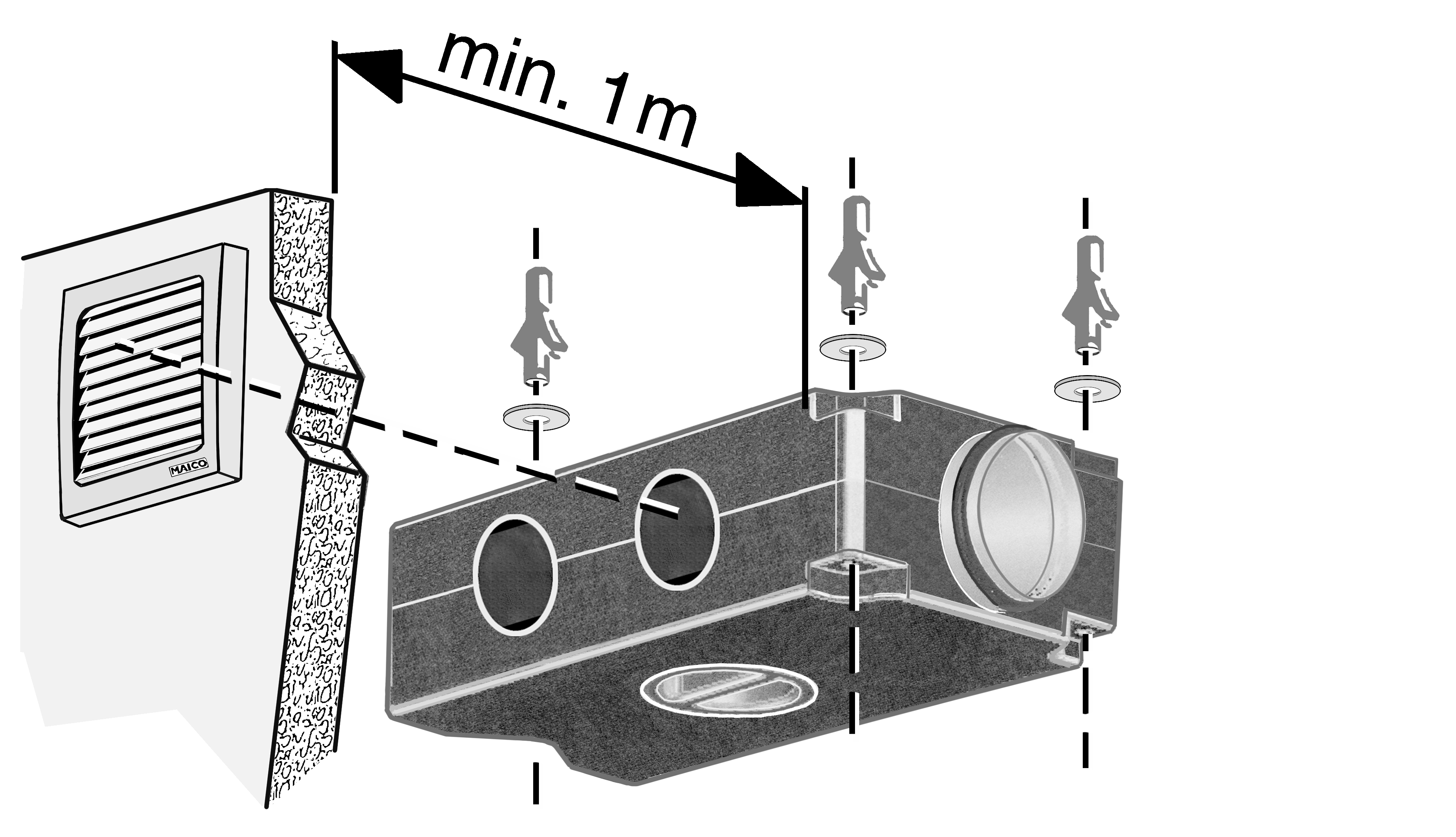

  1. Mark the position of the 3 holes.
  2. Drill the holes. Insert dowel.

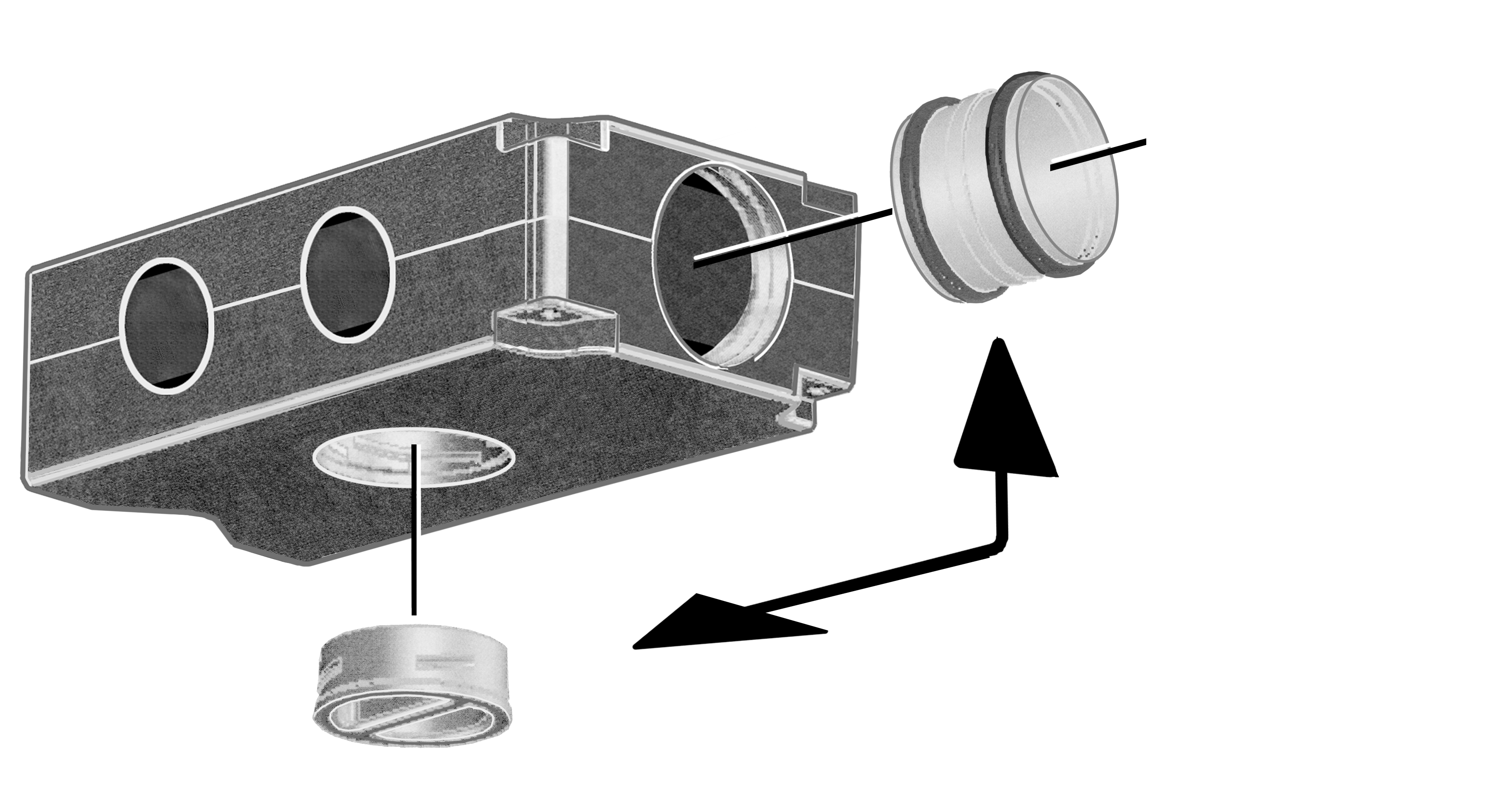

  4. Remove the sealing plug from the air distributor.
    These are located in the housing during transport.
  5. The plug connector is fitted at the front on delivery. Alternatively, insert the plug connector into the top or bottom of the housing, depending on the installation situation.

Connection variant, front = Standard. Pressure loss and increased flow noise when connected at the top or bottom.

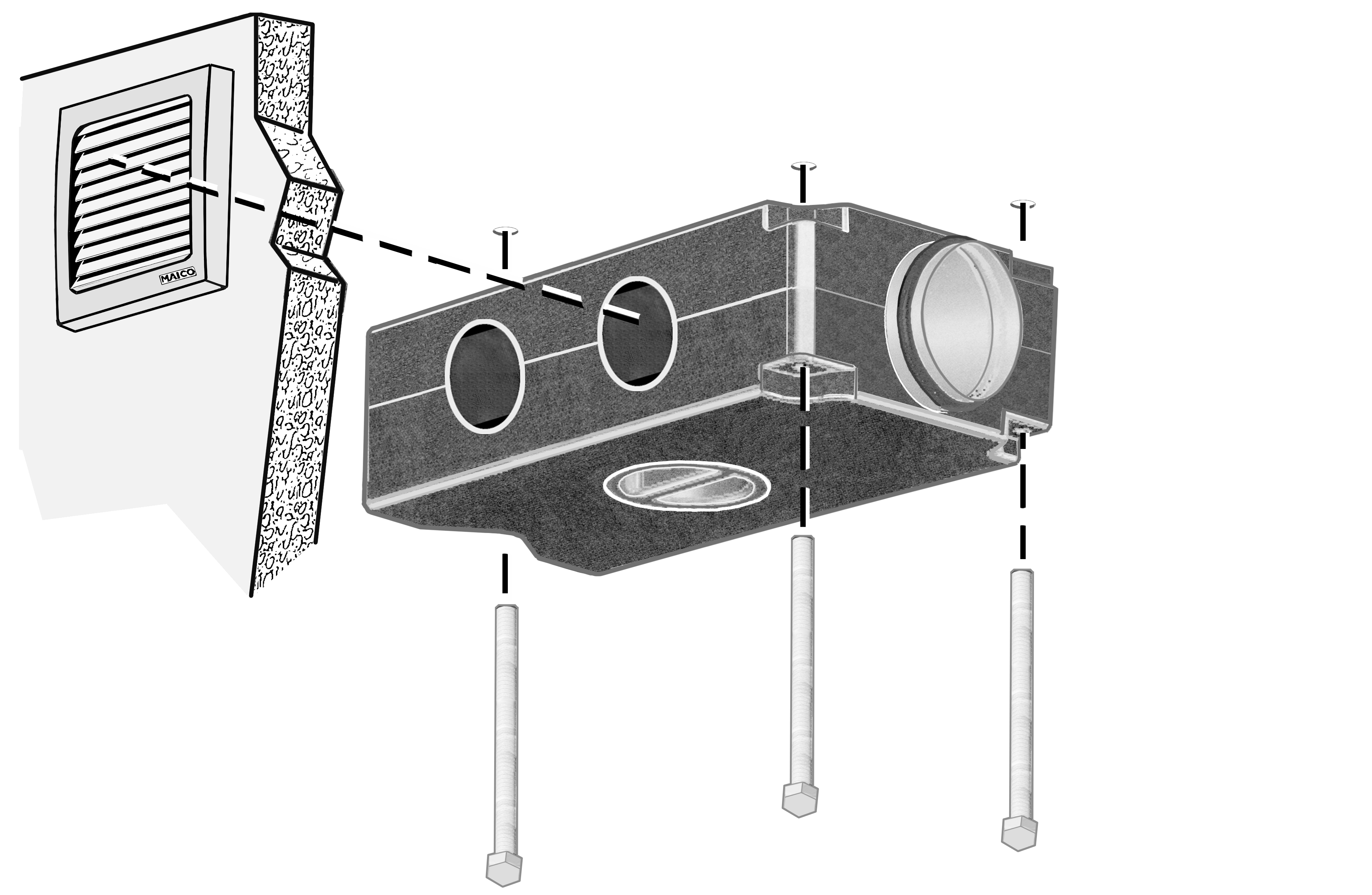

  1. Screw the air distributor to the wall/ceiling/bracket (provide suitable mounting material on site).

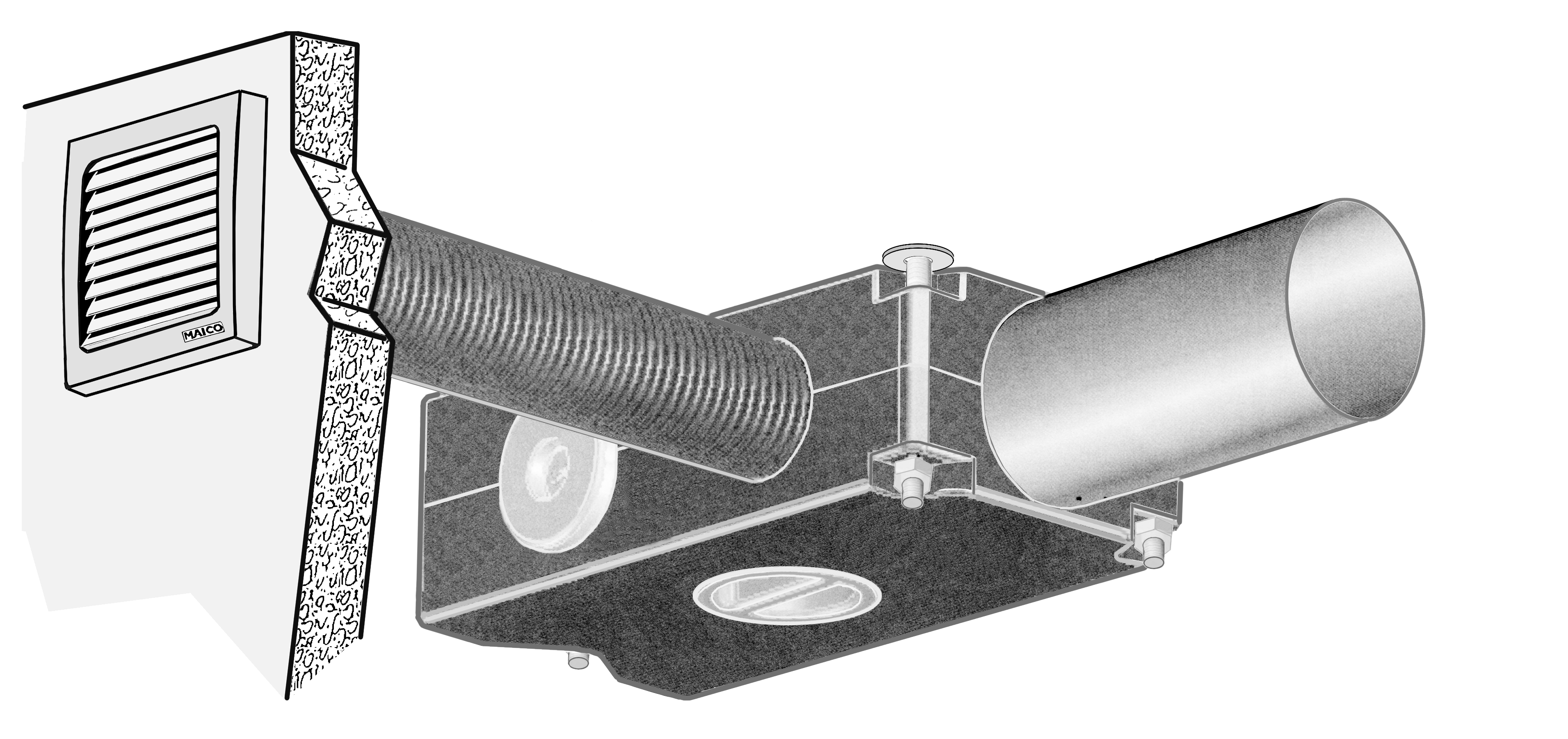

  3. Insert the flexible ducts of the duct branch into the housing as far as they will go.

  5. Tightness not guaranteed with braced ventilation ducts!

    1. Insert the ventilation ducts vertically into the housing as far as they will go.

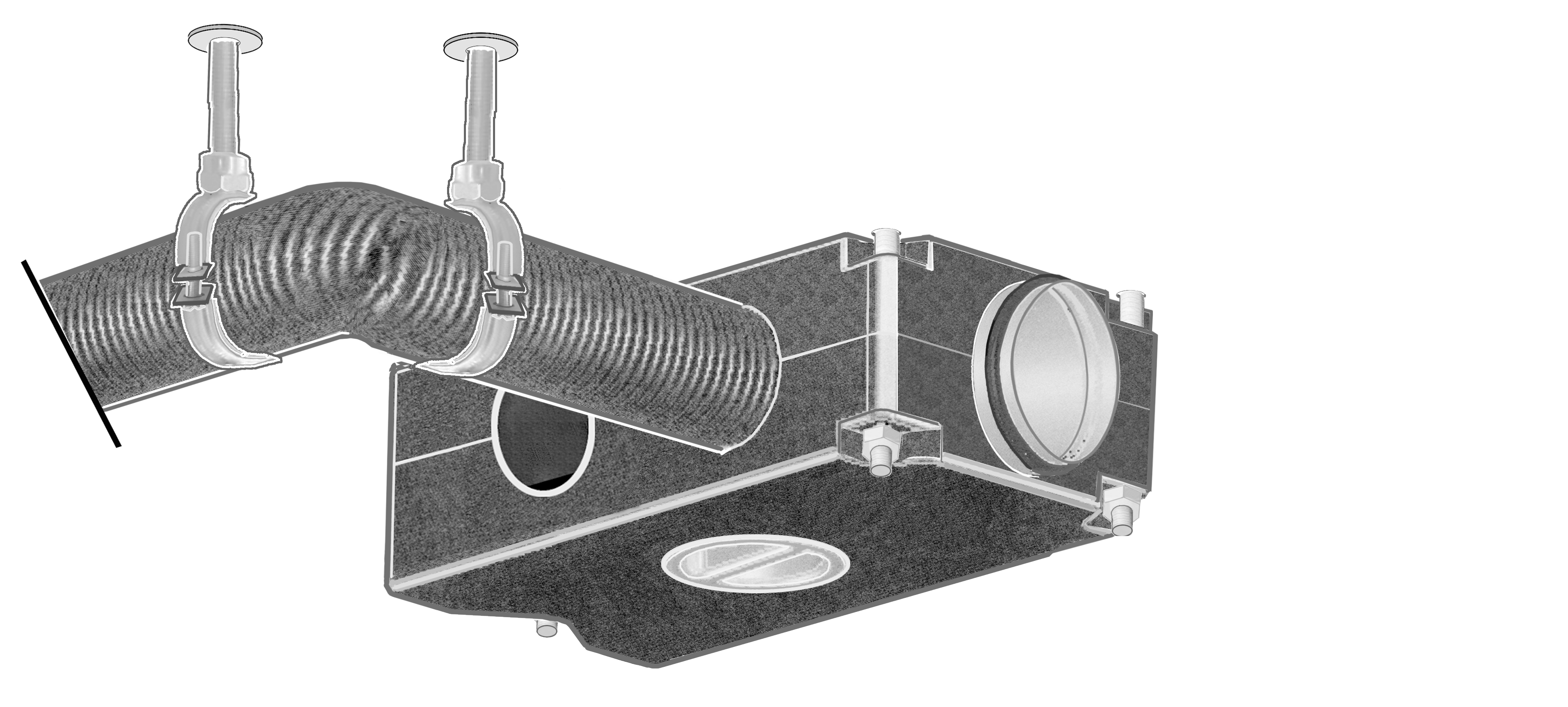

    2. For bent flexible ducts, attach the mounting clamp close to the housing. Only bend the flexible duct after the mounting clamp.
    3. Insert the flexible duct into the mounting clamp and fasten.
  7. Close unused air distributor openings with sealing plugs.
  8. Push the DN 125 folded spiral-seams duct onto the plug connector [3].
