PPB 30 AK

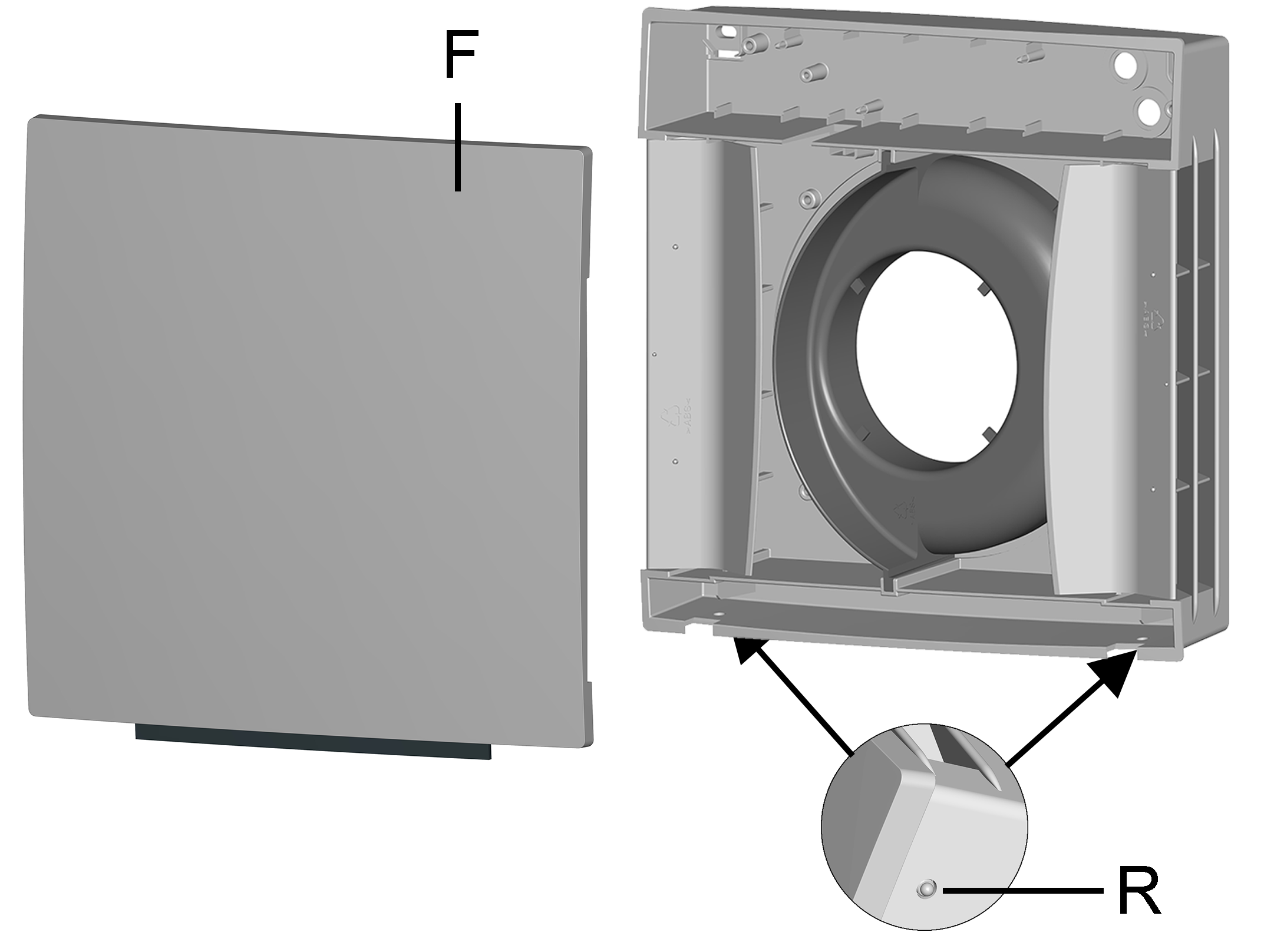

NOTICE: Lack of air if the front cover insulating mat does not lie close. The insulating mat must lie flush/close to the housing edge.

DM

Insulating mat

F

Front cover

R

Locking lever

  1. Place the front cover onto the housing from above and swing it downwards. The front cover must audibly engage in the two locking levers at the bottom.
