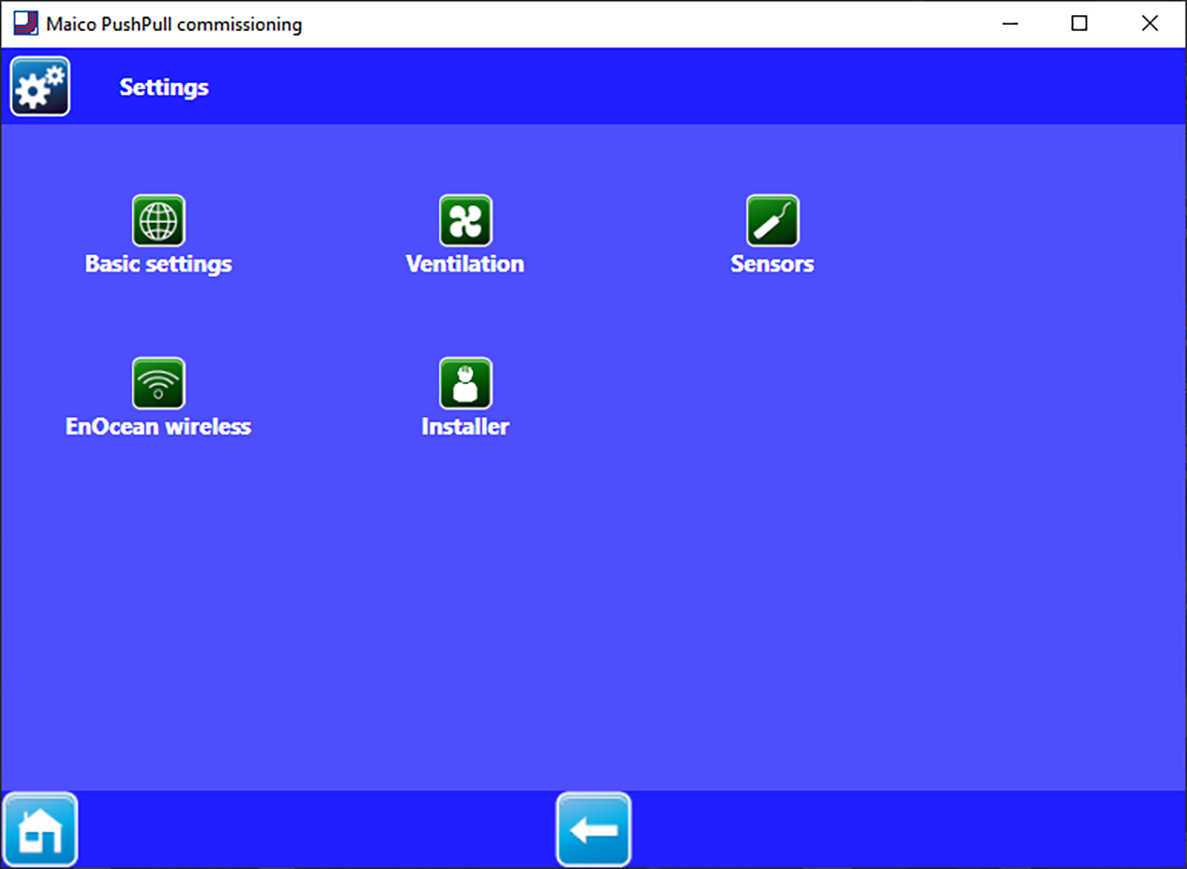

Settings menu (for operators)
Factory settings in bold
| Basic settings |
| Ventilation |
| Sensors |
| EnOcean wireless |
| Installer |

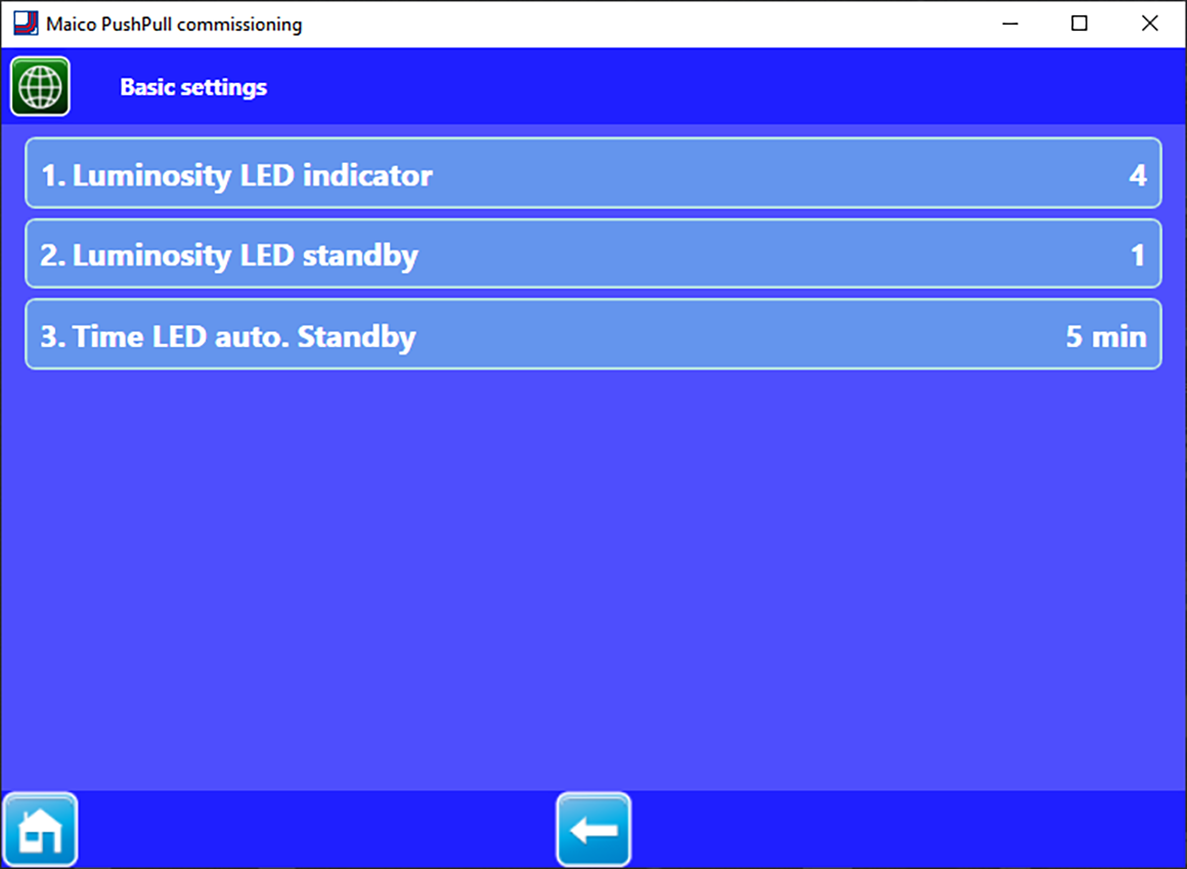

Basic settings
Parameters | Setting value |
|---|---|
Luminosity of LED indicator | 2, 3, 4, 5 |
Luminosity of LED standby | 0, 1, 2 |
Time LED auto. Standby | 0 ... 3 ... 6 minutes |

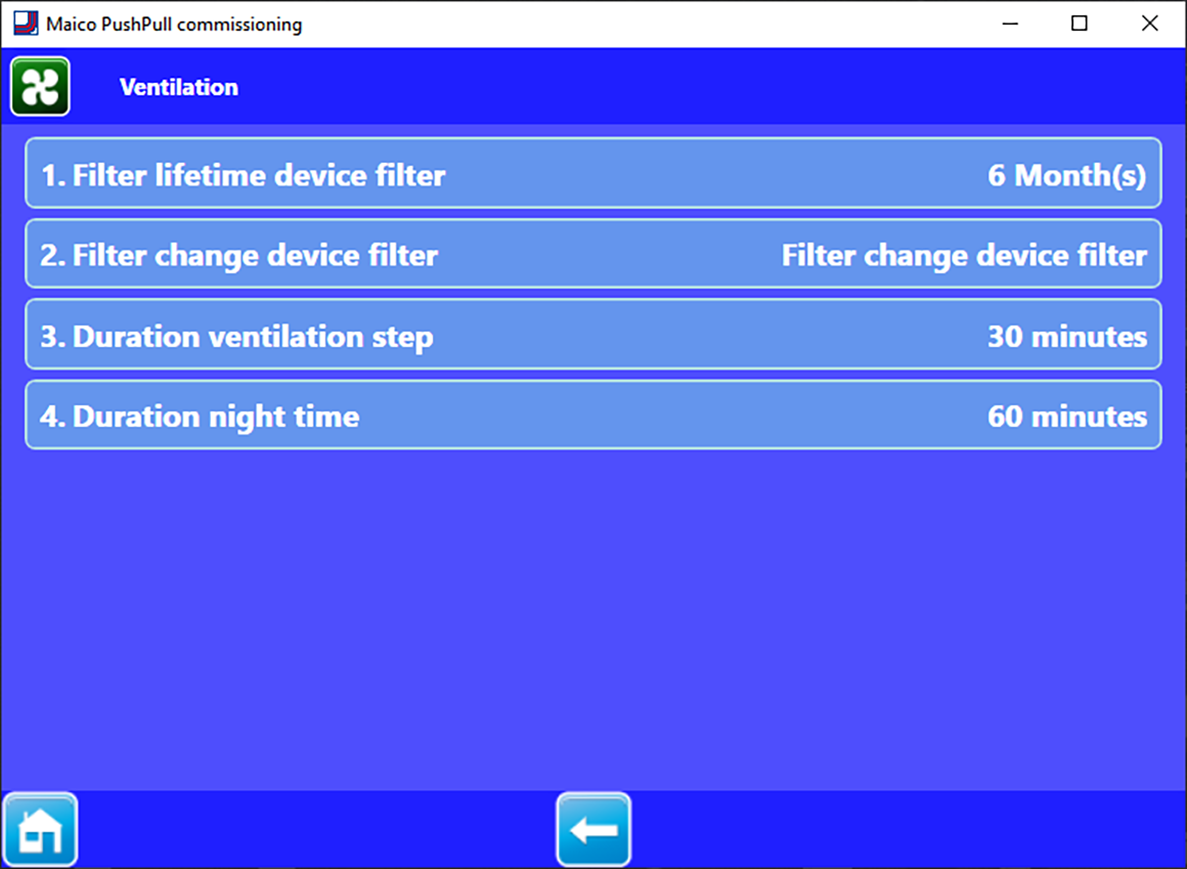

Ventilation
Parameters | Setting value |
|---|---|
Filter service life, device filter | 1 ... 6 ... 8 months |
Filter change, device filter: Acknowledgement | changed, not changed |
Duration of ventilation level 5 (intermittent ventilation) | 5 ... 30 ... 90 minutes |
Duration of night time level 0 (sleep mode) | 15 ... 60 ... 120 minutes |

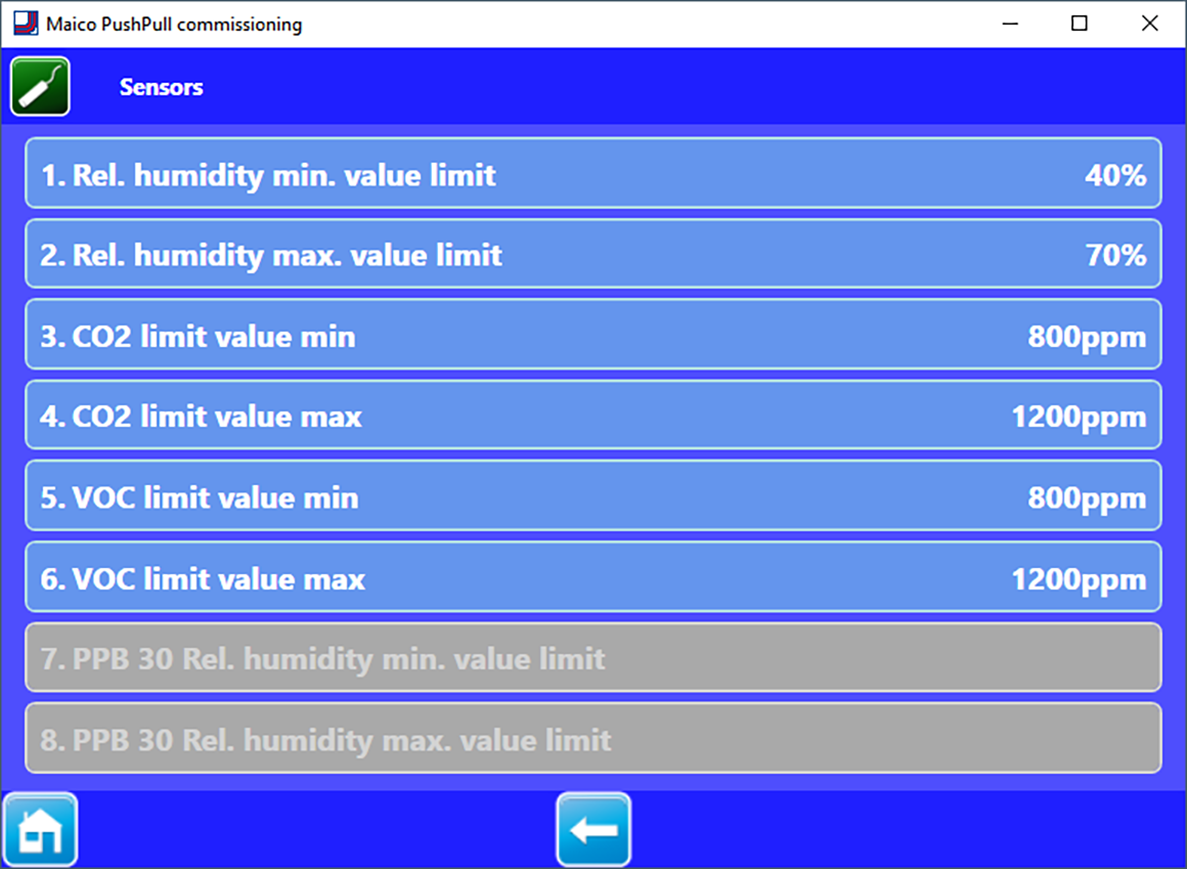

Sensors
Parameters | Setting value |
|---|---|
Relative humidity limit value min. (HPV) | 35 ... 35 ... 50 % r. h. |
Relative humidity limit value max. (IV) | 55 ... 60 ... 70 % r. h. |
CO2 limit value min. | 500 ... 800 ... 900 ppm |
CO2 limit value max. | 1000 ... 1200 ... 1500 ppm |
VOC limit value min. | 500 ... 800 ... 900 ppm |
VOC limit value max. | 1000 ... 1200 ... 1500 ppm |
PPB 30 K relative humidity limit value min. (HPV) | 35 ... 40 ... 45 % r. h. |
PPB 30 K relative humidity limit value max. (IV) | 50 ... 70 ... 85 % r. h. |

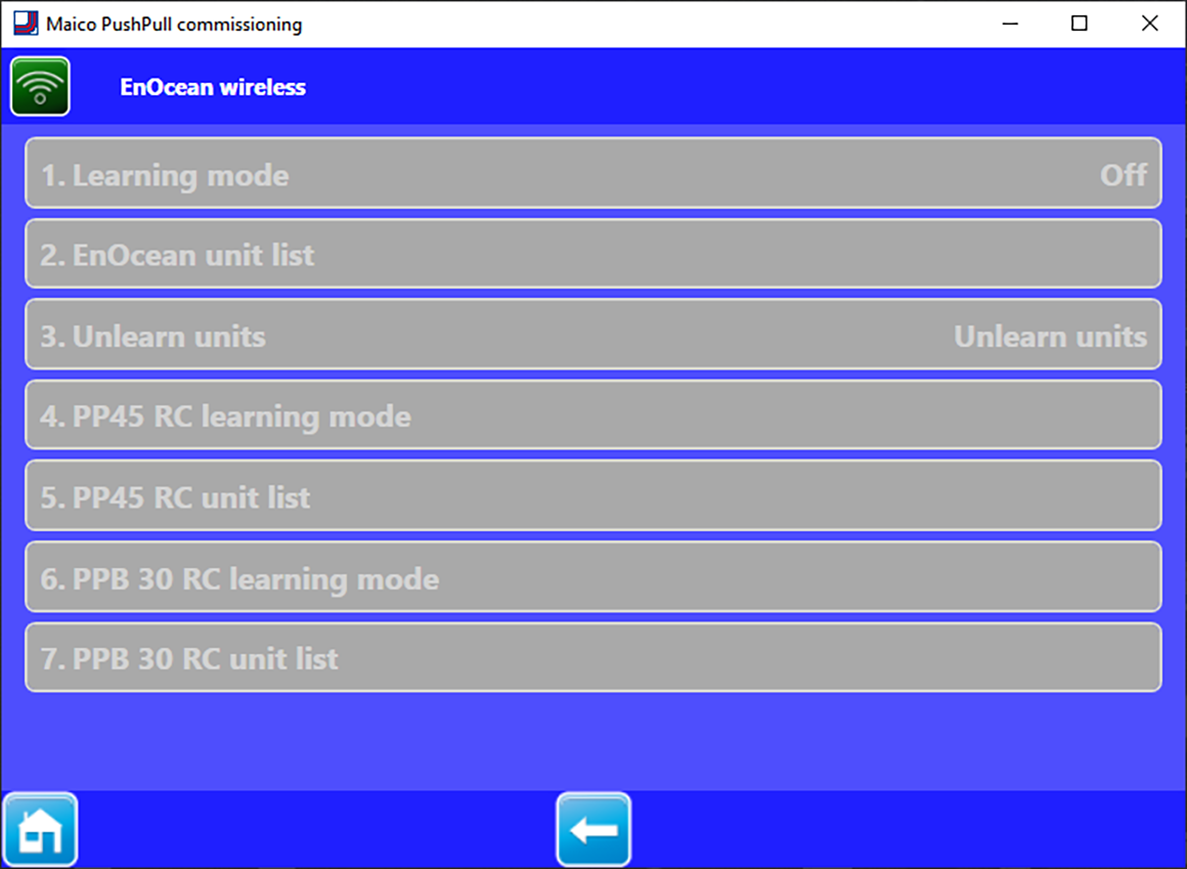

EnOcean wireless
Parameters | Setting value |
|---|---|
Teaching mode | off, on |
EnOcean device list | EEP list |
Teach-out units |
|
The PP 45 EO EnOcean module can only be used in combination with the RLS 45 K control. The activation of the PP 45 EO and the teaching-in and teaching-out of radio components and devices is only possible with the commissioning software.
