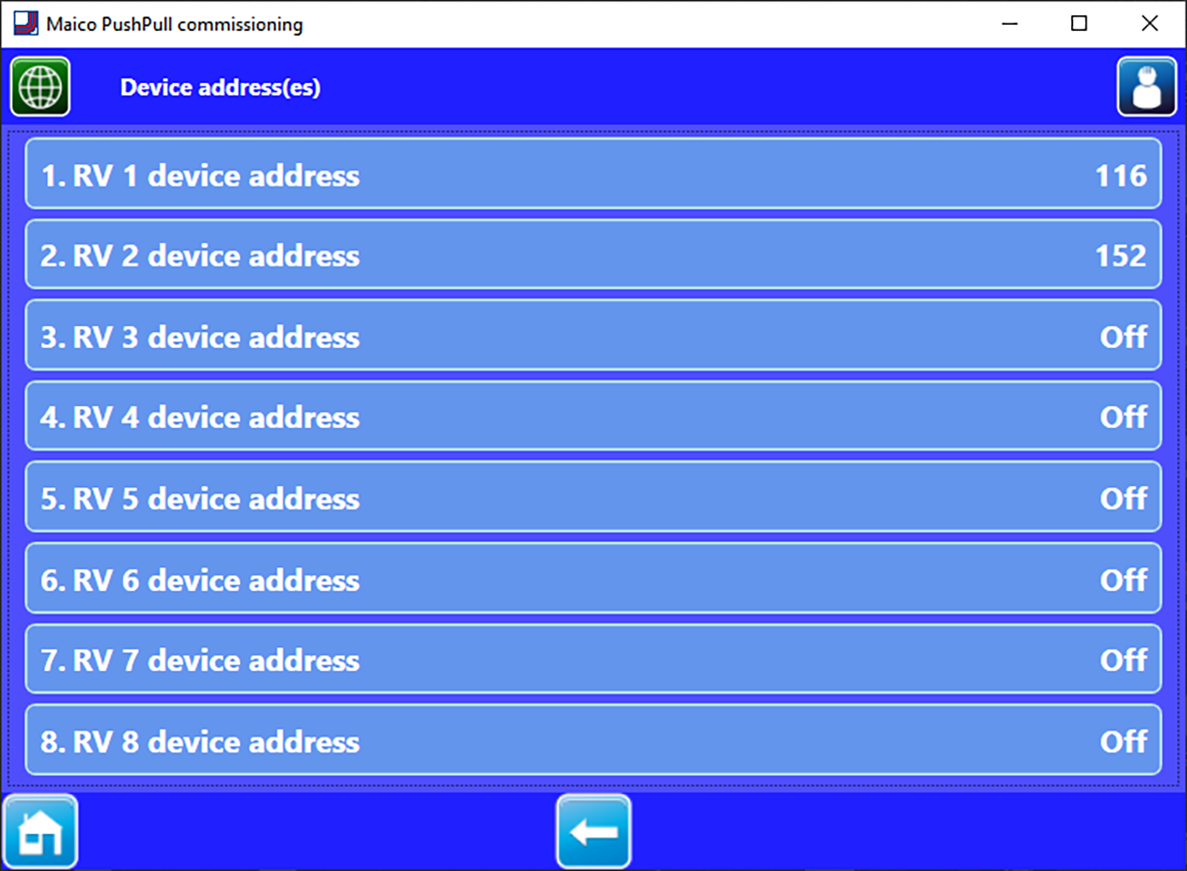

Device addresses

Menu for manually entering or changing the device addresses. New units can be added or removed.

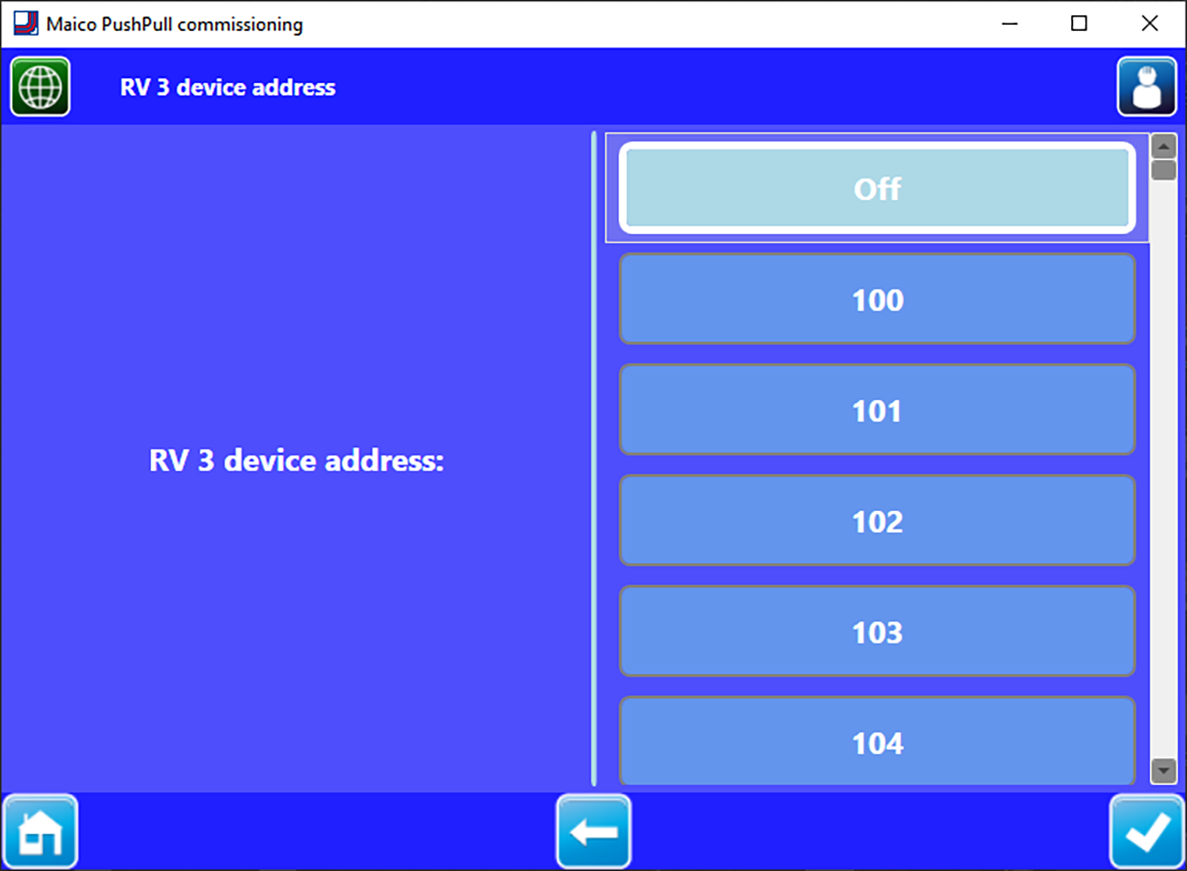

After selecting a menu line, the associated device address can be overwritten with another one. This is required, for example, for a manual configuration for mixed systems.

To do this, the device address (3-digit number) on the ventilation device must be selected from the list of 150 bus addresses and confirmed. The addresses must match and must not be used more than once.

A successful address configuration is confirmed with Executed. If the address configuration fails, the message The address is already assigned appears.
