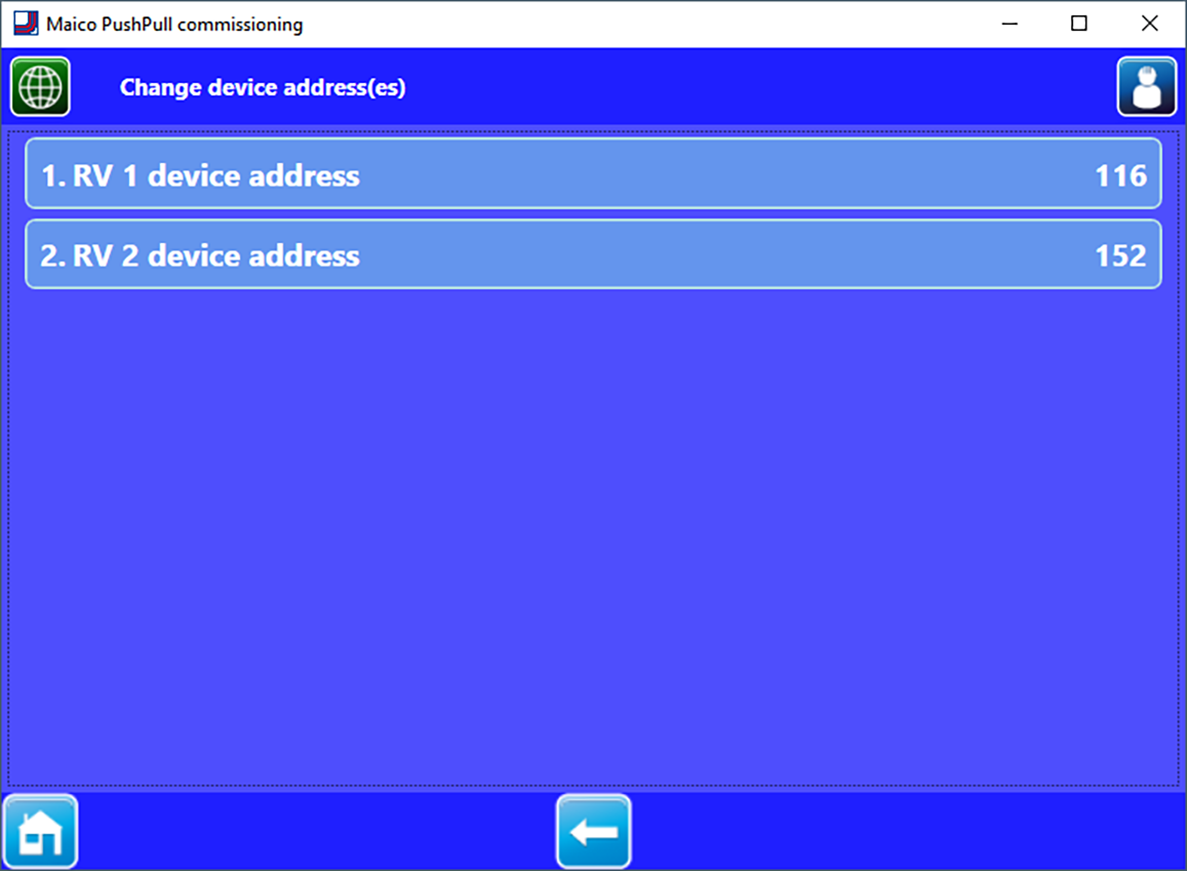

Changing device address

The device addresses are assigned consecutively at the factory. This means that no address occurs more than once per delivered pallet of ventilation devices.

However, if there are 2 ventilation devices with the same device address in a system, one of the two addresses must be changed manually.

To do this, disconnect one of the two ventilation devices from the RS 485 bus and reconfigure the other devices with a different device address.

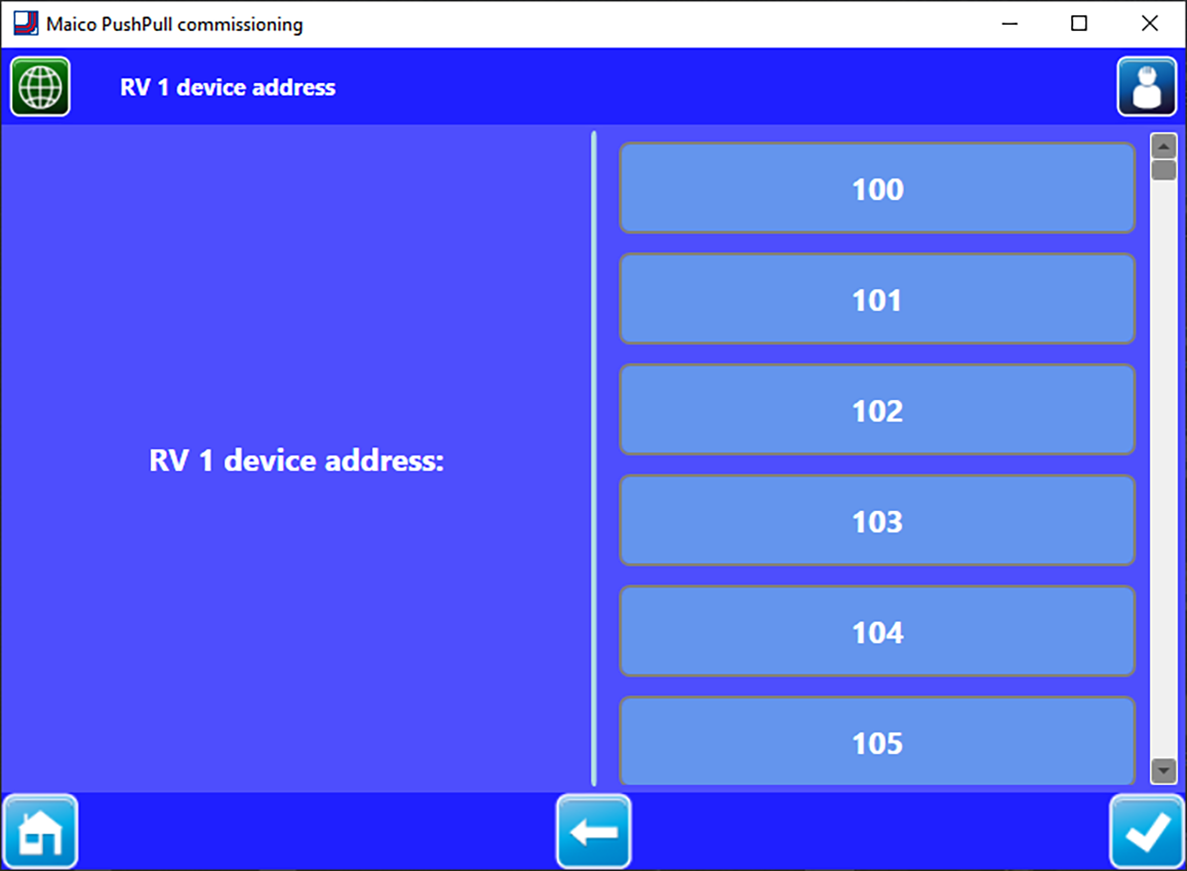

The new device address is checked.
If the check is successful, Executed appears.

Then reconnect the disconnected device to the bus and manually reassign both devices, see chapter Assignment.
