Note the following when selecting the installation location
Select a suitable installation location for parapet or soffit installation.
- ATTENTION: Damage to the unit. Always install the mounting sleeve load-free and do not apply any loads to the mounting sleeve. When installing the parapet wall never stand on the mounting sleeve to avoid damage. Recommendation: Protect the mounting sleeve with a wooden plank until the window sill is installed. If a window sill is installed, it distributes the load.
- ATTENTION: Damage to the unit. No fixing points are permitted in the area of the mounting sleeve. Then, final installation of the ventilation unit is not possible.
- ATTENTION: Damage to the unit.
Do not place half starting stones on the mounting sleeve. - When installing the soffit, to transfer the load, lay the bricks over the mounting sleeve in a semi-offset position.
- Do not install the mounting sleeve in the area of structural elements with vertical centre posts. There may be statically loaded areas in the centre parapet area of the wall opening.

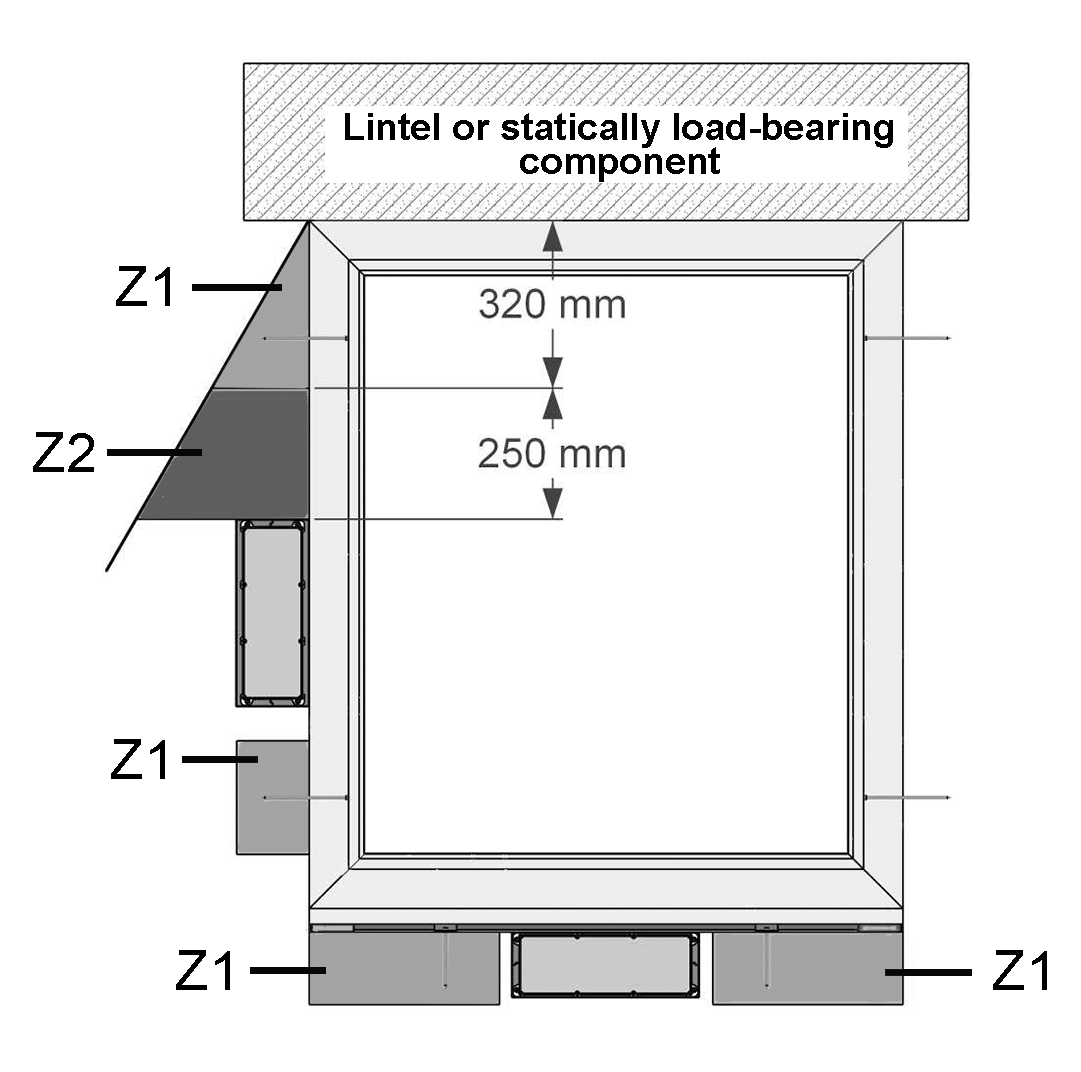

Impermissible installation location for the parapet wall and soffit variants.
When selecting the installation location, observe the load triangle and the impermissible installation positions (marked red/blue).
Z1 zone 1 | impermissible installation position |
Z2 zone 2 | safety zone |
Installation positions not permitted for the mounting sleeve:
- below lintels
- below other statically load-bearing components
- in areas with static loads
- in areas that are required for fastening a building element (window/door)
- below statically loaded areas in the safety zone (zone 2)
