Installation of WS 300 Flat on ceiling or wall

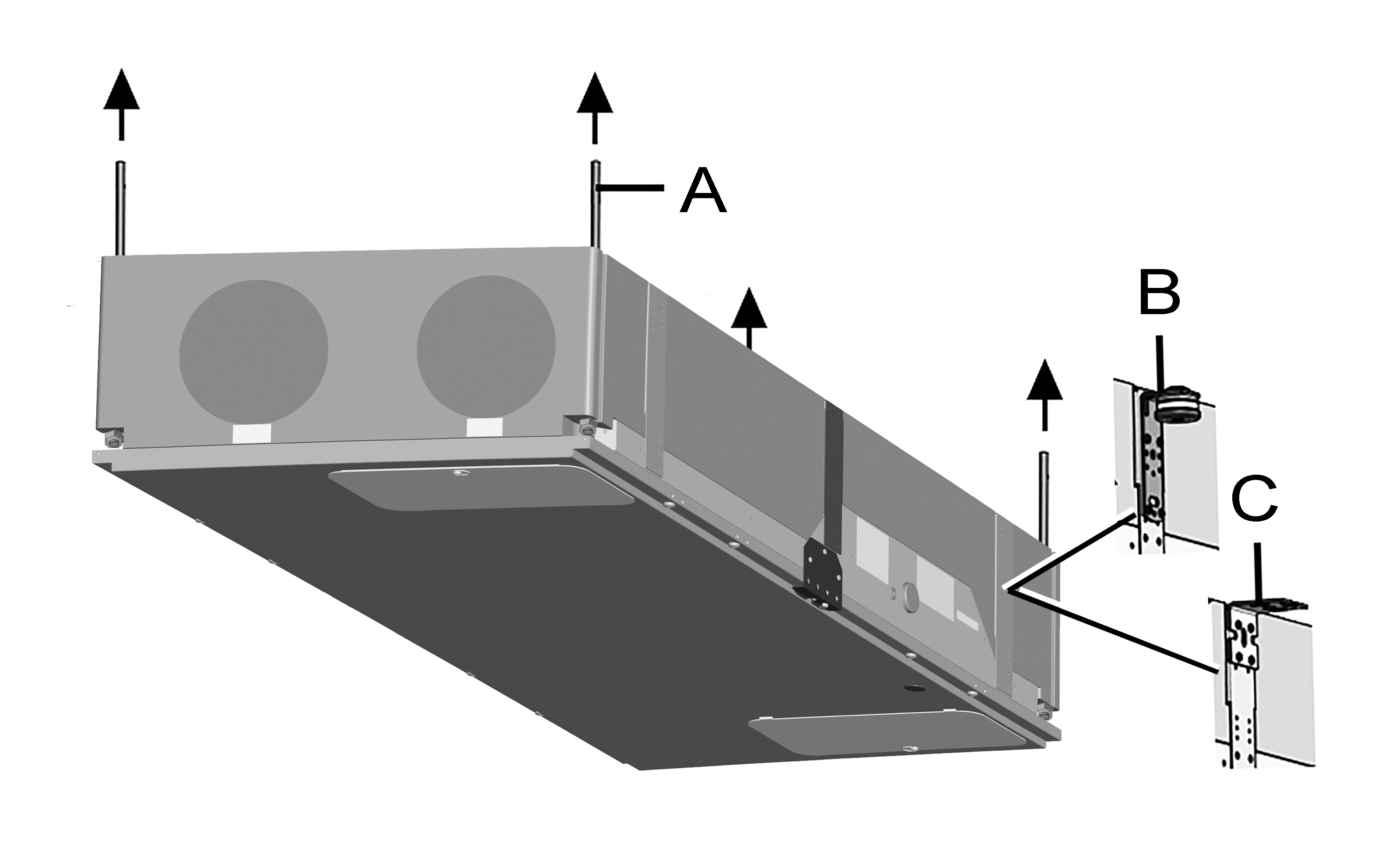

Mounting variants [A], [B] or [C]

A

Threaded pin

B

Ceiling bracket with damping element

C

Universal fixing bracket

  1. Firmly screw down ventilation unit to ceiling or wall with appropriate mounting material (4 items each). Mounting material is to be provided by the customer. Note the unit weight of 50 kg. Observe accident prevention regulations.

[A] Ceiling mounting with threaded pins

  1. Mount threaded rods on the ceiling.
  2. Fit ventilation unit and secure to prevent it from falling.
  3. Fit air filter, heat exchanger and front cover. You MUST use the set of installation aids for the front cover to prevent the cover from falling off.

[B] Mounting using ceiling brackets with damping element

  1. Fit the 4 ceiling brackets at the side of the housing plates of the ventilation unit as shown.
  2. Firmly screw down ventilation unit to the ceiling at the ceiling brackets using appropriate mounting material.
  3. Fit air filter, heat exchanger and front cover. You MUST use the set of installation aids for the front cover to prevent the cover from falling off.

[C] Universal fixing brackets (wall, ceiling)

  1. Fit the 4 universal fixing brackets at the side of the housing plates of the ventilation unit as shown.
  2. Firmly screw down ventilation unit to the ceiling/wall with appropriate mounting material.
  3. Fit air filter, heat exchanger and front cover. You MUST use the set of installation aids for the front cover to prevent the cover from falling off.
