AFR

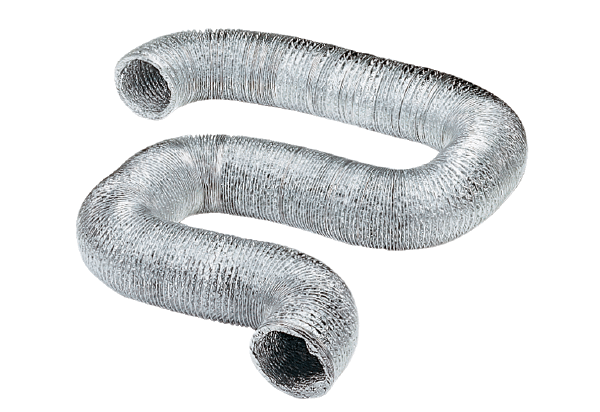

Flexible five-layered, grooved aluminium duct, to be used as connection to the main duct

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

Article	AFR 75	AFR 80	AFR 100	AFR 125	AFR 150
	Produktdetails	Produktdetails	Produktdetails	Produktdetails	Produktdetails
Notes

Article

AFR 75

Flexible, five-layered, grooved aluminium duct DN 75, to be used as connection to the main duct

AFR 80

Flexible, five-layer grooved aluminium duct DN 80, to be used as connection to the main duct

AFR 100

Flexible, five-layer grooved aluminium duct DN 100, to be used as connection to the main duct

AFR 125

Flexible, five-layer grooved aluminium duct DN 125, to be used as connection to the main duct

AFR 150

Flexible, five-layer grooved aluminium duct DN 150, to be used as connection to the main duct

Article	AFR 75	AFR 80	AFR 100	AFR 125	AFR 150
	Produktdetails	Produktdetails	Produktdetails	Produktdetails	Produktdetails

Product type	Flexible aluminium duct	Flexible aluminium duct	Flexible aluminium duct	Flexible aluminium duct	Flexible aluminium duct
Article number:	0055.0088	0055.0092	0055.0090	0055.0091	0055.0093
Max. operating pressure	2.500 Pa	2.500 Pa	2.500 Pa	2.500 Pa	2.500 Pa
Type of installation	Recessed-mounted	Recessed-mounted	Recessed-mounted	Recessed-mounted	Recessed-mounted
Material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Weight	0,4 kg	0,4 kg	0,9 kg	1,1 kg	1,3 kg
Suitable for nominal size	75 mm	80 mm	100 mm	125 mm	150 mm
Length	3 m	3 m	10 m	10 m	10 m
Width	3.000 mm	3.000 mm	10.000 mm	10.000 mm	10.000 mm
Height	80 mm	90 mm	115 mm	135 mm	155 mm
Depth	80 mm	90 mm	115 mm	135 mm	155 mm
Ambient temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Packing unit	1 piece	1 piece	1 piece	1 piece	1 piece
Range	B	B	C	C	C
GTIN (EAN)	4012799550884	4012799550921	4012799550907	4012799550914	4012799550938

* Blue markings show the differences between the products.
