Mounting support


Article number: 0093.0277
Manufacturer: MAICO
Mounting support for ER GH and ER-UP.. recessed-mounted housing

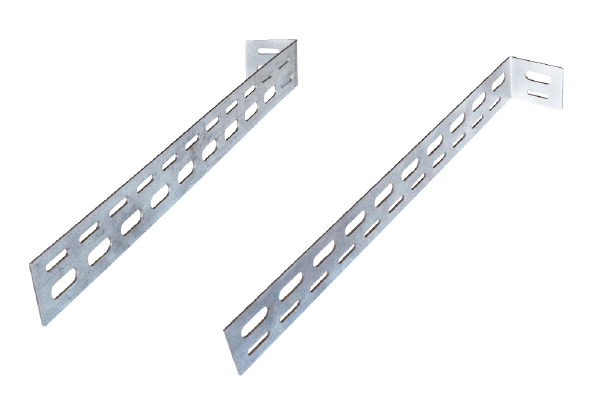

ER-UPM IM0018595.PNG Mounting support for ER GH and ER-UP.. recessed-mounted housing

Characteristic curve

Dimensioned drawing

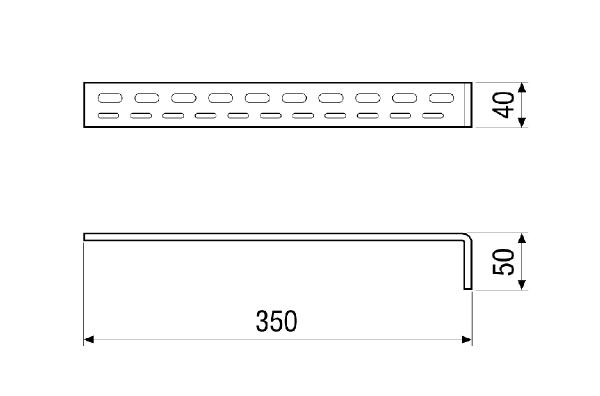

ER-UPM - Dimensioned drawing [mm]

  • ER-UPM IM0018599.PNG Mounting support for ER GH and ER-UP.. recessed-mounted housing

Technical data

ER-UPM - Technical data

Article ER-UPM
Material Sheet steel, galvanised
Weight 0,4 kg
Width 350 mm
Height 45 mm
Depth 55 mm
Packing unit 1 piece
Range B
GTIN (EAN) 4012799932772
Article number 0093.0277

Accessories of

ER-UPM - Accessories of

is a special accessory of

Product typeNameArt. No.Price*(EUR)Action
Recessed-mounted housingER GH0084.0350 on request
  • On the notes
Recessed-mounted housingER GH-VWRNew development0093.1564 on request
  • On the notes

Product description



short description

Mounting support for ER GH and ER-UP.. recessed-mounted housing

Product description

  • Mounting support for installation of ER-GH and ER-UP.. recess-mounted housing on walls, ceilings or in shafts.
  • With 2 different slots (5mm / 8mm) for accurately adjusting the fan housing using a hammer head screw or mounting screws.
  • Packing unit:
  • 2 L-shaped angle plates
  • 4 mounting screws.
