Internal grille, adjustable

AZE 100 P

No longer available for delivery
Article number: 0059.0962
Manufacturer: MAICO
Adjustable supply and exhaust air grille with PP120 filter, DN 100

Product data sheet
AZE 100 P IM0009857.PNG Adjustable supply and exhaust air grille with PP120 filter, DN 100

Characteristic curve

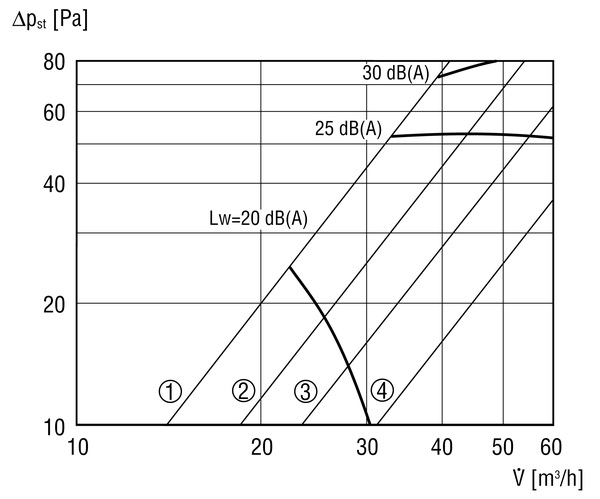

AZE 100 P - Characteristic curve AZE 100 P - Exhaust air pressure loss

  1. free opening 90°
  2. free opening 135°
  3. free opening 180°
  4. free opening 270°

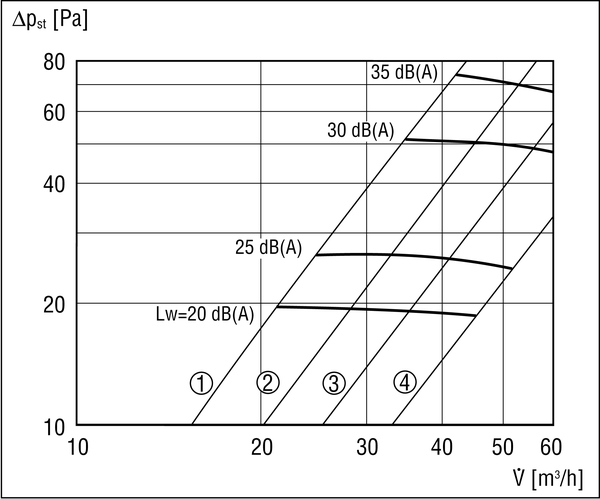

AZE 100 P - Characteristic curve AZE 100 P - Supply air pressure loss

  1. free opening 90°
  2. free opening 135°
  3. free opening 180°
  4. free opening 270°

Dimensioned drawing

AZE 100 P - Dimensioned drawing [mm]

Technical data

AZE 100 P - Technical data

Article AZE 100 P
Air direction Ventilation and air extraction
Installation Inside
Installation site Wall
Type of installation Surface-mounted
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,2 kg
Weight including packaging 0,166 kg
Filter class PPI 20
Suitable for nominal size 100 mm
Width 150 mm
Height 150 mm
Depth 51,5 mm
Width with packaging 150 mm
Height with packaging 50 mm
Depth with packaging 150 mm
Ambient temperature 60 °C
Packing unit 1 piece
Range K
GTIN (EAN) 4012799599623
Article number 0059.0962

Accessories / Accessories of

AZE 100 P - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Air filter, replacement AZP 0093.0929 on request
  • On the notes

is a general accessory of

Product description

Productdescription

AZE 100 P

short description

Adjustable supply and exhaust air grille with PP120 filter, DN 100

Product description

  • Hygiene grille for ventilation and air extraction.
  • Alternative to the disk valve.
  • Minimum pressure loss.
  • Covered filter keeps the duct clean.
  • AZE 100 P: can be washed.
  • Linear air flow control via internal valve disk.
  • Can be set quickly, easily and precisely.
  • Setting can be permanently fixed.
  • High-quality design for the domestic area.
  • Cover can be removed without tools for cleaning.
  • Sealing tape included in the scope of delivery.
  • AZE 100 accessories: ZRF.. spare air filter.
  • AZE 100 P accessories: AZP replacement air filter.

Table of contents

Wiring diagram

AZE 100 P - Wiring diagram

Predecessor - successor

AZE 100 P - Successor

Product type Name Art. No. Action
Exhaust and supply air valve AZV 100 0152.0087
  • On the notes
