Heat exchanger

WT 300

No longer available for delivery
Article number: 0152.0020
Manufacturer: MAICO
Heat exchanger in ventilation systems, DN 160

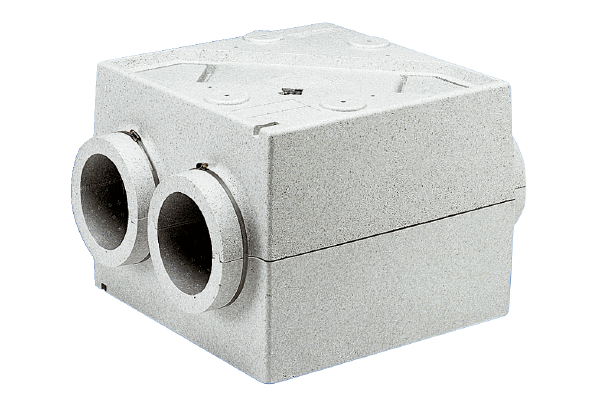

WT 300 IM0009858.PNG Heat exchanger in ventilation systems, DN 160

Characteristic curve

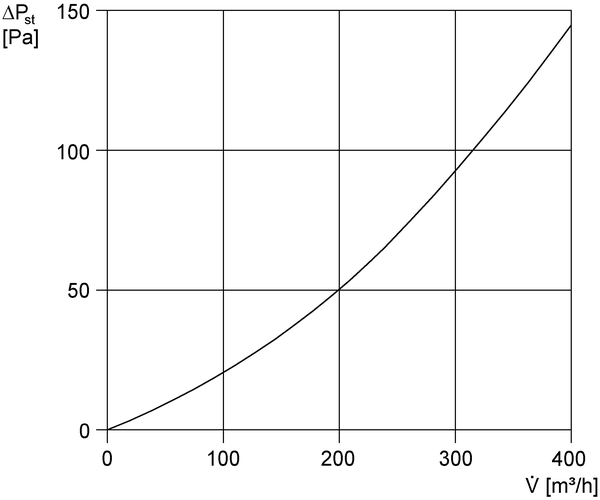

WT 300 - Characteristic curve Pressure losses

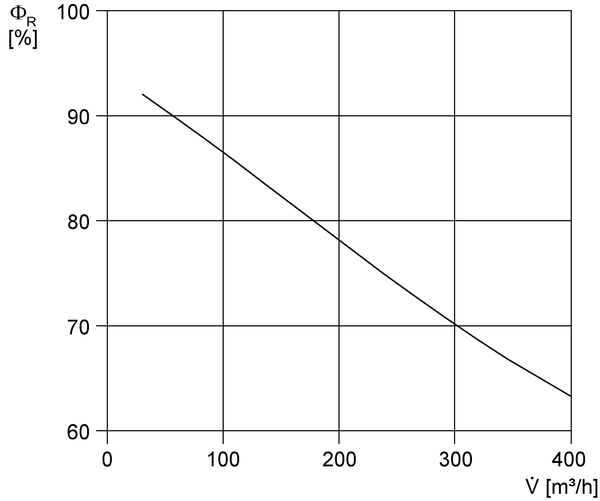

WT 300 - Characteristic curve Thermal heat recovery rate in concurrent with air volumes

Dimensioned drawing

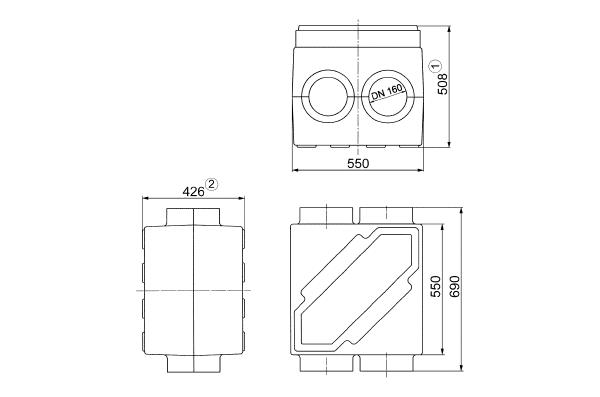

WT 300 - Dimensioned drawing [mm]

  1. With bypass
  2. Without bypass

Technical data

WT 300 - Technical data

Article WT 300
Installation site Channel
Material EPS
Weight 7,9 kg
Nominal size 160 mm
Width 550 mm
Height 508 mm
Depth 690 mm
Ambient temperature 40 °C
Heat exchanger construction type Cross flow
Packing unit 1 piece
Range D
GTIN (EAN) 4012799520207
Article number 0152.0020

Accessories / Accessories of

WT 300 - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Bypass for heat exchanger SK 300 WT Discontinued product 0152.0051 on request
  • On the notes

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Sound-insulated ventilation box ESR 12 S No longer available for delivery 0080.0227 on request
  • On the notes
Sound-insulated ventilation box ESR 16 S No longer available for delivery 0080.0228 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Sound-insulated ventilation box ESR 12/1 No longer available for delivery 0080.0281 on request
  • On the notes
Sound-insulated ventilation box ESR 16/1 No longer available for delivery 0080.0282 on request
  • On the notes

Product description

Productdescription

WT 300

short description

Heat exchanger in ventilation systems, DN 160

Product description

  • Heat exchanger for heat recovery in ventilation systems.
  • Can be combined with an additional bypass module for winter or summer operation.
  • With condensation drainage - diameter approx. 13 mm.

Safety instructions

  • Combination with MAICO TH 10 thermostat for frost protection is recommended.

Table of contents

Wiring diagram

WT 300 - Wiring diagram
