Axial wall fan

DZQ 30/4 B

Article number: 0083.0120
Manufacturer: MAICO
Axial wall fan with square wall plate, DN 300, three-phase AC
Application examples: Production facility, Commercial premises, Garage, Building container, Storage facility
DZQ 30/4 B IM0009977.PNG Axial wall fan with square wall plate, DN 300, three-phase AC
Back
  • On the notes
EZQ 30/6 B
EZS 30/6 B
EZQ 30/4 B
EZS 30/4 B
EZQ 30/2 B
EZS 30/2 B
DZQ 30/6 B
DZS 30/6 B
DZQ 30/4 B
DZS 30/4 B
DZQ 30/2 B
DZS 30/2 B
DZQ 30/84 B
DZS 30/84 B
DZQ 30/42 B
DZS 30/42 B

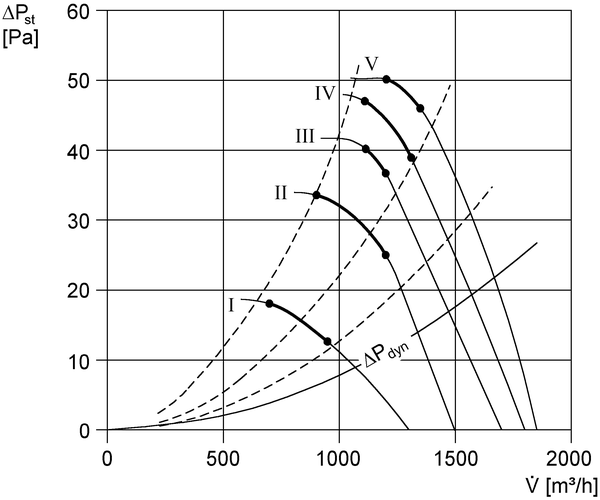

Characteristic curve

DZQ 30/4 B - Characteristic curve

  • DZQ 30/4 B IM0003134.PNG Axial wall fan with square wall plate, DN 300, three-phase AC

Dimensioned drawing

DZQ 30/4 B - Dimensioned drawing [mm]

  • DZQ 30/4 B IM0008242.PNG Axial wall fan with square wall plate, DN 300, three-phase AC
  1. Steel wall plate = EZQ/DZQ model
  2. Steel wall ring = EZS/DZS model

Technical data

DZQ 30/4 B - Technical data

Article DZQ 30/4 B
Model Square wall plate
Air flow volume 1.850 m³/h
Rotating speed 1.425 1/min
Impeller type axial
Speed controllable ✔
Reversing capacity ✔
Type of voltage Three-phase AC
Rated voltage 400 V
Frequency 50 Hz
Nominal output 85 W
Inom 0,31 A
Imax 0,35 A
Degree of protection IP 55
Insulation class B
Mains cable 7 x 1,5 mm²
Installation site Wall / Ceiling
Type of installation Surface-mounted
Installation position horizontal / vertical
Material Sheet steel, galvanised
Weight 7,8 kg
Nominal size 300 mm
Width 465 mm
Height 465 mm
Depth 241 mm
Airstream temperature at nominal current 60 °C
Airstream temperature at IMax -20 °C up to 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799831204
Article number 0083.0120



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, S1 (dB(A))

–

–

–

–

–

–

–

–

57

LWA7, S2 (dB(A))

–

–

–

–

–

–

–

–

62

LWA7, S3 (dB(A))

–

–

–

–

–

–

–

–

65

LWA7, S4 (dB(A))

–

–

–

–

–

–

–

–

66

LWA7, S5 (dB(A))

28

41

54

58

60

62

59

47

66

LWA8, S1 (dB(A))

–

–

–

–

–

–

–

–

64

LWA8, S2 (dB(A))

–

–

–

–

–

–

–

–

75

LWA8, S3 (dB(A))

–

–

–

–

–

–

–

–

75

LWA8, S4 (dB(A))

–

–

–

–

–

–

–

–

75

LWA8, S5 (dB(A))

49

53

59

61

69

69

71

68

76

LWA7= housing and free inlet sound power level in dB.

LWA8= housing and free outlet sound power level in dB.

Product description

Productdescription

DZQ 30/4 B

short description

Axial wall fan with square wall plate, DN 300, three-phase AC

Product description

Features

  • Yellow chromated protective grille on the intake side, potection against accidental contact in accordance with DIN EN ISO 13857.
  • 8-blade impellers made of glass-fibre filled polyamide. Dynamically balanced at two levels, in accordance with performance level 6.3, DIN ISO 1940, Part 1.
  • Can be fitted in any position.

Air flow direction

  • The following illustration shows the air flow direction:
  1. Air flow direction A: With air drawn across the motor, standard
  2. Air flow direction B: With air blown across the motor, available on request
  3. Rotational direction
  4. Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.

Motor

  • Asynchronous motor.
  • Speed controllable. Exception: Type EZQ 45/6 B, EZS 45/6 B, DZQ 40/2 B and DZS 40/2 B.
  • Reversible. Exception: Fans with shaded-pole motors (...-E).
  • Not suitable for ventilating steam-saturated air.

Three-phase AC motor

  • DZQ and DZS model series.
  • Rated voltage 400 V, 50 Hz.
  • IP 55 degree of protection. Exception DZQ/DZS... D IP 54.
  • Thermal overload protection as a standard feature. Exception: available on request for DZQ/DZS 25/4 D and pole-changeable axial duct fans.
  • Potential-free terminal connections, which must be connected to e.g. an MV 25 protective motor switch or the control circuit of a contactor.
  • Pole-changeable fans: Ensure overload protection is guaranteed by a motor protection switch provided by the customer.
  • Pole-changeable motors with speed ratios of 8/4 or 4/2 have a Dahlander pole-changing circuit.

Electrical connection

  • To terminal block under the motor cover.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857.

Special versions

  • The following special versions are available at extra cost on request:
    • Special voltages and frequencies.
    • Single-phase motors with thermal contacts or PTC thermistor, with potential-free terminal connections.
    • Condensation drainage holes.
    • Fans with enhanced anti-corrosion protection.
    • Impellers made of aluminium.
  • Information on operation at temperatures occasionally below -20°C available upon request.
  • If operating with frequency converters, the factory must be consulted.
  • Feasibility must be checked in each case.

Table of contents

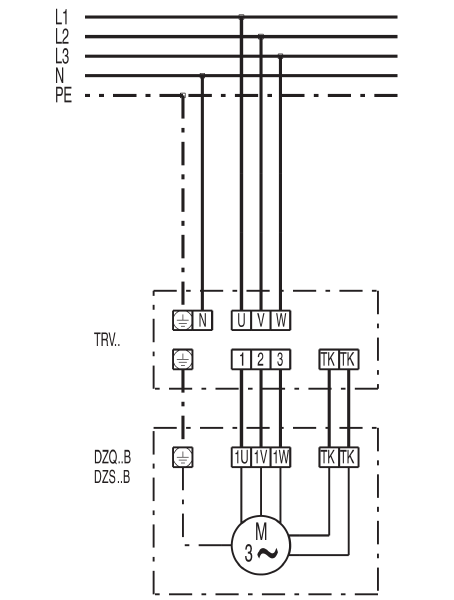

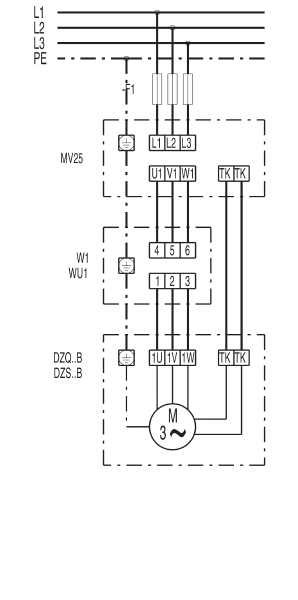

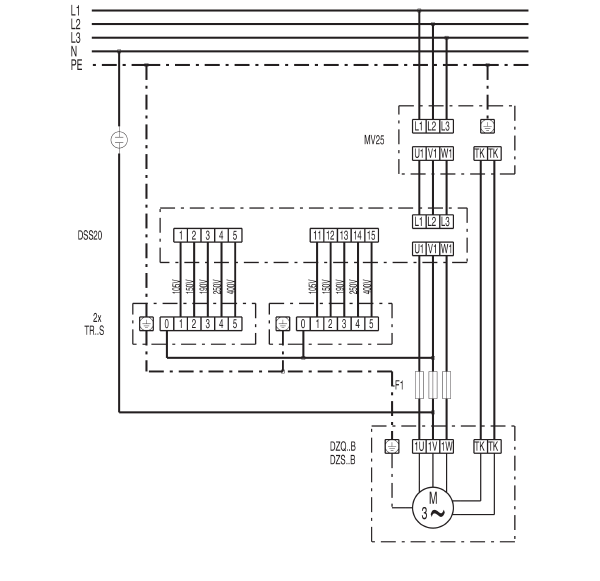

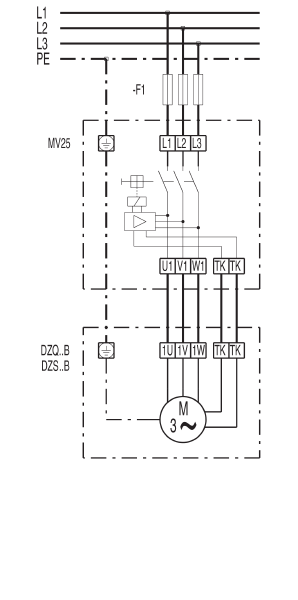

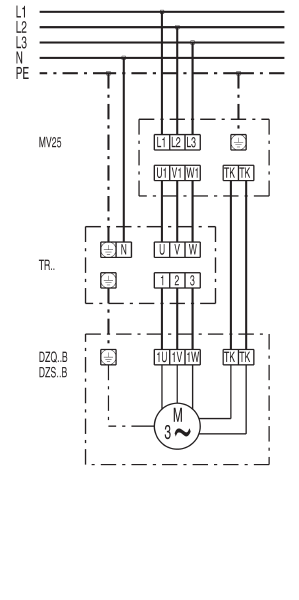

Wiring diagram

DZQ 30/4 B - Wiring diagram

DZQ/DZS/DZF..B standard (right-hand operation, 1 speed)

SC - Protection contact

TK - Thermal contact



DZQ/DZS/DZF..B standard (left-hand operation, 1 speed)

SC - Protection contact

TK - Thermal contact
