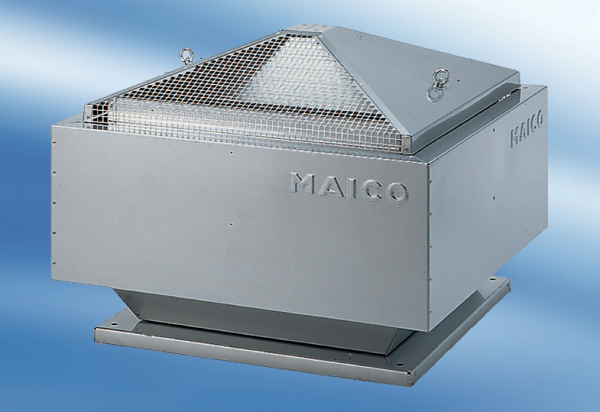

Centrifugal roof fan

DRD 63/86

No longer available for delivery
Article number: 0087.0159
Manufacturer: MAICO
Radial roof fan, with vertical air outlet, DN 630, three-phase AC, pole changeable

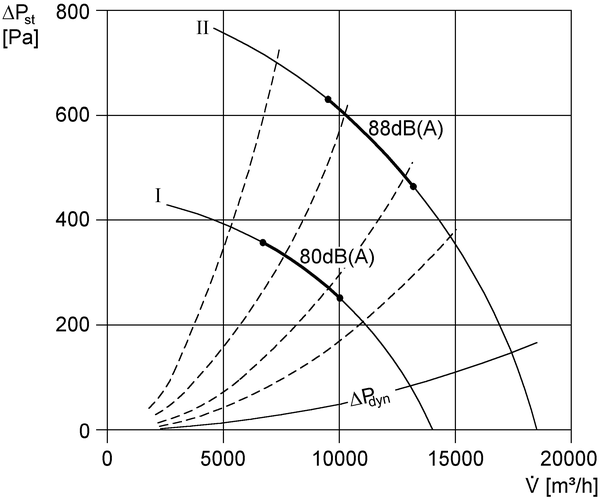

Characteristic curve

DRD 63/86 - Characteristic curve

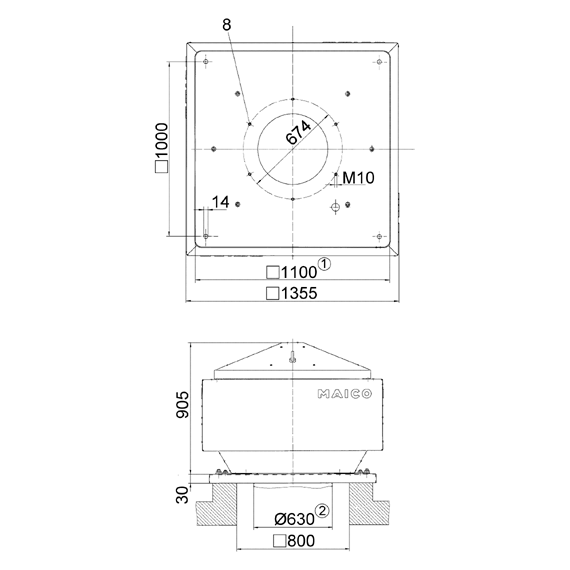

Dimensioned drawing

DRD 63/86 - Dimensioned drawing [mm]

  1. Clear width
  2. External duct diameter

Technical data

DRD 63/86 - Technical data

Article DRD 63/86
Air flow volume 14.000 m³/h / 18.500 m³/h
Rotating speed 715 1/min / 930 1/min
Nominal output 2.000 W / 4.000 W
Inom 4 A / 8 A
Imax 4 A / 8,3 A
Pole-changeable
Number of poles at high speed 6
Number of poles at low speed 8
Installation site Roof
Installation position vertical
Material Sheet steel, galvanised
Weight 225
Airstream temperature at nominal current 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799871590
Article number 0087.0159



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, low (dB(A))

65

75

80

80

73

70

84

LWA5, high (dB(A))

75

81

87

89

81

74

92

LWA5= free inlet sound power level in dB.

Accessories

DRD 63/86 - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Pole-changing switch P 2 0157.0106 on request
  • On the notes

Product description

Productdescription

DRD 63/86

short description

Radial roof fan, with vertical air outlet, DN 630, three-phase AC, pole changeable

Table of contents

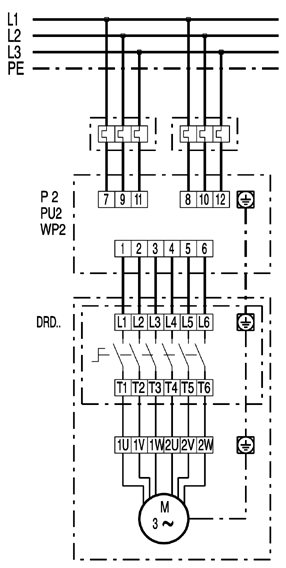

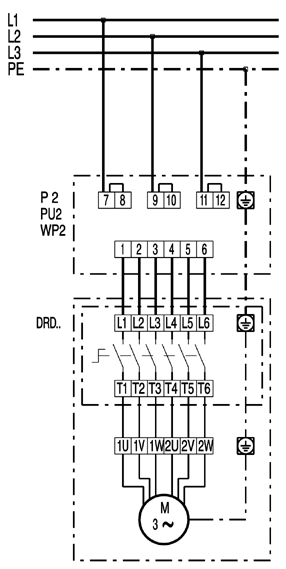

Wiring diagram

DRD 63/86 - Wiring diagram
