Axial roof fan
DZD 60/4 BL
No longer available for deliveryManufacturer: MAICO
Axial roof fan, horizontal air outlet, DN 600, three-phase AC
Application examples: Production facility, Workplace, Commercial premises, Restaurant, Showroom
Product data sheet

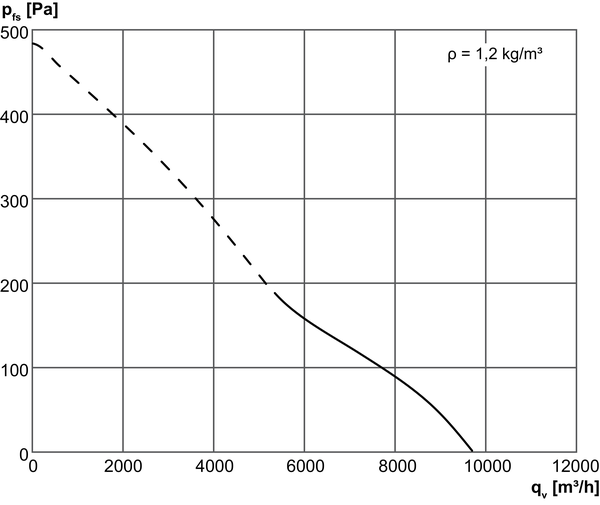

Characteristic curve
Dimensioned drawing
DZD 60/4 BL - Dimensioned drawing [mm]
Technical data
DZD 60/4 BL - Technical data
Accessories
DZD 60/4 BL - Accessories
General accessories
Product description
Productdescription
DZD 60/4 BL
short description
Axial roof fan, horizontal air outlet, DN 600, three-phase ACProduct description
Brief description
- Housing, base plate, intake nozzle and rain protection cover made of galvanised sheet steel.
- Galvanized protective grille on the discharge side, protection against accidental contact in accordance with DIN EN ISO 13857.
- Sturdy eyebolts enable transport by crane.
- 8-blade impeller made of glass-fibre reinforced polyamide.
- Thermal overload protection as a standard feature.
- Fans meet the requirements of the European Ecodesign Directive (EC) No.327/2011 Directive 2009/125/EC.
- Vibration-free running due to dynamically balanced impeller and motor (shaft-rotor), according to quality class 6.3, DIN ISO 1940, part 1.
- High efficiency on the ventilation side, low operating noise.
- Increased durability due to high-quality materials such as quiet ball bearings.
- Fans are maintenance-free.
- Reversible operation of the fans possible.
- Customer-specific special voltages available, as special designs, on request and at extra cost.
- Can be switched to ventilation or air extraction with separate switch (exception EZD ... E).
Air flow direction
- The air flow direction is marked.
- Standard exhaust air mode, air flow direction with air blown across motor.
Motor
- Asynchronous motor.
- Reversible. Exception: Fans with shaded-pole motors (".../E").
- Thermal overload protection as a standard feature.
Three-phase AC motor
- Asynchronous motor.
- Rated voltage 400 V, 50 Hz.
- Degree of protection for DZD ... D IP 54.
- Degree of protection for DZD ... B and ... E IP 55.
- Speed controllable. Units can be switched in steps with an optional 5-step transformer.
- Reversible.
- Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
- Thermal overload protection as a standard feature. Exception: For type DZD 25/4 D (motor protection switch is provided by the customer).
- Potential-free terminal connections, which must be connected to e.g. an MV 25 motor protection switch or the control circuit of a contactor.
Electrical connection
- Connecting cable, approx. 1.7 m long.
Safety information
- The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857, e.g., with Maico SG protective grille.
- A proper fixed installation in a horizontal installation position, a permanent electrical supply cable and correct air supply via shaft or duct is stipulated.
Special versions
- The following special versions are available on request, at an extra cost:
- Special voltages and frequencies.
- Fans with enhanced anti-corrosion protection.
- Impellers made of aluminium.
- Information on operation at temperatures occasionally below -20°C available upon request.
- If operating with frequency converters, the factory must be consulted.
- Feasibility must be checked in each case.
Wiring diagram
DZD 60/4 BL - Wiring diagram

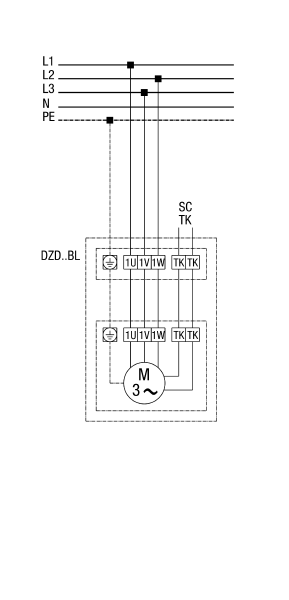

DZD...BL standard (counter-clockwise, 1 speed)
SC - Protection circuit
TK - Thermal contact

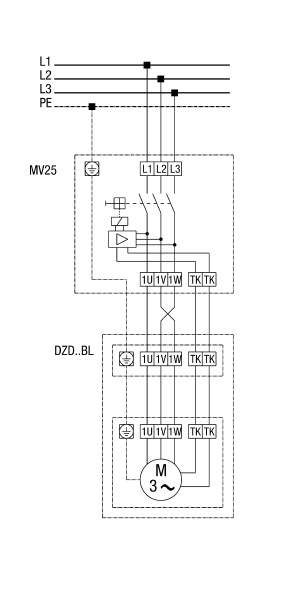

DZD...BL standard with MV 25 motor protection switch

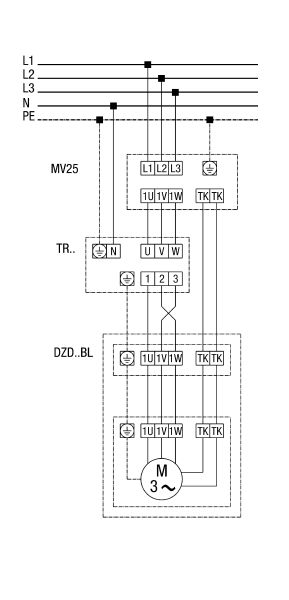

DZD...BL with MV 25 motor protection switch and TR... 5-step transformer

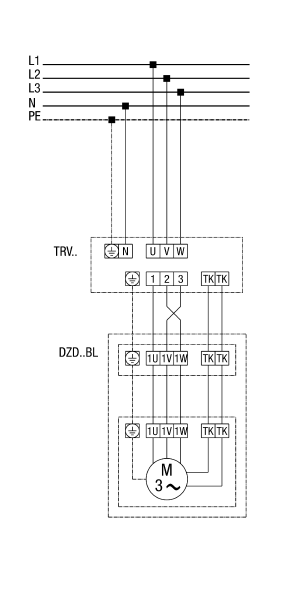

DZD...BL with TRV... 5-step transformer
