Axial duct fan

DZR 35/2 A-Ex

No longer available for delivery
Article number: 0086.0772
Manufacturer: MAICO
Axial duct fan, DN 350, three-phase AC, explosion proof

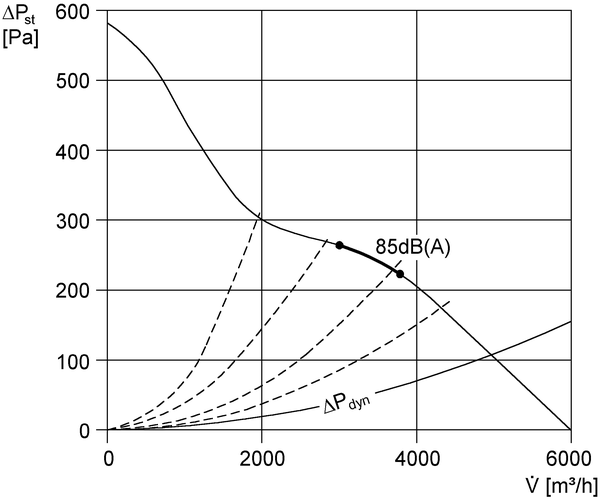

Characteristic curve

DZR 35/2 A-Ex - Characteristic curve

  • DZR 35/2 A-Ex IM0000744.PNG Axial duct fan, DN 350, three-phase AC, explosion proof

Dimensioned drawing

DZR 35/2 A-Ex - Dimensioned drawing [mm]

  • DZR 35/2 A-Ex IM0009132.PNG Axial duct fan, DN 350, three-phase AC, explosion proof

Technical data

DZR 35/2 A-Ex - Technical data

Article DZR 35/2 A-Ex
Air flow volume 6.000 m³/h
Rotating speed 2.750 1/min
Nominal output 900 W
Inom 1,81 A
Imax 1,92 A
Weight 20,7
IA/IN 5,7
Certified as explosion proof 84/3893
Packing unit 1 piece
Range C
GTIN (EAN) 4012799867722
Article number 0086.0772


63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz


LWA5, high (dB(A))


LWA5= free inlet sound power level in dB.

DZR 35/2 A-Ex -

Product description


DZR 35/2 A-Ex

short description

Axial duct fan, DN 350, three-phase AC, explosion proof

Table of contents

Wiring diagram

DZR 35/2 A-Ex - Wiring diagram

Predecessor - successor

DZR 35/2 A-Ex - Successor

Product typeNameArt. No.Action
Axial duct fanDZR 35/2 B Ex e0086.0708
