Axial duct fan

DZR 35/4 A-Ex

No longer available for delivery
Article number: 0086.0771
Manufacturer: MAICO
Axial duct fan, DN 350, three-phase AC, explosion proof

Characteristic curve

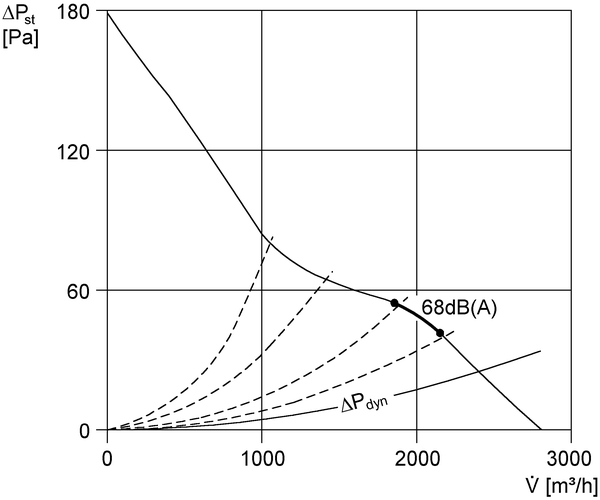

DZR 35/4 A-Ex - Characteristic curve

Dimensioned drawing

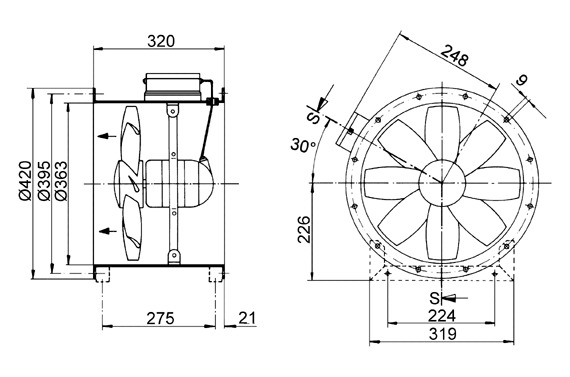

DZR 35/4 A-Ex - Dimensioned drawing [mm]

Technical data

DZR 35/4 A-Ex - Technical data

Article DZR 35/4 A-Ex
Air flow volume 2.800 m³/h
Rotating speed 1.390 1/min
Nominal output 165 W
Inom 0,47 A
Imax 0,54 A
Weight 12,2
IA/IN 3,4
Certified as explosion proof 84/3892
Packing unit 1 piece
Range C
GTIN (EAN) 4012799867715
Article number 0086.0771


63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz


LWA5, high (dB(A))


LWA5= free inlet sound power level in dB.

DZR 35/4 A-Ex -

Product description


DZR 35/4 A-Ex

short description

Axial duct fan, DN 350, three-phase AC, explosion proof

Table of contents

Wiring diagram

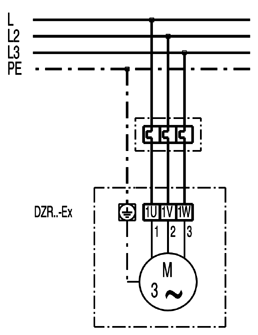

DZR 35/4 A-Ex - Wiring diagram

Predecessor - successor

DZR 35/4 A-Ex - Successor

Product type Name Art. No. Action
Axial duct fan DZR 35/4 B Ex e 0086.0707
