Small room fan

ECA 100 K

No longer available for delivery
Article number: 0084.0003
Manufacturer: MAICO
With electrical internal shutter
Application examples: Bathroom, WC, Storage room, Larder, Cellar
ECA 100 K IM0008696.PNG With electrical internal shutter
ECA 100 K IM0007250.PNG With electrical internal shutter
ECA 100 K IM0007252.PNG With electrical internal shutter

Characteristic curve

ECA 100 K - Characteristic curve

  • ECA 100 K IM0002299.PNG With electrical internal shutter

V = 230 or 24 V

f = 50 Hz

n = 2650 min-1

Dimensioned drawing

ECA 100 K - Dimensioned drawing [mm]

  • ECA 100 K IM0007157.PNG With electrical internal shutter
  1. Cable entry

Technical data

ECA 100 K - Technical data

Article ECA 100 K
Model Standard model
Air flow volume 95 m³/h
Rotating speed 2.650 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Power consumption 13 W
Imax 0,1 A
Degree of protection IP 34
Mains cable 3 x 1,5 mm²
Installation site Wall
Type of installation Surface-mounted
Installation position any
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,655
Type of shutter electrical
Nominal size 100 mm
Sound pressure level 31 dB(A) / Distance 3 m, Free-field conditions
Packing unit 1 piece
Range A
GTIN (EAN) 4012799840039
Article number 0084.0003

Accessories / Spare parts

ECA 100 K - Accessories / Spare parts

Specific accessories

Product typeNameArt. No.Price*(EUR)Action
Window installation kitFE 100 APDiscontinued product0093.1024 on request
  • On the notes
Window installation kitFE 100 SGDiscontinued product0093.1023 on request
  • On the notes
ShutterAP 1000059.1058 on request
  • On the notes
ShutterAP 100 B0059.0957 on request
  • On the notes
Fly screenFG 1000093.0922 on request
  • On the notes
External grilleSG 1000059.1054 on request
  • On the notes
External grilleSG 100 B0059.0958 on request
  • On the notes
Wall sleeveWH 1000059.1030 on request
  • On the notes
Radio switchXS 10157.0344 on request
  • On the notes
Radio receiverXE 10157.0343 on request
  • On the notes
Mounting plateZM 110059.0696 on request
  • On the notes
SpacerECA-AHNo longer available for delivery0092.0486 on request
  • On the notes

General accessories

Product typeNameArt. No.Price*(EUR)Action
Roof outletDF---
Roofing tileDP---
Mounting clampBS---
Rain protection grilleRG---
Door ventilation grilleMLK 30 white0151.0123 on request
  • On the notes
Door ventilation grilleMLK 45 white0151.0126 on request
  • On the notes
Flexible aluminium ductAFR 1000055.0090 on request
  • On the notes
Step switchFS 40016.0104 on request
  • On the notes
Speed controllerST 1No longer available for delivery0157.0810 on request
  • On the notes
Speed controller, distribution boardSTS 2,5Discontinued product0157.0255 on request
  • On the notes
Time delay switchVZ 60157.0820 on request
  • On the notes
Time delay switchVZ 120157.0821 on request
  • On the notes
Time delay switchVZ 24 C0157.0822 on request
  • On the notes
Interval switchVZI 100157.0823 on request
  • On the notes
Follow-up relayNRS 100157.0805 on request
  • On the notes
HygrostatHY 10 APNo longer available for delivery0157.0358 on request
  • On the notes
HygrostatHY 10 UPNo longer available for delivery0157.0357 on request
  • On the notes
Speed controllerSTU 1No longer available for delivery0157.0814 on request
  • On the notes
Automatic timerZA 4No longer available for delivery0157.0426 on request
  • On the notes
HygrostatHY 5No longer available for delivery0157.0123 on request
  • On the notes
HygrostatHY 5 INo longer available for delivery0157.0125 on request
  • On the notes
Door contact switchTS 8No longer available for delivery0157.0120 on request
  • On the notes

Spare part for

Product typeNameArt. No.Price*(EUR)Action
CoverABDK ECA 100 1E059.1003.9002 on request
  • On the notes
Circuit boardPL ECA 100/120E101.1010.9000 on request
  • On the notes
Thermostatic bimetal stripTB ECA 100 KE180.0913.9000 on request
  • On the notes

Product description

Productdescription

ECA 100 K

short description

With electrical internal shutter

Product description

Standard model

  • With electrically operated internal shutter.
  • Speed controllable. Exception: ECA 150/4 K.
  • There can be a physically induced humming noise at lower speeds, through the use of phase angle technology.

Features

  • High air volume in spite of compact size.
  • Combines large air volumes with high pressure.
  • Thermal overload protection.
  • Housing made of impact resistant plastic material.
  • Protection class II.
  • With VDE GS symbol.
  • With protective seals to stop ingress of condensation for ceiling installations.
  • Optional speed control for standard ECA fan models.

Motor

  • Robust motor with ball bearings, maintenance-free.
  • Suitable for continuous operation.

Mounting instructions

  • Easy and quick cover dismantling.
  • The fan can be fastened quickly in the duct by the two spring-clamps.

Electrical connection

  • Electrical connection can be either surface- or recessed-mounted.

Safety instructions

  • ECA 100 Can be used in protection area 2 in accordance with DIN VDE 0100-701.
  • For details, please refer to the planning instructions.

Table of contents

Wiring diagram

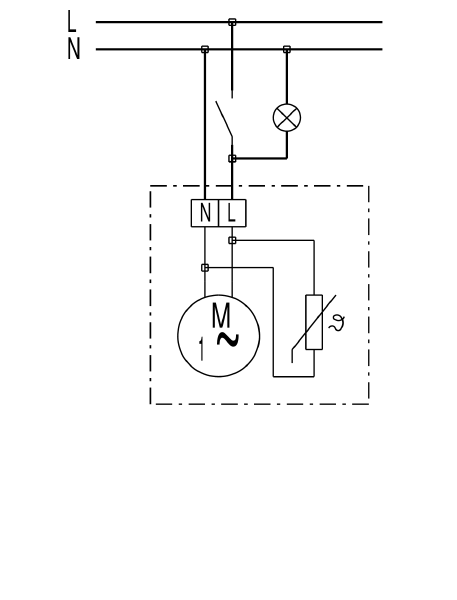

ECA 100 K - Wiring diagram
