Small room fan

ECA 100 KI

No longer available for delivery
Article number: 0084.0039
Manufacturer: MAICO
With electrical internal shutter and interval control
Application examples: Bathroom, WC, Storage room, Larder, Cellar
ECA 100 KI IM0008696.PNG With electrical internal shutter and interval control
ECA 100 KI IM0007250.PNG With electrical internal shutter and interval control
ECA 100 KI IM0007252.PNG With electrical internal shutter and interval control

Characteristic curve

ECA 100 KI - Characteristic curve

V = 230 or 24 V

f = 50 Hz

n = 2650 min-1

Dimensioned drawing

ECA 100 KI - Dimensioned drawing [mm]

  1. Cable entry

Technical data

ECA 100 KI - Technical data

Article ECA 100 KI
Model Interval control
Air flow volume 95 m³/h
Rotating speed 2.650 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Power consumption 13 W
Imax 0,1 A
Degree of protection IP 34
Mains cable 5 / 1,5 mm²
Installation site Wall
Type of installation Surface-mounted
Installation position any
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,66
Type of shutter electrical
Nominal size 100 mm
Sound pressure level 31 dB(A) / Distance 3 m, Free-field conditions
Packing unit 1 piece
Range A
GTIN (EAN) 4012799840398
Article number 0084.0039

Accessories

ECA 100 KI - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Window installation kit FE 100 AP Discontinued product 0093.1024 on request
  • On the notes
Window installation kit FE 100 SG Discontinued product 0093.1023 on request
  • On the notes
Shutter AP 100 0059.1058 on request
  • On the notes
Shutter AP 100 B 0059.0957 on request
  • On the notes
Fly screen FG 100 0093.0922 on request
  • On the notes
External grille SG 100 0059.1054 on request
  • On the notes
External grille SG 100 B 0059.0958 on request
  • On the notes
Wall sleeve WH 100 0059.1030 on request
  • On the notes
Radio switch XS 1 0157.0344 on request
  • On the notes
Radio receiver XE 1 0157.0343 on request
  • On the notes
Mounting plate ZM 11 0059.0696 on request
  • On the notes
Spacer ECA-AH Discontinued product 0092.0486 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Roof outlet DF - - -
Roofing tile DP - - -
Mounting clamp BS - - -
Rain protection grille RG - - -
Door ventilation grille MLK 30 white 0151.0123 on request
  • On the notes
Door ventilation grille MLK 45 white 0151.0126 on request
  • On the notes
Flexible aluminium duct AFR 100 0055.0090 on request
  • On the notes
Door contact switch TS 8 No longer available for delivery 0157.0120 on request
  • On the notes

Product description

Productdescription

ECA 100 KI

short description

With electrical internal shutter and interval control

Product description

Model with interval control.

  • With electrical internal shutter.
  • The interval control ventilates rooms that are not regularly used.
  • Time interval adjustable from 1 to approx. 15 hours.
  • Approx. 10 minutes operating time per interval.
  • When operated manually (e.g. by light switch) there is a start delay of approx. 50 seconds and an overrun time of approx. 10 minutes.
  • Single speed only.

Features

  • High air volume in spite of compact size.
  • Combines large air volumes with high pressure.
  • Thermal overload protection.
  • Housing made of impact resistant plastic material.
  • Protection class II.
  • With VDE GS symbol.
  • With protective seals to stop ingress of condensation for ceiling installations.
  • Optional speed control for standard ECA fan models.

Motor

  • Robust motor with ball bearings, maintenance-free.
  • Suitable for continuous operation.

Mounting instructions

  • Easy and quick cover dismantling.
  • The fan can be fastened quickly in the duct by the two spring-clamps.

Electrical connection

  • Electrical connection can be either surface- or recessed-mounted.

Safety instructions

  • ECA 100 Can be used in protection area 2 in accordance with DIN VDE 0100-701.
  • For details, please refer to the planning instructions.

Table of contents

Wiring diagram

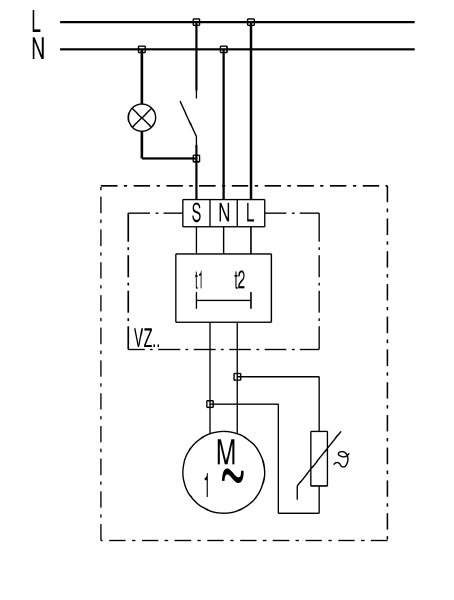

ECA 100 KI - Wiring diagram
