ECA 100 F - Characteristic curve
V = 230 or 24 V
f = 50 Hz
n = 2650 min-1
Small room fan
ECA 100 F
No longer available for deliveryManufacturer: MAICO
With fixed internal grille and light control
Application examples: Bathroom, WC, Storage room, Larder, Cellar
Product data sheet
Characteristic curve
Dimensioned drawing
ECA 100 F - Dimensioned drawing [mm]
- Cable entry
Technical data
ECA 100 F - Technical data
Accessories / Spare parts
ECA 100 F - Accessories / Spare parts
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Shutter | AP 100 | 0059.1058 | on request | |
| Shutter | AP 100 B | 0059.0957 | on request | |
| Fly screen | FG 100 | 0093.0922 | on request | |
| External grille | SG 100 | 0059.1054 | on request | |
| External grille | SG 100 B | 0059.0958 | on request | |
| Wall sleeve | WH 100 | 0059.1030 | on request | |
| Mounting plate | ZM 11 | 0059.0696 | on request | |
| Window installation kit | FE 100 AP | 0093.1024 | on request | |
| Window installation kit | FE 100 SG | 0093.1023 | on request | |
| Radio switch | XS 1 No longer available for delivery | 0157.0344 | on request | |
| Radio receiver | XE 1 No longer available for delivery | 0157.0343 | on request | |
| Spacer | ECA-AH No longer available for delivery | 0092.0486 | on request |
General accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Roof outlet | DF | - | - | - |
| Roofing tile | DP | - | - | - |
| Mounting clamp | BS | - | - | - |
| Rain protection grille | RG | - | - | - |
| Roofing tile | DP | - | - | - |
| Door ventilation grille | MLK 30 white | 0151.0123 | on request | |
| Door ventilation grille | MLK 45 white | 0151.0126 | on request | |
| Flexible aluminium duct | AFR 100 | 0055.0090 | on request |
Spare parts
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Cover | ABD ECA 100 1 | E059.1002.9001 | on request | |
| Circuit board | PL ECA 100/120 F | E101.1255.0000 | on request |
Product description
Productdescription
ECA 100 F
short description
With fixed internal grille and light controlProduct description
Model with light control
- Barrier-free product, as automatic switching on/off is possible via the light control.
- The light control switches on the fan when the minimum light intensity in the room is exceeded, e.g. when a light is switched on.
- Min. 30 lux switch-on brightness (on unit).
- Max. 0.3 lux switch-off brightness (on unit).
- No need to install a switch.
- Start delay approx. 50 sec.
- Overrun time approx. 6 min.
- Switching option: The fan can be switched off independently of the room lighting by an additional switch (see the wiring diagrams online).
- Not speed controllable.
Features
- High air volume in spite of compact size.
- Combines large air volumes with high pressure.
- Thermal overload protection.
- Housing made of impact resistant plastic material.
- Protection class II.
- With VDE GS symbol.
- With protective seals to stop ingress of condensation for ceiling installations.
- Optional speed control for standard ECA fan models.
Motor
- Robust motor with ball bearings, maintenance-free.
- Suitable for continuous operation.
Mounting instructions
- Easy and quick cover dismantling.
- The fan can be fastened quickly in the duct by the two spring-clamps.
Electrical connection
- Electrical connection can be either surface- or recessed-mounted.
Safety instructions
- ECA 100 Can be used in protection area 2 in accordance with DIN VDE 0100-701.
- For details, please refer to the planning instructions.
Wiring diagram

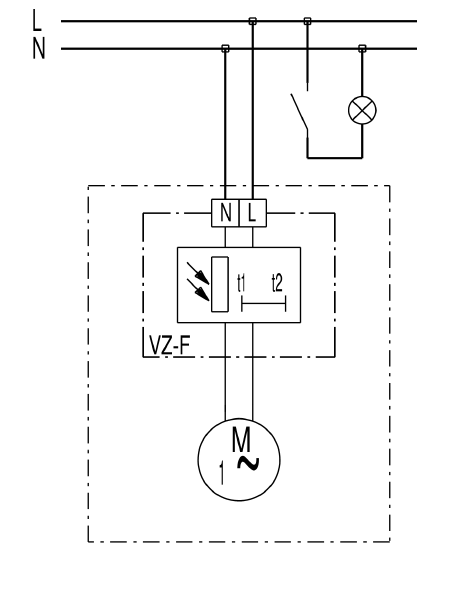

ECA 100 F - Wiring diagram
Downloads / Videos
ECA 100 F - Downloads / Videos
Predecessor - successor
ECA 100 F - Successor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Small room fan | ECA 100 ipro F | 0084.0202 |
