Centrifugal flat box

EFR 10

Article number: 0080.0570
Manufacturer: MAICO
Centrifugal flat box with 1 speed, DN 100
Application examples: Single-family house, Office, Foreman's office, WC
EFR 10 IM0008816.PNG Centrifugal flat box with 1 speed, DN 100

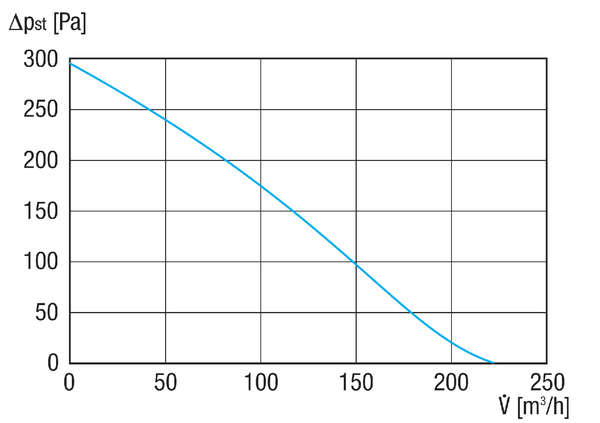

Characteristic curve

EFR 10 - Characteristic curve

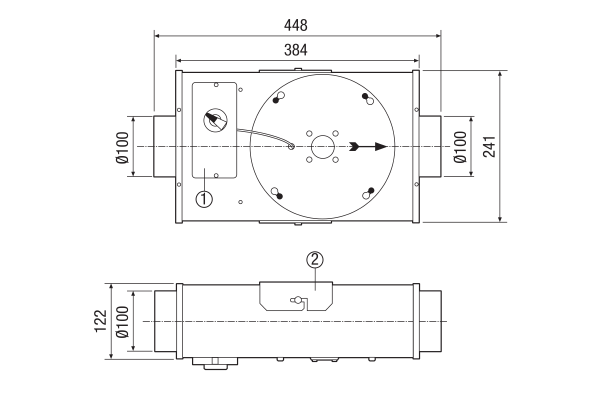

Dimensioned drawing

EFR 10 - Dimensioned drawing [mm]

  1. Electrical connection
  2. Mounting support

Technical data

EFR 10 - Technical data

Article EFR 10
Air flow volume 220 m³/h
Rotating speed 2.373 1/min
Impeller type radial
Rated voltage 230 V
Frequency 50 Hz
Nominal output 52 W
PMax 52 W
Imax 0,23 A
Degree of protection IP 20
Mains cable 3 / 1,5 mm²
Installation site Ceiling
Installation position vertical / horizontal
Housing material Sheet steel, galvanised
Weight 4,2 kg
Swivelling fan
Nominal size 100 mm
Width 241 mm
Height 122 mm
Depth 448 mm
Airstream temperature at IMax -20 °C up to 50 °C
Ambient temperature 50 °C
Sound pressure level 34 dB(A) / Distance 3 m, Free-field conditions
Packing unit 1 piece
Range C
GTIN (EAN) 4012799805700
Article number 0080.0570



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, high (dB(A))

33

42

50

47

41

31

26

53

LWA2= housing sound power level in dB.

Product description

Productdescription

EFR 10

short description

Centrifugal flat box with 1 speed, DN 100

Product description

Models

  • EFR 10, EFR 12: 1 speed setting.
  • EFR 10 R, EFR 12 R: 5 speed settings; one of the 4 levels can be selected for the base load operation. Level 5 (maximum) is activated by an extra contact, e.g. light switch or hygrostat. The overrun time is set in the unit using a potentiometer (3 - 25 minutes).

Features

  • Installation in DN 100 and DN 125 ventilation ducts.
  • Smallest dimensions for installation where space is at a premium. Ideal for redevelopments.
  • Centrifugal impeller with backwards curved blades.
  • Inlet and outlet side connection couplings for direct installation in ventilation ducts.
  • IP 20 degree of protection.

Motor

  • Thermal overload protection as standard feature.
  • Robust motor with ball bearings, maintenance-free.

Mounting instructions

  • Can be fitted in any position.
  • With mounting plate for wall and roof installations.

Table of contents

Wiring diagram

EFR 10 - Wiring diagram
