Wall-mounted fan

EN 25

No longer available for delivery
Article number: 0081.0302
Manufacturer: MAICO
EN model series
Application examples: Restaurant, Showroom, Building container, Lecture room, Nursery school
Product data sheet

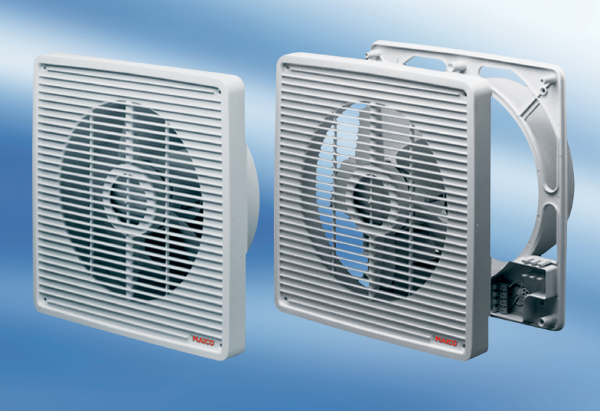

EN 25 IM0007292.PNG EN model series

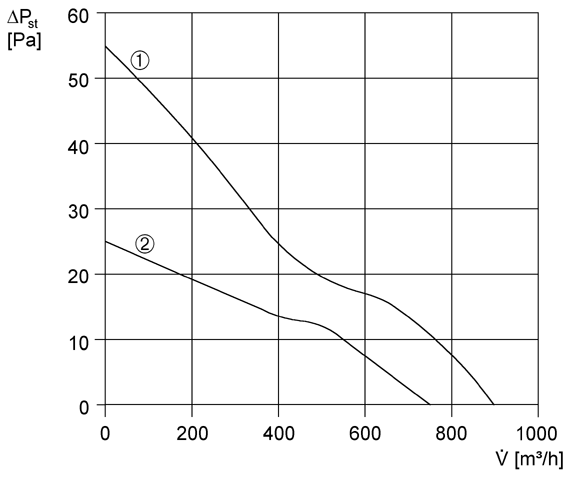

Characteristic curve

EN 25 - Characteristic curve

  1. ENR 25
  2. EN 25

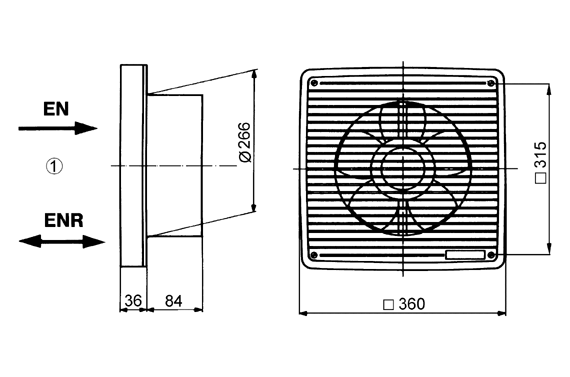

Dimensioned drawing

EN 25 - Dimensioned drawing [mm]

Technical data

EN 25 - Technical data

Article EN 25
Air flow volume 750 m³/h
Rotating speed 1.260 1/min
Air direction Air extraction
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 230 V
Nominal output 40 W
Power consumption 47 W
Inom 0,25 A
Imax 0,28 A
Installation site Wall
Type of installation Surface-mounted
Installation position horizontal
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 3,105
Nominal size 250 mm
Sound pressure level 54 dB(A)
Packing unit 1 piece
Range C
GTIN (EAN) 4012799813026
Article number 0081.0302



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, high (dB(A))

60

LWA7= housing and free inlet sound power level in dB.

Accessories

EN 25 - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AS 25 0151.0331 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Step switch FS 4 0016.0104 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformers ESS 20 0157.0749 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller ST 2,5 No longer available for delivery 0157.0811 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
TRE 0,4 No longer available for delivery 0016.0110 on request
  • On the notes
5-step transformer, control cabinet TRE 1,6 S No longer available for delivery 0157.0744 on request
  • On the notes

Product description

Productdescription

EN 25

short description

EN model series

Table of contents

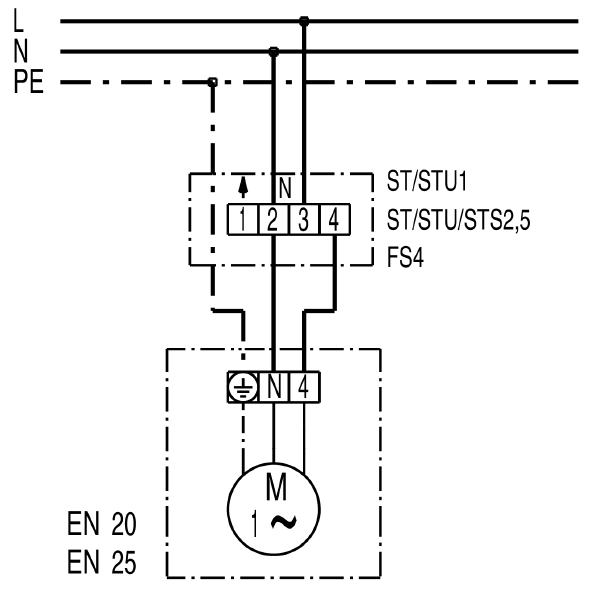

Wiring diagram

EN 25 - Wiring diagram



Predecessor - successor

EN 25 - Successor

Product type Name Art. No. Action
Axial wall-mounted fan EN 25 0081.0308
  • On the notes
