Wall-mounted fan

ET 20

No longer available for delivery
Article number: 0081.0501
Manufacturer: MAICO
ET model series
Application examples: Restaurant, Showroom, Building container, Lecture room, Nursery school
ET 20 IM0007292.PNG ET model series

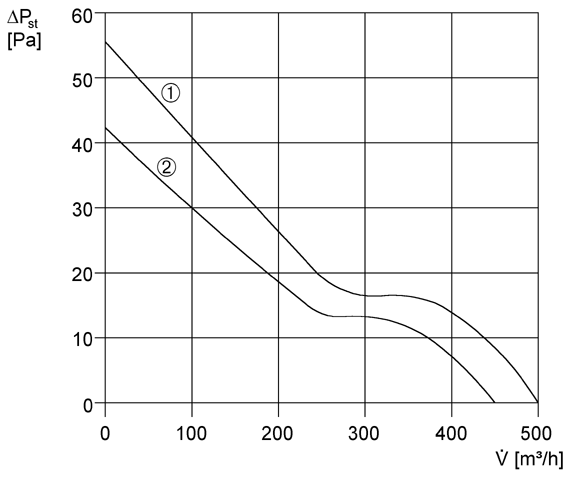

Characteristic curve

ET 20 - Characteristic curve

  1. ETR 20
  2. ET 20

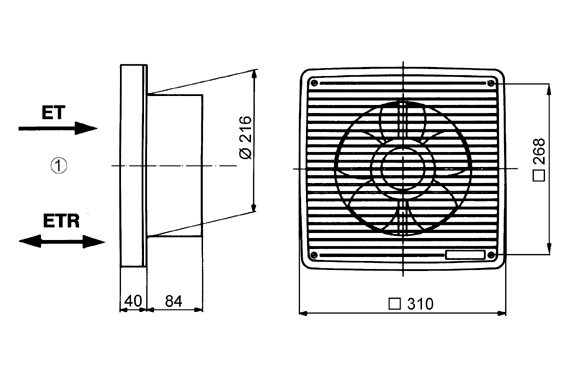

Dimensioned drawing

ET 20 - Dimensioned drawing [mm]

  1. Inside

Technical data

ET 20 - Technical data

Article ET 20
Air flow volume 450 m³/h
Rotating speed 1.330 1/min
Air direction Air extraction
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 230 V
Nominal output 35 W
Inom 0,25 A
Imax 0,25 A
Installation site Wall
Type of installation Surface-mounted
Installation position horizontal
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 2,7
Nominal size 200 mm
Sound pressure level 51 dB(A)
Packing unit 1 piece
Range C
GTIN (EAN) 4012799815013
Article number 0081.0501



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, high (dB(A))

59

LWA7= housing and free inlet sound power level in dB.

Accessories

ET 20 - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AS 20 0151.0330 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Step switch FS 4 0016.0104 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformers ESS 20 0157.0749 on request
  • On the notes
TRE 0,4 No longer available for delivery 0016.0110 on request
  • On the notes
5-step transformer, control cabinet TRE 1,6 S No longer available for delivery 0157.0744 on request
  • On the notes

Product description

Productdescription

ET 20

short description

ET model series

Table of contents

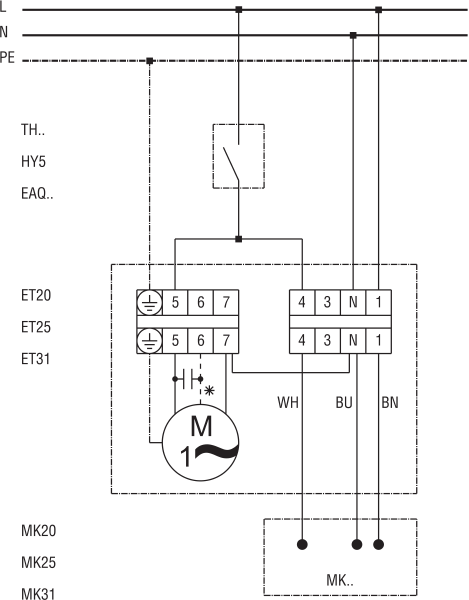

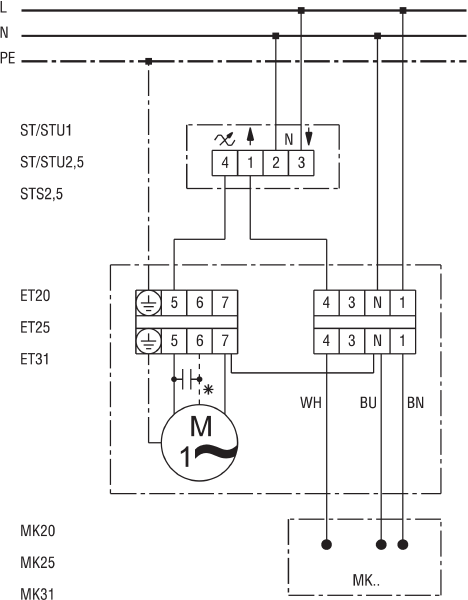

Wiring diagram

ET 20 - Wiring diagram





Predecessor - successor

ET 20 - Successor

Product type Name Art. No. Action
Axial wall-mounted fan EN 20 0081.0307
  • On the notes
