Wall-mounted fan

ET 25

No longer available for delivery
Article number: 0081.0502
Manufacturer: MAICO
ET model series
Application examples: Restaurant, Showroom, Building container, Lecture room, Nursery school
ET 25 IM0007292.PNG ET model series

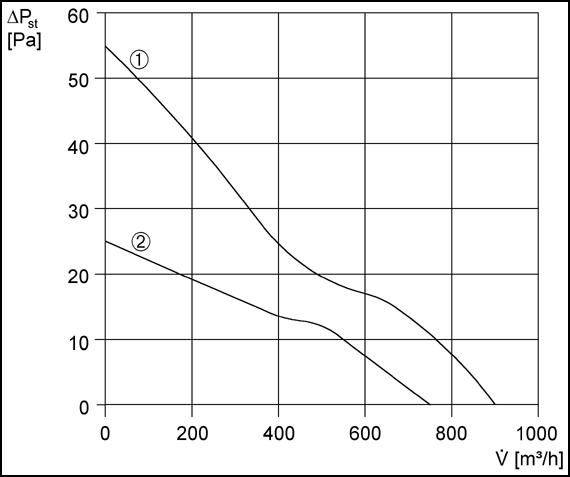

Characteristic curve

ET 25 - Characteristic curve

  • ET 25 IM0009177.PNG ET model series
  1. ETR 25
  2. ET 25

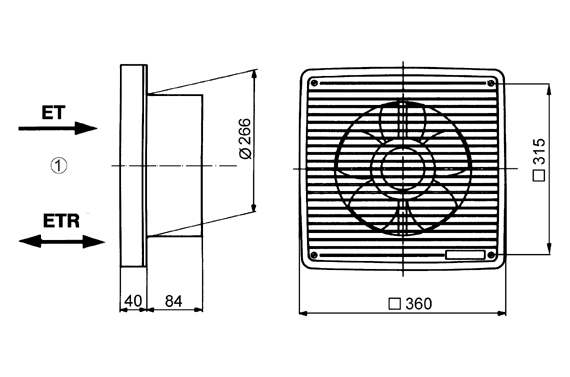

Dimensioned drawing

ET 25 - Dimensioned drawing [mm]

  • ET 25 IM0009098.PNG ET model series
  1. Inside

Technical data

ET 25 - Technical data

Article ET 25
Air flow volume 750 m³/h
Rotating speed 1.260 1/min
Air direction Air extraction
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 230 V
Nominal output 40 W
Power consumption 47 W
Inom 0,25 A
Imax 0,28 A
Installation site Wall
Type of installation Surface-mounted
Installation position horizontal
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 2,4
Nominal size 250 mm
Sound pressure level 54 dB(A)
Packing unit 1 piece
Range C
GTIN (EAN) 4012799815020
Article number 0081.0502


63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz


LWA7, high (dB(A))


LWA7= housing and free inlet sound power level in dB.


ET 25 - Accessories

Specific accessories

Product typeNameArt. No.Price*(EUR)Action
ShutterAS 250151.0331 on request
  • On the notes

General accessories

Product typeNameArt. No.Price*(EUR)Action
Step switchFS 40016.0104 on request
  • On the notes
Speed controllerST 1No longer available for delivery0157.0810 on request
  • On the notes
Speed controller, distribution boardSTS 2,5Discontinued product0157.0255 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformersESS 200157.0749 on request
  • On the notes
TRE 0,4No longer available for delivery0016.0110 on request
  • On the notes
5-step transformer, control cabinetTRE 1,6 SNo longer available for delivery0157.0744 on request
  • On the notes

Product description


ET 25

short description

ET model series

Table of contents

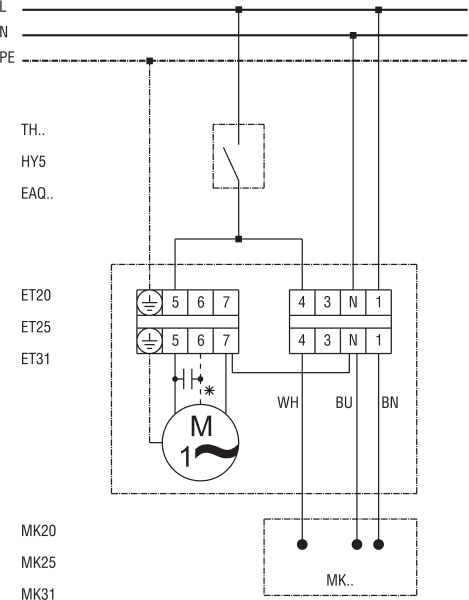

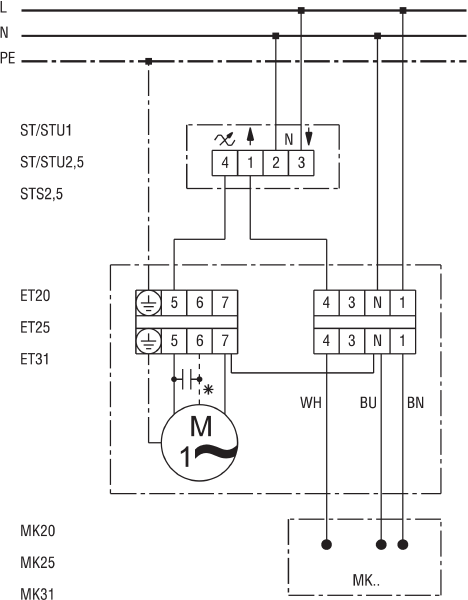

Wiring diagram

ET 25 - Wiring diagram

Predecessor - successor

ET 25 - Successor

Product typeNameArt. No.Action
Axial wall-mounted fanEN 250081.0308
  • On the notes
