Diagonal fan

ERK 100 ST

Remaining parts
Article number: 0080.0176
Manufacturer: MAICO
Diagonal fan, for duct installation, two-level, particularly powerful model with overrun relay, adjustable... more information
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
Product data sheet
ERK 100 ST IM0015672.PNG Diagonal fan, for duct installation, two-level, particularly powerful model with overrun relay, adjustable from 3 to 15 minutes

Characteristic curve

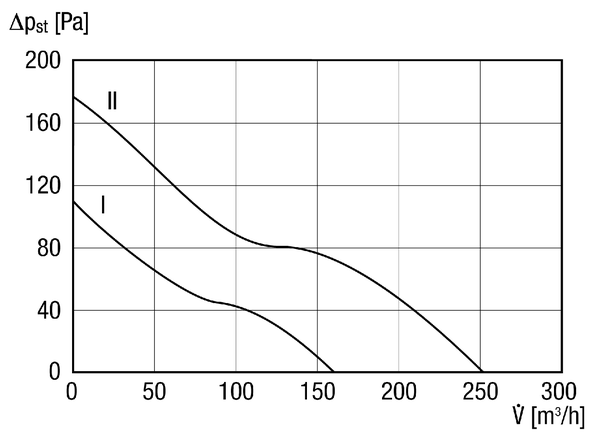

ERK 100 ST - Characteristic curve

Dimensioned drawing

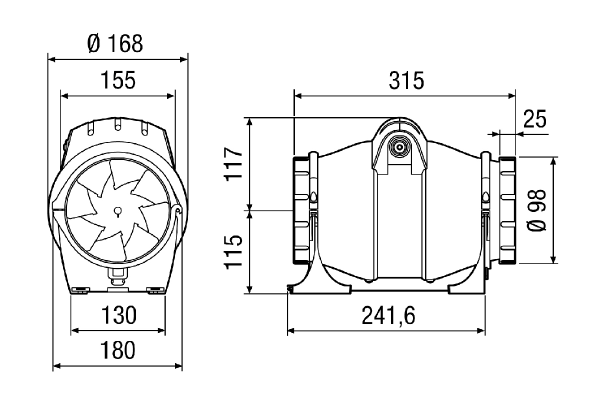

ERK 100 ST - Dimensioned drawing [mm]

Technical data

ERK 100 ST - Technical data

Article ERK 100 ST
Model Particularly powerful model with follow-up relay
Air flow volume 160 m³/h / 250 m³/h
Rotating speed 1.700 1/min / 2.300 1/min
Impeller type diagonal
Speed controllable
Reversing capacity
Rated voltage 230 V
Frequency 50 Hz
Nominal output 18 W / 30 W
Imax 0,1 A / 0,18 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Material PP plastic
Housing material Polypropylene
Colour white-grey
Weight 2,04 kg
Weight including packaging 2,55 kg
Nominal size 100 mm
Width 168 mm
Height 232 mm
Depth 315 mm
Width with packaging 235 mm
Height with packaging 290 mm
Depth with packaging 345 mm
Airstream temperature 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799801764
Article number 0080.0176



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, low (dB(A))

40

46

54

45

36

28

20

49

LWA5, high (dB(A))

46

51

56

53

44

38

29

55

LWA5= free inlet sound power level in dB.

Accessories

ERK 100 ST - Accessories

General accessories

Product description

Productdescription

ERK 100 ST

short description

Diagonal fan, for duct installation, two-level, particularly powerful model with overrun relay, adjustable from 3 to 15 minutes

Product description

Model with follow-up relay

  • Adjustable from 3 to 15 minutes.

Features

  • Duct fan, made of polypropylene.
  • Connection sockets on the outlet and inlet sides correspond to a folded spiral-seams duct diameter.
  • For direct installation between ducts.
  • Easy inspection and maintenance by simply opening the clamp and removing the fan.
  • Diagonal impeller with downstream stator (exception: ERK 100, axial impeller).

Motor

  • Asynchronous motor, 1, 2 or 3 levels, depending on model.
  • IP 44 degree of protection.
  • Robust motor with ball bearings, maintenance-free.
  • Speed control using phase control or transformer possible (exception: Version T and ST).
  • There can be a physically induced humming noise, through the use of phase angle technology. 5-step transformers are therefore used for speed control in rooms requiring quiet fan operations.
  • Thermal overload protection as a standard feature.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety instructions

  • The fan may be operated only if the protection against accidental contact is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet and outlet. To do this, fit a SGR protective grille.

Table of contents

Wiring diagram

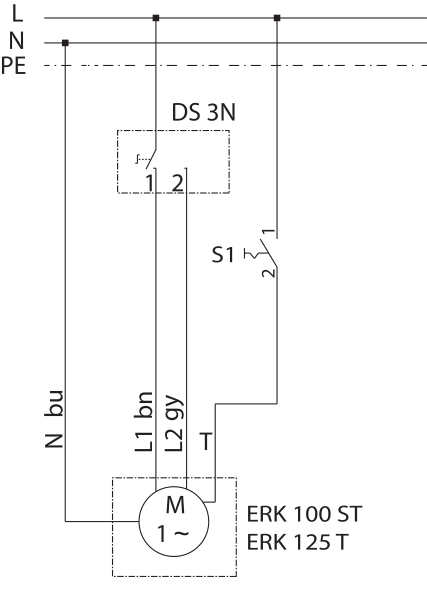

ERK 100 ST - Wiring diagram

S1 - On/off switch

T - Timer



Predecessor - successor

Notes
