Diagonal fan

ERK 125

Article number: 0080.0177
Manufacturer: MAICO
Diagonal fan for duct installation, DN 125, two-level
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
ERK 125 IM0015672.PNG Diagonal fan for duct installation, DN 125, two-level

Characteristic curve

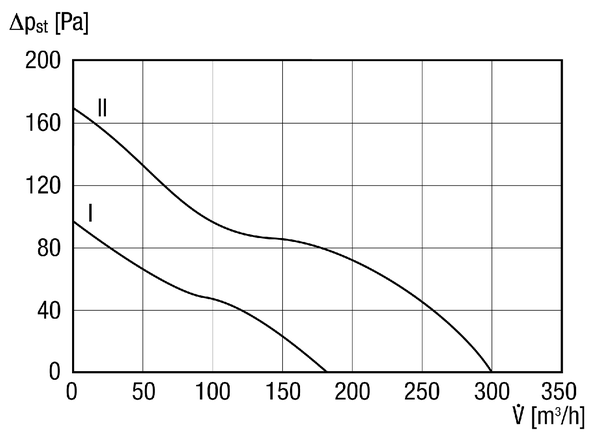

ERK 125 - Characteristic curve

  • ERK 125 IM0014790.PNG Diagonal fan for duct installation, DN 125, two-level

Dimensioned drawing

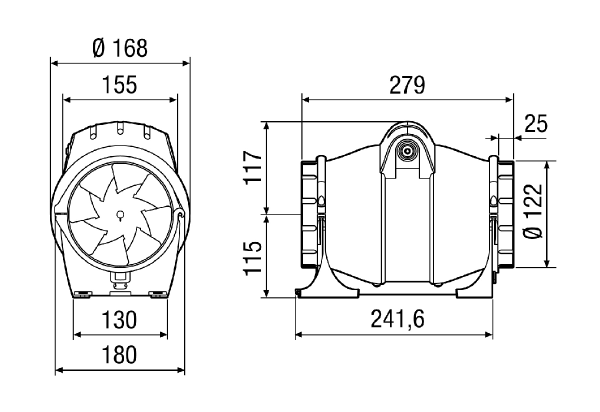

ERK 125 - Dimensioned drawing [mm]

  • ERK 125 IM0014896.PNG Diagonal fan for duct installation, DN 125, two-level

Technical data

ERK 125 - Technical data

Article ERK 125
Model Standard model
Air flow volume 180 m³/h / 300 m³/h
Rotating speed 1.700 1/min / 2.300 1/min
Impeller type diagonal
Speed controllable
Reversing capacity
Rated voltage 230 V
Frequency 50 Hz
Nominal output 18 W / 30 W
Imax 0,1 A / 0,18 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Housing material Polypropylene
Weight 2 kg
Nominal size 125 mm
Width 168 mm
Height 232 mm
Depth 279 mm
Airstream temperature 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799801771
Article number 0080.0177



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, low (dB(A))

40

45

45

43

36

27

20

46

LWA5, high (dB(A))

47

52

53

52

45

37

27

54

LWA5= free inlet sound power level in dB.

Accessories

ERK 125 - Accessories

General accessories

Product typeNameArt. No.Price*(EUR)Action
Automatic backflow preventerAVM 120093.0003 on request
  • On the notes
Protective grilleSGR 120150.0124 on request
  • On the notes
Electrical air heaterERH 12-10082.0101 on request
  • On the notes
Water air heaterWRH 12-10082.0117 on request
  • On the notes
Air filterTFE 12-40149.0075 on request
  • On the notes
Air filterTFE 12-50149.0059 on request
  • On the notes
Air filterTFE 12-70149.0050 on request
  • On the notes
Speed controllerSTX 1,5New development0157.1561 on request
  • On the notes
Speed controllerST 1No longer available for delivery0157.0810 on request
  • On the notes
5-step transformerTRE 0,4-20157.0156 on request
  • On the notes
Shutter drive with air damperMS 125No longer available for delivery0157.1232 on request
  • On the notes
Shutter drive with air damperMS 125 SNo longer available for delivery0157.1236 on request
  • On the notes
Speed controllerSTU 1No longer available for delivery0157.0814 on request
  • On the notes

Product description

Productdescription

ERK 125

short description

Diagonal fan for duct installation, DN 125, two-level

Product description

Features

  • Duct fan, made of polypropylene.
  • Connection sockets on the outlet and inlet sides correspond to a folded spiral-seams duct diameter.
  • For direct installation between ducts.
  • Easy inspection and maintenance by simply opening the clamp and removing the fan.
  • Diagonal impeller with downstream stator (exception: ERK 100, axial impeller).

Motor

  • Asynchronous motor, 1, 2 or 3 levels, depending on model.
  • IP 44 degree of protection.
  • Robust motor with ball bearings, maintenance-free.
  • Speed control using phase control or transformer possible (exception: Version T and ST).
  • There can be a physically induced humming noise, through the use of phase angle technology. 5-step transformers are therefore used for speed control in rooms requiring quiet fan operations.
  • Thermal overload protection as a standard feature.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety instructions

  • The fan may be operated only if the protection against accidental contact is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet and outlet. To do this, fit a SGR protective grille.

Table of contents

Wiring diagram

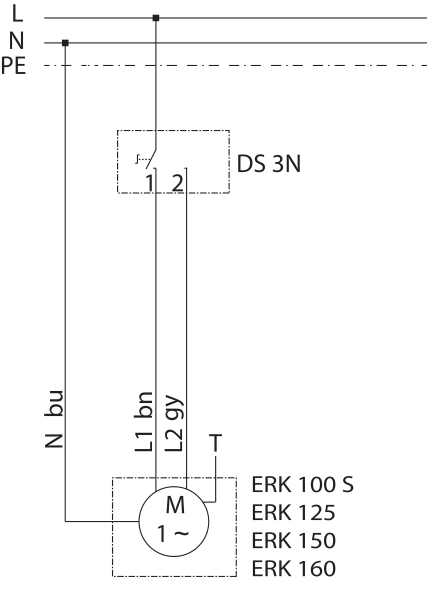

ERK 125 - Wiring diagram
