Diagonal fan

ERK 160

Remaining parts
Article number: 0080.0180
Manufacturer: MAICO
Diagonal fan for duct installation, DN 160, two-level
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
Product data sheet
ERK 160 IM0015672.PNG Diagonal fan for duct installation, DN 160, two-level

Characteristic curve

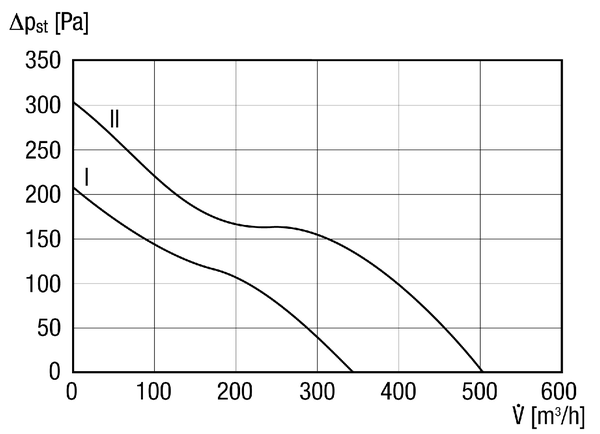

ERK 160 - Characteristic curve

Dimensioned drawing

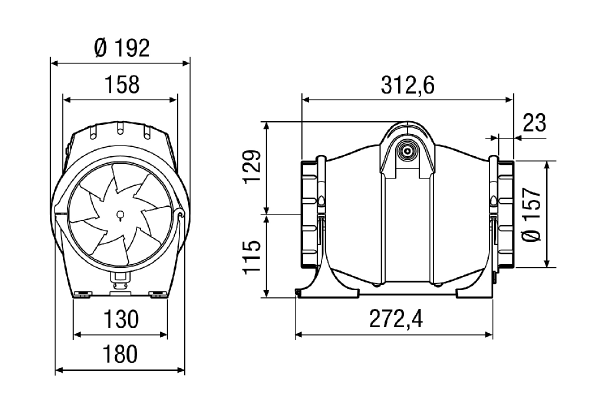

ERK 160 - Dimensioned drawing [mm]

Technical data

ERK 160 - Technical data

Article ERK 160
Model Standard model
Air flow volume 340 m³/h / 500 m³/h
Rotating speed 2.000 1/min / 2.700 1/min
Impeller type diagonal
Speed controllable
Reversing capacity
Rated voltage 230 V
Frequency 50 Hz
Nominal output 60 W / 80 W
Imax 0,27 A / 0,36 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Material PP plastic
Housing material Polypropylene
Colour white-grey
Weight 2,47 kg
Weight including packaging 3,02 kg
Nominal size 160 mm
Width 192 mm
Height 244 mm
Depth 312,6 mm
Width with packaging 245 mm
Height with packaging 290 mm
Depth with packaging 345 mm
Airstream temperature 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799801801
Article number 0080.0180



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, low (dB(A))

47

57

60

60

53

45

32

60

LWA5, high (dB(A))

48

60

63

64

57

48

37

65

LWA5= free inlet sound power level in dB.

Accessories

ERK 160 - Accessories

General accessories

Product description

Productdescription

ERK 160

short description

Diagonal fan for duct installation, DN 160, two-level

Product description

Features

  • Duct fan, made of polypropylene.
  • Connection sockets on the outlet and inlet sides correspond to a folded spiral-seams duct diameter.
  • For direct installation between ducts.
  • Easy inspection and maintenance by simply opening the clamp and removing the fan.
  • Diagonal impeller with downstream stator (exception: ERK 100, axial impeller).

Motor

  • Asynchronous motor, 1, 2 or 3 levels, depending on model.
  • IP 44 degree of protection.
  • Robust motor with ball bearings, maintenance-free.
  • Speed control using phase control or transformer possible (exception: Version T and ST).
  • There can be a physically induced humming noise, through the use of phase angle technology. 5-step transformers are therefore used for speed control in rooms requiring quiet fan operations.
  • Thermal overload protection as a standard feature.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety instructions

  • The fan may be operated only if the protection against accidental contact is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet and outlet. To do this, fit a SGR protective grille.

Table of contents

Wiring diagram

ERK 160 - Wiring diagram

T - Timer



Predecessor - successor

Notes
Inquiry
Product comparison
