Diagonal fan

ERK 200

Article number: 0080.0181
Manufacturer: MAICO
Diagonal fan for duct installation, DN 200, three-level
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
ERK 200 IM0015672.PNG Diagonal fan for duct installation, DN 200, three-level

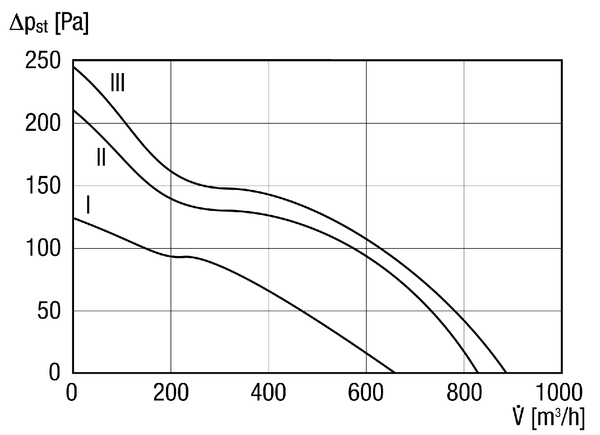

Characteristic curve

ERK 200 - Characteristic curve

  • ERK 200 IM0014891.PNG Diagonal fan for duct installation, DN 200, three-level

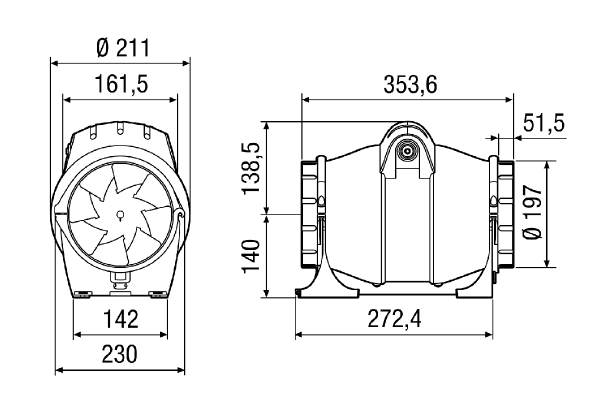

Dimensioned drawing

ERK 200 - Dimensioned drawing [mm]

  • ERK 200 IM0014902.PNG Diagonal fan for duct installation, DN 200, three-level

Technical data

ERK 200 - Technical data

Article ERK 200
Model Standard model
Air flow volume 720 m³/h / 820 m³/h / 910 m³/h
Rotating speed 1.800 1/min / 2.000 1/min / 2.700 1/min
Impeller type diagonal
Speed controllable
Reversing capacity
Rated voltage 230 V
Frequency 50 Hz
Nominal output 55 W / 65 W / 85 W
Power consumption 65 W
Imax 0,24 A / 0,27 A / 0,34 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Housing material Polypropylene
Weight 3,2 kg
Nominal size 200 mm
Width 211 mm
Height 278,5 mm
Depth 353,6 mm
Airstream temperature 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799801818
Article number 0080.0181



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, low (dB(A))

46

52

50

47

40

28

20

50

LWA5, medium (dB(A))

47

56

57

50

44

33

24

54

LWA5, high (dB(A))

47

60

58

55

49

38

29

58

LWA5= free inlet sound power level in dB.

Accessories

ERK 200 - Accessories

General accessories

Product typeNameArt. No.Price*(EUR)Action
Automatic backflow preventerAVM 200093.0006 on request
  • On the notes
Protective grilleSGR 200150.0126 on request
  • On the notes
Electrical air heaterERH 20-20082.0103 on request
  • On the notes
Water air heaterWRH 20-20082.0119 on request
  • On the notes
Air filterTFE 20-40149.0078 on request
  • On the notes
Air filterTFE 20-50149.0062 on request
  • On the notes
Air filterTFE 20-70149.0053 on request
  • On the notes
Speed controllerSTX 1,5New development0157.1561 on request
  • On the notes
Speed controller, distribution boardSTSX 2,5New development0157.1564 on request
  • On the notes
Speed controllerST 1No longer available for delivery0157.0810 on request
  • On the notes
Speed controller, distribution boardSTS 2,5Discontinued product0157.0255 on request
  • On the notes
5-step transformerTRE 0,4-20157.0156 on request
  • On the notes
Speed controllerSTU 1No longer available for delivery0157.0814 on request
  • On the notes

Product description

Productdescription

ERK 200

short description

Diagonal fan for duct installation, DN 200, three-level

Product description

Features

  • Duct fan, made of polypropylene.
  • Connection sockets on the outlet and inlet sides correspond to a folded spiral-seams duct diameter.
  • For direct installation between ducts.
  • Easy inspection and maintenance by simply opening the clamp and removing the fan.
  • Diagonal impeller with downstream stator (exception: ERK 100, axial impeller).

Motor

  • Asynchronous motor, 1, 2 or 3 levels, depending on model.
  • IP 44 degree of protection.
  • Robust motor with ball bearings, maintenance-free.
  • Speed control using phase control or transformer possible (exception: Version T and ST).
  • There can be a physically induced humming noise, through the use of phase angle technology. 5-step transformers are therefore used for speed control in rooms requiring quiet fan operations.
  • Thermal overload protection as a standard feature.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety instructions

  • The fan may be operated only if the protection against accidental contact is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet and outlet. To do this, fit a SGR protective grille.

Table of contents

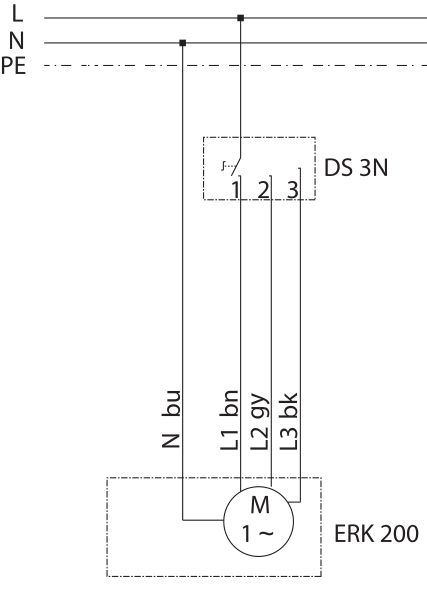

Wiring diagram

ERK 200 - Wiring diagram
