Centrifugal duct fan

ERR 12/1

Article number: 0080.0272
Manufacturer: MAICO
Centrifugal duct fan, DN 125, alternating current
Application examples: Machine extraction unit, Workplace air extraction system, Production site, Storage facility, Laboratory
ERR 12/1 IM0009883.PNG Centrifugal duct fan, DN 125, alternating current

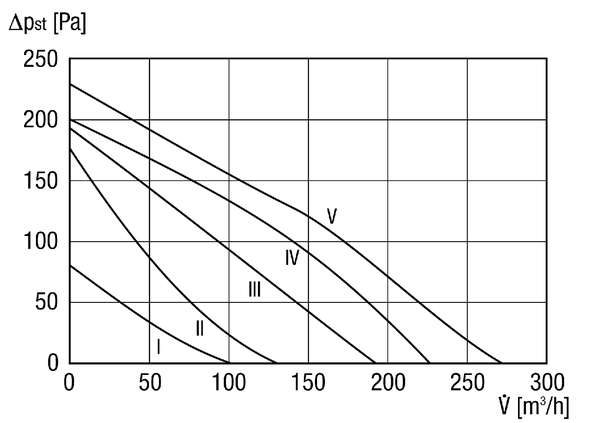

Characteristic curve

ERR 12/1 - Characteristic curve

  • ERR 12/1 IM0002601.PNG Centrifugal duct fan, DN 125, alternating current

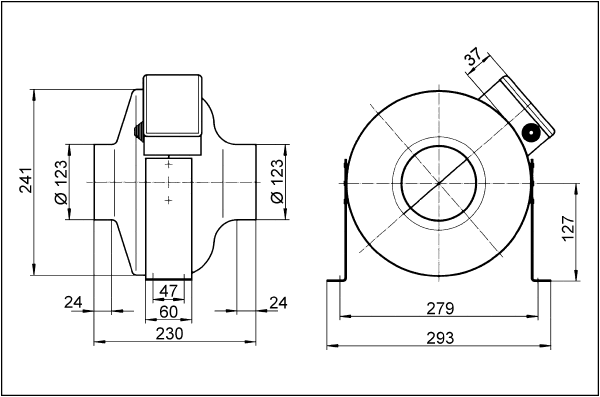

Dimensioned drawing

ERR 12/1 - Dimensioned drawing [mm]

  • ERR 12/1 IM0001589.PNG Centrifugal duct fan, DN 125, alternating current

Technical data

ERR 12/1 - Technical data

Article ERR 12/1
Air flow volume 270 m³/h
Rotating speed 2.336 1/min
Impeller type radial
Speed controllable
SEC average -10 kWh/(m²*a)
Type of voltage Alternating current
Rated voltage 230 / 220 V
Frequency 50 Hz/60 Hz
Nominal output 27 W
Imax 0,13 A
Degree of protection IP X4
Insulation class F
Installation position vertical / horizontal
Housing material Sheet steel, powder coated
Weight 2,8 kg
Nominal size 125 mm
Width 254 mm
Height 291 mm
Depth 230 mm
Airstream temperature at nominal current -20 °C up to 60 °C
Airstream temperature at IMax -20 °C up to 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799802723
Article number 0080.0272



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S1 (dB(A))

14

18

21

19

15

19

1

2

26

LWA2, S2 (dB(A))

13

22

27

32

25

22

10

7

34

LWA2, S3 (dB(A))

22

29

32

35

37

32

29

18

41

LWA2, S4 (dB(A))

26

34

37

40

42

41

38

26

47

LWA2, S5 (dB(A))

29

38

42

45

47

44

44

34

52

LWA5, S1 (dB(A))

19

18

26

30

29

18

5

0

34

LWA5, S2 (dB(A))

24

29

35

40

42

35

23

10

45

LWA5, S3 (dB(A))

31

38

44

50

51

48

39

28

55

LWA5, S4 (dB(A))

36

43

50

56

57

56

47

38

62

LWA5, S5 (dB(A))

39

48

55

61

62

61

53

45

67

LWA6, S1 (dB(A))

17

19

26

27

26

11

0

6

32

LWA6, S2 (dB(A))

23

29

36

38

41

31

20

14

44

LWA6, S3 (dB(A))

32

40

45

48

50

45

38

26

54

LWA6, S4 (dB(A))

36

45

52

54

56

53

47

37

61

LWA6, S5 (dB(A))

40

49

58

60

61

59

54

45

66

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

ERR 12/1 - Accessories

Specific accessories

Product typeNameArt. No.Price*(EUR)Action
Fixing cuffELR 120092.0110 on request
  • On the notes
Mounting footFUR 10/12/160036.0087 on request
  • On the notes

General accessories

Product typeNameArt. No.Price*(EUR)Action
Automatic backflow preventerAVM 120093.0003 on request
  • On the notes
Protective grilleSGR 120150.0124 on request
  • On the notes
Tubular sound absorberRSR 120092.0312 on request
  • On the notes
Tubular sound absorberRSR 12/500092.0322 on request
  • On the notes
Electrical air heaterERH 12-10082.0101 on request
  • On the notes
Water air heaterWRH 12-10082.0117 on request
  • On the notes
Air filterTFE 12-40149.0075 on request
  • On the notes
Air filterTFE 12-50149.0059 on request
  • On the notes
Air filterTFE 12-70149.0050 on request
  • On the notes
Speed controllerSTX 1,5New development0157.1561 on request
  • On the notes
Speed controller, distribution boardSTSX 2,5New development0157.1564 on request
  • On the notes
Speed controllerST 1No longer available for delivery0157.0810 on request
  • On the notes
Speed controller, distribution boardSTS 2,5Discontinued product0157.0255 on request
  • On the notes
5-step transformerTRE 0,4-20157.0156 on request
  • On the notes
Temperature control systemETL 16 PNo longer available for delivery0157.0824 on request
  • On the notes
Temperature control systemDTL 16 P0157.0825 on request
  • On the notes
Channel sensorFL 30 P0157.0780 on request
  • On the notes
Room sensorFR 30 P0157.0781 on request
  • On the notes
Air flow monitorLW 90157.0779 on request
  • On the notes
Speed controllerSTU 1No longer available for delivery0157.0814 on request
  • On the notes

Product description

Productdescription

ERR 12/1

short description

Centrifugal duct fan, DN 125, alternating current

Product description

Features

  • Centrifugal impeller with backwards curved blades.
  • Inlet and outlet side connection couplings for direct installation in ventilation ducts.
  • Mounting foot available as accessory.

Air flow direction

  • Airstream and rotational directions are indicated by arrows marked on the fan housing

Motor

  • External rotor - capacitor motor.
  • Operating capacitor in the terminal box is ready to be connected.
  • Speed controllable.
  • Thermal overload protection as standard feature.
  • Robust motor with ball bearings, maintenance-free.
  • IP X4 degree of protection when installed in ventilation ducts with at least 1 m of duct on the inlet and outlet sides.

Mounting instructions

  • Can be fitted in any position.
  • Use ELR flexible cuffs to prevent transfer of vibrations onto the duct system.

Electrical connection

  • Externally fitted terminal box with cable guide bushes.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit a SGR protective grille.

Table of contents

Wiring diagram

ERR 12/1 - Wiring diagram

ERH... electric air heater with LW 9 air flow monitor and ST speed controller

K1 - heating release (US16T)

ERR .. / 1 - centrifugal fan

LW 9 - air flow monitor

ETL 16 P - electronic temperature controller

DTL 16 P - electronic temperature controller

FL 30P channel sensor

ST.. STU.., STS.. speed controller

ERH - electric air heater

F1 - temperature limiter

F2 - safety temperature limiter

N - night reduction

  1. Only with DTL 16 P


Centrifugal fan


Centrifugal fan with ST/STU/STS speed controller


Centrifugal fan with TRE 5-step transformer


Duct fan with ERH 16-2 R electric air heater

S1 - system on

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

ERH...R electrical air heater: ERH16-2R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL30P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Duct fan with electric air heater DRH 16-5R and DRH 20-6R

S1 - system on

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH16-2R or DRH20-6R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL30P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Duct fan with DRH 25-9R, DRH 31-12R, DRH 35-12R and DRH 40-12R electric air heaters

S1 - system on

S - sensor

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH 25-9R, DRH 31-12R, DRH 35-12R, DRH 40-12R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL60P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P
