Internal grille

ESG 10/2

Article number: 0059.0947
Manufacturer: MAICO
Internal grille for ECA duct-mounted fans, nominal size 100

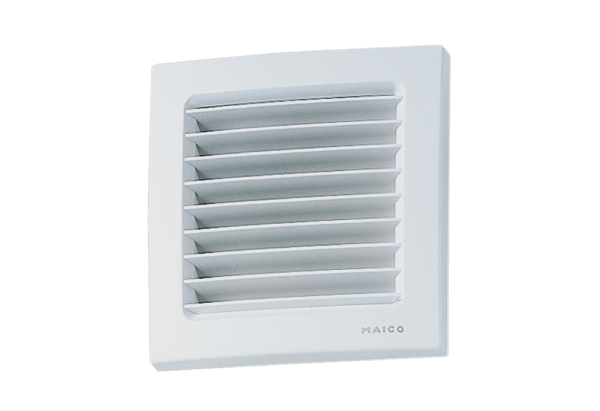

ESG 10/2 IM0009754.PNG Internal grille for ECA duct-mounted fans, nominal size 100

Characteristic curve

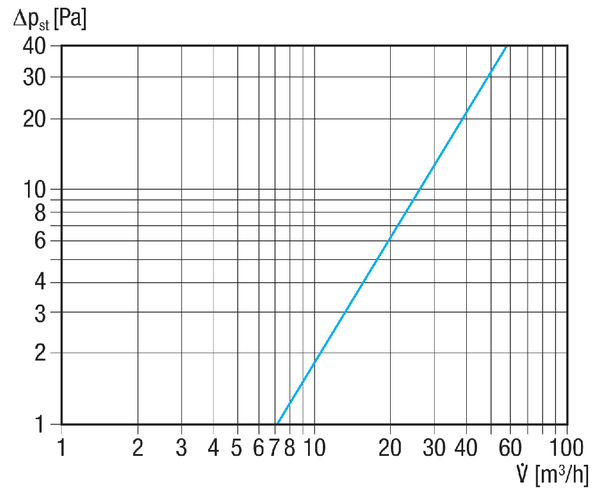

ESG 10/2 - Characteristic curve Exhaust air pressure losses

Dimensioned drawing

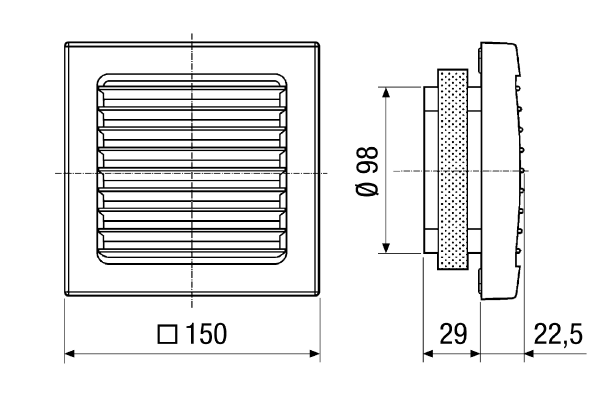

ESG 10/2 - Dimensioned drawing [mm]

Technical data

ESG 10/2 - Technical data

Article ESG 10/2
Air direction Ventilation and air extraction
Installation Inside
Installation site Wall
Type of installation Surface-mounted
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,1 kg
Filter class G2
Suitable for nominal size 100 mm
Width 150 mm
Height 150 mm
Depth 51,5 mm
Ambient temperature 60 °C
Packing unit 1 piece
Range A
GTIN (EAN) 4012799599470
Article number 0059.0947

Accessories / Accessories of

ESG 10/2 - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Air filter, replacement ZRF 0093.0923 on request
  • On the notes

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Exhaust air system ZEG 2000 - - -

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Duct-mounted fan ECA 11 E 0080.0460 on request
  • On the notes
Centralised exhaust air unit ZEG2 EC - - -
Centralised exhaust air unit ZEG 2000 P - - -
Aeronom room air system WS 600 - - -
Centralised exhaust air unit ZEG EC - - -
Small room fan AKE 100 0084.0220 on request
  • On the notes

Product description

Productdescription

ESG 10/2

short description

Internal grille for ECA duct-mounted fans, nominal size 100

Product description

  • Internal grille for ventilation and air extraction.
  • With air filter.
  • With covered screw holes.
  • Cover can be removed without tools for cleaning.
  • Sealing tape included in the scope of delivery.
  • Accessories: ZRF.. spare air filter.
