Sound-insulated ventilation box

ESR 20/1

No longer available for delivery
Article number: 0080.0283
Manufacturer: MAICO
Sound-insulated ventilation box, DN 200, single-phase AC
ESR 20/1 IM0009882.PNG Sound-insulated ventilation box, DN 200, single-phase AC

Characteristic curve

ESR 20/1 - Characteristic curve

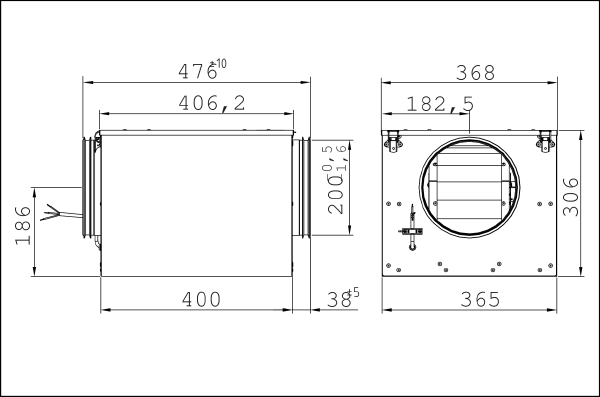

Dimensioned drawing

ESR 20/1 - Dimensioned drawing [mm]

Technical data

ESR 20/1 - Technical data

Article ESR 20/1
Air flow volume 700 m³/h
Rotating speed 1.450 1/min
Speed controllable
Nominal output 140 W
Inom 0,6 A
Imax 0,6 A
Degree of protection IP X4
Insulation class B
Weight 15,3
Nominal size 200 mm
Airstream temperature at nominal current 45 °C
Airstream temperature at IMax 45 °C / Required Delta pst min = 50 Pa
Packing unit 1 piece
Range C
EAN 4012799802839
Article number 0080.0283



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S5 (dB(A))

48

40

41

30

22

22

21

49

LWA5, S5 (dB(A))

49

48

46

43

42

44

41

54

LWA6, S5 (dB(A))

50

53

58

66

64

63

59

70

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

ESR 20/1 - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AS 20 0151.0330 on request
  • On the notes
Automatic backflow preventer AVM 20 0093.0006 on request
  • On the notes
External grille MLA 20 0151.0111 on request
  • On the notes
External grille MLZ 20 0151.0101 on request
  • On the notes
Protective grille SGR 20 0150.0126 on request
  • On the notes
Tubular sound absorber RSR 20 0092.0316 on request
  • On the notes
Tubular sound absorber RSR 20/50 0092.0326 on request
  • On the notes
Electrical air heater ERH 20-2 0082.0103 on request
  • On the notes
Electrical air heater DRH 20-5 0082.0106 on request
  • On the notes
Electrical air heater with controller DRH 20-6 R 0082.0144 on request
  • On the notes
Water air heater WRH 20-2 0082.0119 on request
  • On the notes
Air filter TFE 20-4 0149.0078 on request
  • On the notes
Air filter TFE 20-5 0149.0062 on request
  • On the notes
Air filter TFE 20-7 0149.0053 on request
  • On the notes
Speed controller ST 1 0157.0810 on request
  • On the notes
Speed controller STU 1 0157.0814 on request
  • On the notes
Speed controller, distribution board STS 2,5 0157.0255 on request
  • On the notes
Heat exchanger WT 750 No longer available for delivery 0152.0041 on request
  • On the notes
TRE 0,6 No longer available for delivery 0016.0111 on request
  • On the notes
5-step transformer, control cabinet TRE 1,6 S No longer available for delivery 0157.0744 on request
  • On the notes

Product description

Productdescription

ESR 20/1

short description

Sound-insulated ventilation box, DN 200, single-phase AC

Table of contents

Wiring diagram

ESR 20/1 - Wiring diagram

ESR ... with distributor

V - distributor (supplied by the customer)



Predecessor - successor

ESR 20/1 - Successor

Product type Name Art. No. Action
Sound-insulated ventilation box ESR 20-2 No longer available for delivery 0080.0612
  • On the notes
Sound-insulated ventilation box ESR 20-2 No longer available for delivery 0080.0058
  • On the notes
