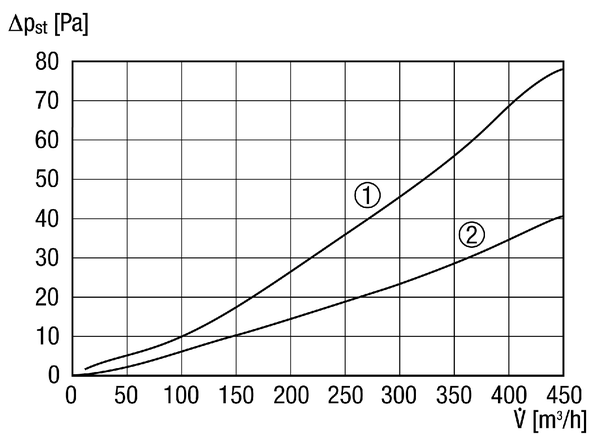

EW-K 225 - Characteristic curve
- With filter
- Without filter

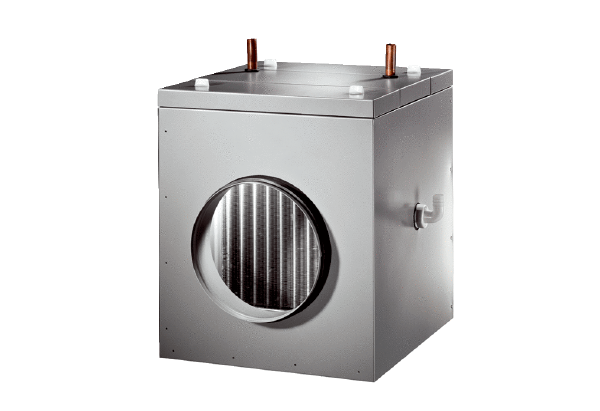

Brine-air heat exchanger
EW-K 225
No longer available for deliveryManufacturer: MAICO
Brine-air heat exchanger for brine geothermal heat exchanger, DN 225 with 30 mm thermal insulation and... more information
Application examples: Single-family houses in combination with ventilation units with heat recovery, Low-energy and passive houses
Product data sheet
Characteristic curve
Dimensioned drawing

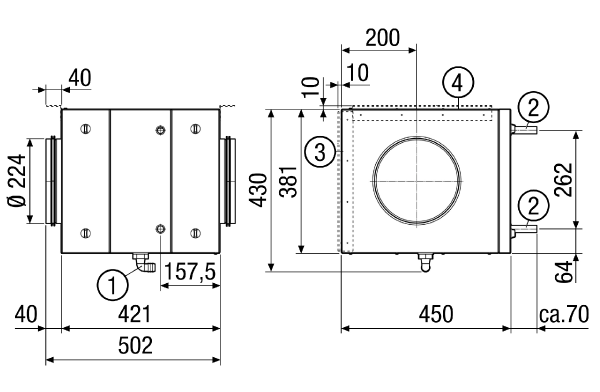

EW-K 225 - Dimensioned drawing [mm]
- Condensation drain, 3/4"
- Brine connection, Ø 18 mm
- Wall mounting bracket
- Ceiling mounting bracket
Technical data
EW-K 225 - Technical data
Accessories / Accessories of
EW-K 225 - Accessories / Accessories of
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Air filter, replacement | EW-F | 0093.1231 | on request | |
| Brine pump controller | EW-S No longer available for delivery | 0157.0203 | on request | |
| Pressure duct | EW-D No longer available for delivery | 0059.0200 | on request | |
| Accessories set | EW-Z No longer available for delivery | 0092.0488 | on request | |
| Glycosol N | EW-G No longer available for delivery | 0331.0011 | on request |
is a general accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| WS ventilation unit | WS | - | - | - |
| WR ventilation unit | WR | - | - | - |
| Aeronom room air system | WRG EC | - | - | - |
| Centralised ventilation unit | WS 250 No longer available for delivery | 0095.0050 | on request | |
| Aeronom room air system | WS 600 No longer available for delivery | 0095.0056 | on request |
Product description
Productdescription
EW-K 225
short description
Brine-air heat exchanger for brine geothermal heat exchanger, DN 225 with 30 mm thermal insulation and integrated G4 air filter, max. volumetric flow 450 m³/hProduct description
- Brine-air heat exchanger for transferring the warmth from the brine to the outside air.
- Protects the heat exchanger of the ventilation unit from freezing up in the winter (up to -15 °C outside air temperature).
- Cools the outside air in the summer.
- Condensation drain with 3/4" connection below.
- The connection between the register and the PE duct is done by the customer.
Wiring diagram
EW-K 225 - Wiring diagram
Downloads / Videos
EW-K 225 - Downloads / Videos
Predecessor - successor
EW-K 225 - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Brine-air heat exchanger | EW-K 160 No longer available for delivery | 0192.0404 | |
| Brine-air heat exchanger | EW-K 200 No longer available for delivery | 0192.0413 |
