Axial roof fan

DZD25-2A

No longer available for delivery
Article number: 0087.0413
Manufacturer: MAICO
EZD, DZD roof fans with A motors

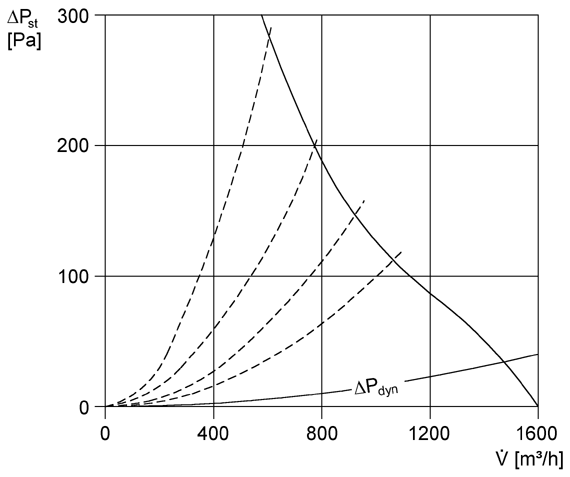

Characteristic curve

DZD25-2A - Characteristic curve DZD...D with VE shutter, RKP and MS 8, MS 8 P servomotor

* - limit switch only for MS 8 P

S - control circuit

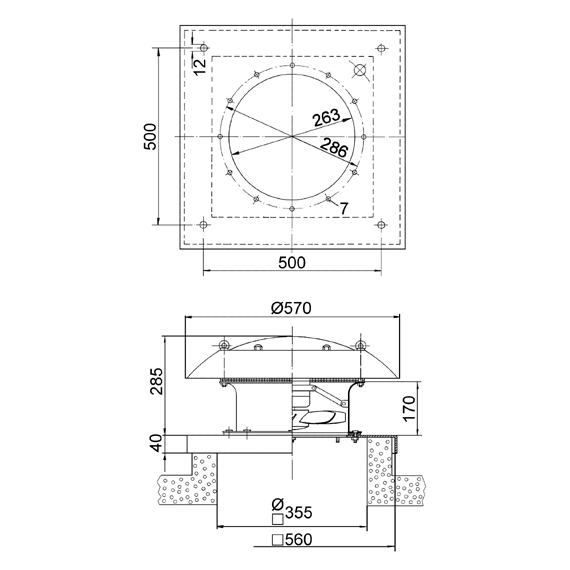

Dimensioned drawing

DZD25-2A - Dimensioned drawing [mm]

Technical data

DZD25-2A - Technical data

Article DZD25-2A
Air flow volume 1.700 m³/h
Rotating speed 2.850 1/min
Power consumption 220 W
Imax 0,4 A
Degree of protection IP 55
Pole-changeable
Installation site Roof
Installation position vertical
Material Sheet steel, galvanised
Weight 11,5
Packing unit 1 piece
Article number 0087.0413



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, high (dB(A))

87

LWA5= free inlet sound power level in dB.

DZD25-2A -

Product description

Productdescription

DZD25-2A

short description

EZD, DZD roof fans with A motors

Table of contents

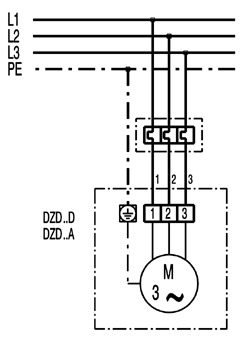

Wiring diagram

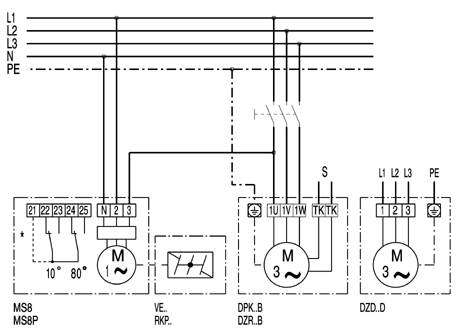

DZD25-2A - Wiring diagram



DZD...D with VE shutter, RKP and MS 8, MS 8 P servomotor

* Limit switch only for MS 8 P

S control circuit



Predecessor - successor

DZD25-2A - Successor

Product type Name Art. No. Action
Axial roof fan DZD 25/2 B 0087.0213
