Axial roof fan

EZD35-4A

No longer available for delivery
Article number: 0087.0407
Manufacturer: MAICO
EZD, DZD roof fans with A motors

Characteristic curve

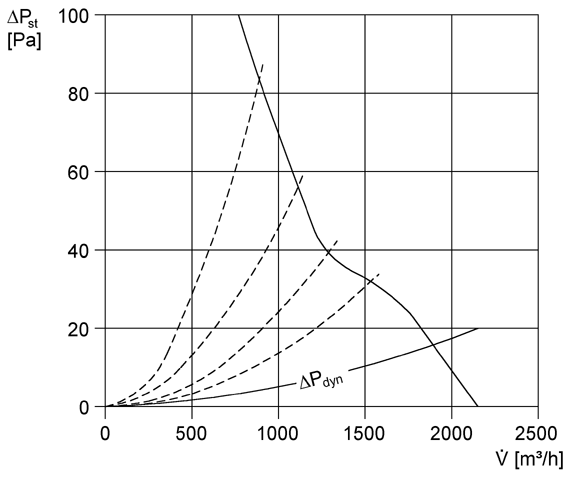

EZD35-4A - Characteristic curve

  • EZD35-4A IM0009189.PNG EZD, DZD roof fans with A motors

Dimensioned drawing

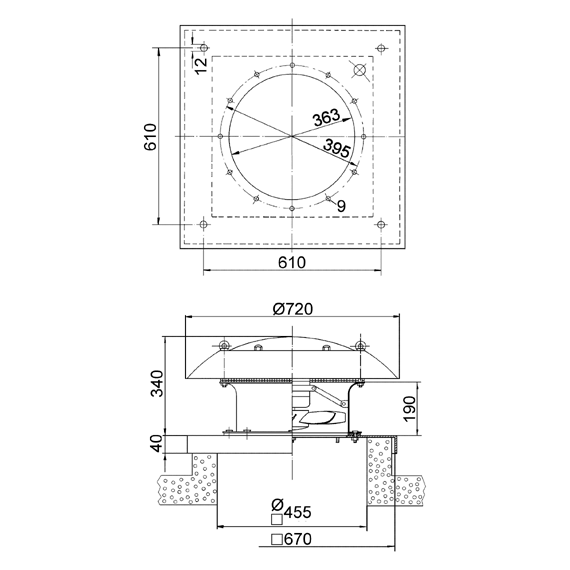

EZD35-4A - Dimensioned drawing [mm]

  • EZD35-4A IM0009106.PNG EZD, DZD roof fans with A motors

Technical data

EZD35-4A - Technical data

Article EZD35-4A
Air flow volume 2.150 m³/h
Rotating speed 1.425 1/min
Power consumption 140 W
Imax 0,6 A
Degree of protection IP 55
Pole-changeable
Installation site Roof
Installation position vertical
Material Sheet steel, galvanised
Weight 18
Packing unit 1 piece
Article number 0087.0407



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, high (dB(A))

77

LWA5= free inlet sound power level in dB.

EZD35-4A -

Product description

Productdescription

EZD35-4A

short description

EZD, DZD roof fans with A motors

Table of contents

Wiring diagram

EZD35-4A - Wiring diagram

EZD...D for ventilation

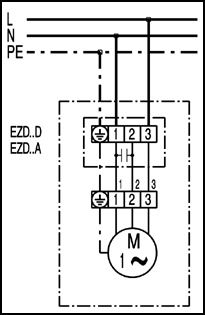

Right-hand rotation: EZD...D with air drawn across the motor



EZD...D for air extraction

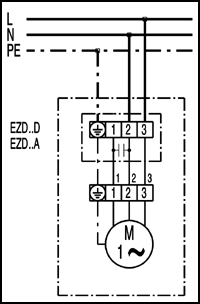

Right-hand rotation: EZD...D with air blown across the motor

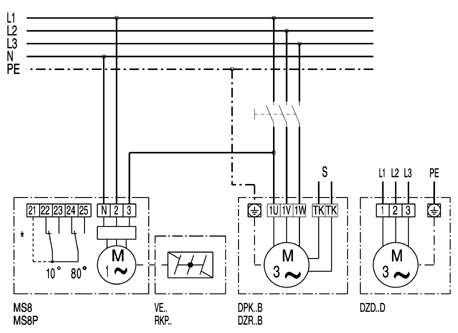

EZD...D with VE shutter, RKP and MS 8, MS 8 P servomotor

* Limit switch only for MS 8 P

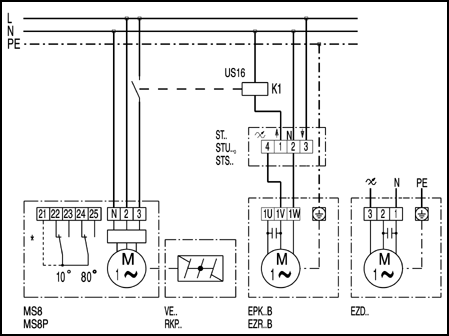

EZD... with VE shutter, RKP and ST, STU, STS speed controller

* Limit switch only for MS 8 P



Predecessor - successor

EZD35-4A - Successor

Product typeNameArt. No.Action
Axial roof fanEZD 35/4 B0087.0207
