Axial roof fan

DZD 50/4 B

Article number: 0087.0226
Manufacturer: MAICO
Axial roof fan, horizontal air outlet, DN 500, three-phase AC
Application examples: Production facility, Workplace, Commercial premises, Restaurant, Showroom
DZD 50/4 B IM0009965.PNG Axial roof fan, horizontal air outlet, DN 500, three-phase AC

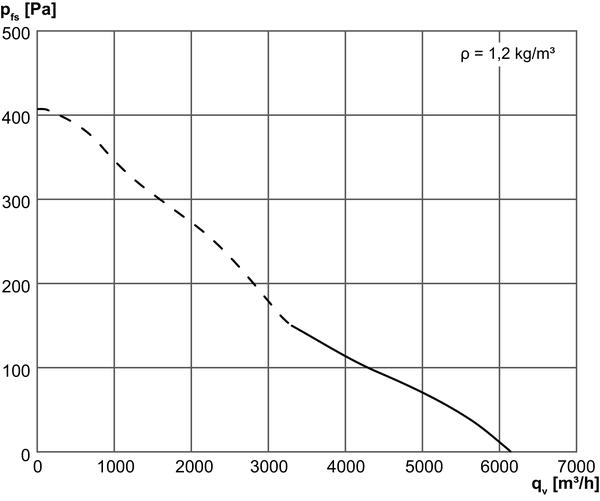

Characteristic curve

DZD 50/4 B - Characteristic curve

Dimensioned drawing

DZD 50/4 B - Dimensioned drawing [mm]

Technical data

DZD 50/4 B - Technical data

Article DZD 50/4 B
Air flow volume 6.170 m³/h
Air volumenom 3.600 m³/h / in opt. efficiency
Pressure pfs, nom 140 Pa / in opt. efficiency
Rotating speed nnom 1.400 1/min / in opt. efficiency
Rotating speed 1.405 1/min
Impeller type axial
Speed controllable
Reversing capacity
Type of voltage Three-phase AC
Rated voltage 400 V
Frequency 50 Hz
Nominal output 665 W / in opt. efficiency
Inom 1,2 A / in opt. efficiency
Imax 1,4 A
Degree of protection IP 55
Insulation class F
Mains cable 7 / 1,5 mm²
Installation site Roof
Installation position vertical
Material Sheet steel, galvanised
Weight 38,5 kg
Nominal size 500 mm
Width 940 mm
Height 940 mm
Depth 420 mm
Airstream temperature at nominal current -20 °C up to 60 °C
Airstream temperature at IMax -20 °C up to 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799872269
Article number 0087.0226
Article DZD 50/4 B
Total efficiency η 36,7 %
Measurement category C
Efficiency category static
Efficiency level N 44,2
Year of manufacture see rating plate
Manufacturer’s name / official registration number / manufacturer's place of establishment Maico Elektroapparate-Fabrik GmbH / Freiburg registration court, HRB 601233 / Villingen-Schwenningen
Art. No. 0087.0226
PBEP / Air volumeBEP / Pfs, BEP 0,645 kW / 6.550 m³/h / 130 Pa
nBEP 1.400 1/min
Specific ratio ≈ 1
Information about dismantling and disposal see mounting instructions
Information about installation, operation and repairs see mounting instructions
Objects used to measure efficiency which are not described by the measurement category Calculation of energy efficiency without protective grille and roof cowl.
Sound power levelLWA7 91 dB(A)



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, high (dB(A))

91

LWA7= housing and free inlet sound power level in dB.

Accessories

DZD 50/4 B - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Control shutter JRE 50 0151.0394 on request
  • On the notes
Servomotor MS 8 0157.0760 on request
  • On the notes
Servomotor MS 8 P 0157.0761 on request
  • On the notes
Protective grille, metal SG 50 0150.0120 on request
  • On the notes
Flexible coupling ELA 50 0092.0271 on request
  • On the notes
Flexible cuff EL 50 0092.0092 on request
  • On the notes
Counter flange GF 50 0056.0008 on request
  • On the notes
Counter socket GS 50 0055.0174 on request
  • On the notes
Suction nozzle AD 50 0180.0625 on request
  • On the notes
Socket sound absorber SD 50 0092.0344 on request
  • On the notes
Main switch, service switch HS 3 0157.0736 on request
  • On the notes
Rotary switch DS 10 0157.0410 on request
  • On the notes
Reversing switch W 1 0157.0101 on request
  • On the notes
Reversing switch WU 1 0157.0102 on request
  • On the notes
Contactor US 16 T 0157.0769 on request
  • On the notes
5-step transformer TR 2,5-2 0157.0149 on request
  • On the notes
5-step transformer, control cabinet TR 2,5 S-2 0157.0152 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformers DSS 20 0157.0750 on request
  • On the notes
Thermostat THR 10 0157.0774 on request
  • On the notes
Thermostat TH 10 0157.0764 on request
  • On the notes
Thermostat TH 16 0157.0748 on request
  • On the notes
Air flow monitor LW 9 0157.0779 on request
  • On the notes
Hygrostat HY 230 0157.0126 on request
  • On the notes
Hygrostat HY 230 I 0157.0127 on request
  • On the notes
Hygrostat HY 10 AP Discontinued product 0157.0358 on request
  • On the notes
Hygrostat HY 10 UP Discontinued product 0157.0357 on request
  • On the notes
Air quality controller EAQ 10/1 0157.0777 on request
  • On the notes
Roof socket for flat roofs SO 50 0093.0364 on request
  • On the notes
Roof socket for pitched roofs SDS 50 0093.1029 on request
  • On the notes
Roof socket for corrugated and trapezoidal roofs SOWT 50 0093.1032 on request
  • On the notes

Product description

Productdescription

DZD 50/4 B

short description

Axial roof fan, horizontal air outlet, DN 500, three-phase AC

Product description

Features

  • Housing, base plate, intake nozzle and rain protection cover made of galvanised sheet steel.
  • Galvanized protective grille on the discharge side, protection against accidental contact in accordance with DIN EN ISO 13857.
  • Sturdy eyebolts enable transport by crane.
  • 8-blade impeller made of glass-fibre filled polyamide. Dynamically balanced at two levels, in accordance with performance level 6.3, DIN ISO 1940, Part 1.
  • Can be switched to ventilation or air extraction (exception EZD ... E).

Air flow direction

  • The following illustration shows the air flow direction:
  1. Standard air flow direction: With air blown across the motor.
  2. Reversing mode: With air drawn across the motor.
  3. Reverse operation (exception EZD ... E): The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.

Motor

  • Asynchronous motor.
  • Reversible. Exception: Fans with shaded-pole motors (".../E").
  • Thermal overload protection as a standard feature.

Three-phase AC motor

  • DZD model series.
  • Rated voltage 400 V, 50 Hz.
  • Degree of protection for DZD... D IP 54.
  • Degree of protection for DZD... B and ... E IP 55.

Electrical connection

  • Connecting cable, approx. 1.7 m long.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857.

Special versions

  • The following special versions are available on request, at an extra cost:
    • Special voltages and frequencies.
    • Fans with enhanced anti-corrosion protection.
    • Impellers made of aluminium.
  • Information on operation at temperatures occasionally below -20 °C available upon request.
  • If operating with frequency converters, the factory must be consulted.
  • Feasibility must be checked in each case.

Table of contents

Wiring diagram

DZD 50/4 B - Wiring diagram

DZD ..B left-hand operation (air extraction) = standard

1 speed setting.

S - control circuit

For right-hand operation, swap 2 phases on fan connection.



DZD .. B with MV 25 motor protection switch

Left-hand operation (air extraction) = standard

For right-hand operation, swap 2 phases on fan connection.



DZD ..B with TR.. 5-step transformer and MV 25 motor protection switch

Left-hand operation (air extraction) = standard

For right-hand operation, swap 2 phases on fan connection.



Predecessor - successor

DZD 50/4 B - Predecessor

Product type Name Art. No. Action
Axial roof fan DZD50-4A No longer available for delivery 0087.0426
