EZF 20/4 E

Article number: 0085.0484
Manufacturer: MAICO
Axial wall fan for recessed-mounted installation, DN 200, single-phase AC
Application examples: Changing room, Foreman's office, Restaurant, Garage, Fitness room
Product data sheet
EZF 20/4 E IM0009978.PNG Axial wall fan for recessed-mounted installation, DN 200, single-phase AC

Characteristic curve

EZF 20/4 E - Characteristic curve

Dimensioned drawing

EZF 20/4 E - Dimensioned drawing [mm]

  1. Protective grille on intake side
  2. Air flow direction with air drawn across the motor

Technical data

EZF 20/4 E - Technical data

Article EZF 20/4 E
Model Wall sleeve
Air flow volume 500 m³/h
Rotating speed 1.380 1/min
Impeller type axial
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 30 W
Power consumption 35 W
Inom 0,23 A
Imax 0,25 A
Degree of protection IP 54
Insulation class E
Mains cable 3 x 1,5 mm²
Installation site Wall / Ceiling
Type of installation Recessed-mounted
Installation position horizontal / vertical
Material Sheet steel, galvanised
Colour Silver
Weight 3,3 kg
Weight including packaging 3,88 kg
Nominal size 200 mm
Width 258 mm
Height 258 mm
Depth 240 mm
Width with packaging 265 mm
Height with packaging 345 mm
Depth with packaging 345 mm
Airstream temperature at nominal current -20 °C up to 60 °C
Airstream temperature at IMax -20 °C up to 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799854845
Article number 0085.0484



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, S5 (dB(A))

23

42

45

51

49

50

44

30

56

LWA7= housing and free inlet sound power level in dB.

Accessories

EZF 20/4 E - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AS 20 0151.0330 on request
  • On the notes
Shutter, manual RS 20 0151.0338 on request
  • On the notes
Servomotor MS 2 0093.0403 on request
  • On the notes
External grille MLA 20 0151.0111 on request
  • On the notes
External grille MLZ 20 0151.0101 on request
  • On the notes
Extension sleeve VH 20 0055.0030 on request
  • On the notes
Internal grille IG 20 0059.0171 on request
  • On the notes
Dark room attachment ZDK 25 0093.0350 on request
  • On the notes
Air filter ZFF 20 0149.0001 on request
  • On the notes
Main switch, service switch HS 3 0157.0736 on request
  • On the notes
Rotary switch DS 10 0157.0410 on request
  • On the notes
Contactor US 16 T 0157.0769 on request
  • On the notes
Cellar dehumidification control AKE 0157.0129 on request
  • On the notes
Speed controller STX 1,5 0157.1561 on request
  • On the notes
Speed controller, distribution board STSX 2,5 0157.1564 on request
  • On the notes
5-step transformer TRE 0,4-2 0157.0156 on request
  • On the notes
5-step transformer, control cabinet TRE 1,6 S-2 0157.0162 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformers ESS 20 0157.0749 on request
  • On the notes
Thermostat THR 10 Discontinued product 0157.0774 on request
  • On the notes
Thermostat THR 10-1 0157.0191 on request
  • On the notes
Thermostat TH 10 0157.0764 on request
  • On the notes
Thermostat TH 16 0157.0748 on request
  • On the notes
Thermostat THD 10 Discontinued product 0157.0775 on request
  • On the notes
Temperature control system EAT 6 G/1 0157.0808 on request
  • On the notes
Temperature control system EAT 6 TG Discontinued product 0157.0755 on request
  • On the notes
Hygrostat HY 230 0157.0126 on request
  • On the notes
Hygrostat HY 230 I 0157.0127 on request
  • On the notes
Air quality controller EAQ 10/1 Discontinued product 0157.0777 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller STU 1 No longer available for delivery 0157.0814 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
Hygrostat HY 10 AP No longer available for delivery 0157.0358 on request
  • On the notes
Hygrostat HY 10 UP No longer available for delivery 0157.0357 on request
  • On the notes

Product description

Productdescription

EZF 20/4 E

short description

Axial wall fan for recessed-mounted installation, DN 200, single-phase AC

Product description

Single-phase AC model

  • Axial wall fan for flush-mounted installation, single-phase AC version.

Brief description

  • For flush mounting.
  • Can be fitted in any position.
  • Wall sleeve made of galvanised sheet steel.
  • 8-blade impellers made of glass-fibre reinforced polyamide
  • Protective grille made of plastic on the intake side, pearl white, protection against accidental contact in accordance with DIN EN 13857.
  • Thermal overload protection as a standard feature.
  • Vibration-free running due to dynamically balanced impeller and motor (shaft-rotor), according to quality class 6.3, DIN ISO 1940, part 1.
  • High efficiency on the ventilation side, low operating noise.
  • Increased durability due to high-quality materials such as quiet ball bearings.
  • Fans are maintenance-free.
  • Reversible operation of the fans possible.
  • Customer-specific special voltages available, as special designs, on request and at extra cost.

Air flow direction

  • The air flow direction is marked.
  • Standard exhaust air mode, air flow direction with air drawn across motor.

Single-phase AC motor

  • Asynchronous motor.
  • Rated voltage 230 V, 50 Hz.
  • IP 54 degree of protection. Exception EZF... D, EZF ... E IP 54.
  • Fans “... B”: Capacitor motors with operating capacitor on the protective grille or on the wall sleeve. IP 55 degree of protection.
  • Fans “... D”: Capacitor motors with operating capacitor in terminal box. IP 54 degree of protection.
  • Fans “... E”: Shaded-pole motors, non-reversible.
  • Thermal overload protection as a standard feature.
  • Speed controllable. Units can be steplessly controlled with optional speed controllers or they can be steplessly switched with an optional 5-step transformer.
  • Reversible. Exception: For fans with shaded-pole motor (“... E”).
  • Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
  • Not suitable for ventilating steam-saturated air.

Electrical connection

  • On terminal block in end cover of the motor.

Safety information

  • The fan can be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN 13857 for fans with a free inlet.

Special versions

  • The following special versions are available on request, at an extra cost:
    • Special voltages and frequencies.
    • Single-phase motors with thermal contacts or PTC thermistor, potential-free terminal connection.
    • Impellers made of aluminium.
  • Information on operation at temperatures occasionally below -20°C available upon request.
  • If operating with frequency converters, the factory must be consulted.
  • Feasibility must be checked in each case.

Table of contents

Wiring diagram

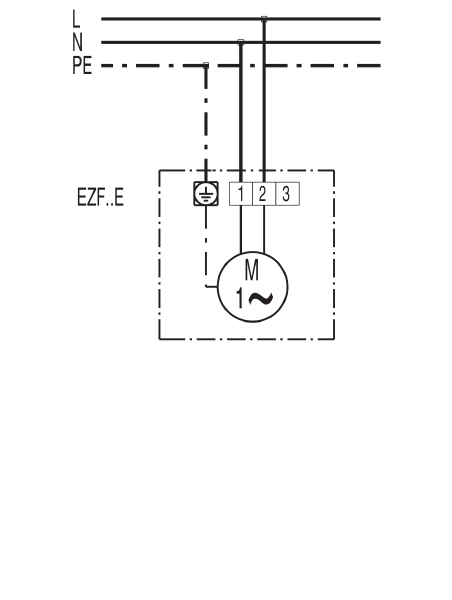

EZF 20/4 E - Wiring diagram
