Counter socket

GS 30

Article number: 0055.0170
Manufacturer: MAICO
Counter socket for fitting DN 300 flexible cuffs on ventilation ducts

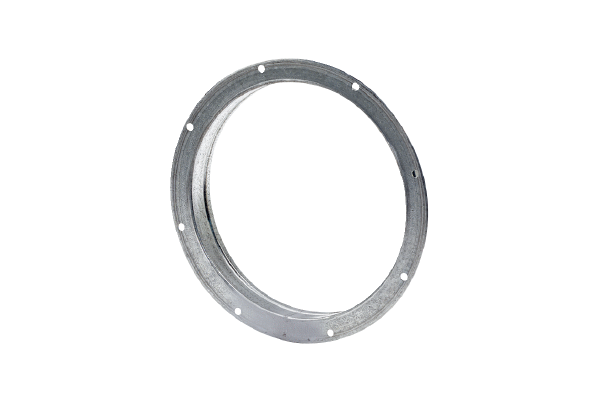

GS 30 IM0009984.PNG Counter socket for fitting DN 300 flexible cuffs on ventilation ducts

Characteristic curve

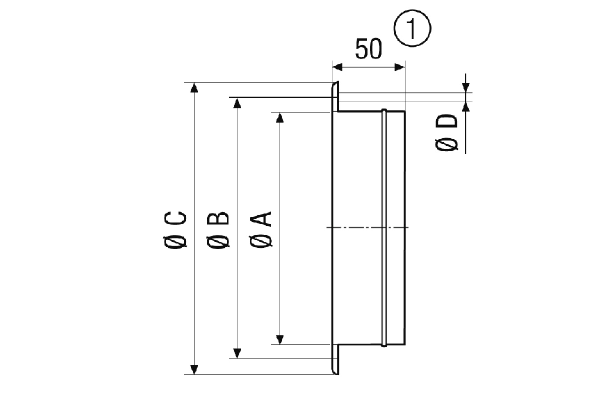

Dimensioned drawing

GS 30 - Dimensioned drawing [mm]

  1. GS 56: 55 mm
A: 313 mm
B: 356 mm
C: 380 mm
D: 10 mm

Technical data

GS 30 - Technical data

Article GS 30
Material Sheet steel, galvanised
Weight 0,7 kg
Suitable for nominal size cuffs 300 mm
Width 380 mm
Height 380 mm
Depth 50 mm
Packing unit 1 piece
Range C
EAN 4012799551706
Article number 0055.0170

Accessories of

GS 30 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Axial duct fan EZR, DZR - DN 300 - - -
Axial roof fan EZD, DZD - DN 300 - - -
Axial duct fan DZR-Ex e- DN 300 - - -
Axial roof fan DZD-Ex e- DN 300 - - -
Axial duct fan EZR, DZR - DN 300 - - -
Axial duct fan EZL, DZL - DN 300 - - -

Product description

Productdescription

GS 30

short description

Counter socket for fitting DN 300 flexible cuffs on ventilation ducts

Product description

  • Counter socket for fitting flexible cuffs on ventilation ducts.
  • Suited to assembly of folded spiral-seams duct in combination with EL / EL Ex flexible cuffs only.
