Outside air wall connection

KW-AL 16W

Article number: 0152.0078
Manufacturer: MAICO
Outside air wall supports, DN 160, colour pure white, similar to RAL 9010
Application examples: Single-family house, Multiple family unit, New build, Redevelopment
Product data sheet

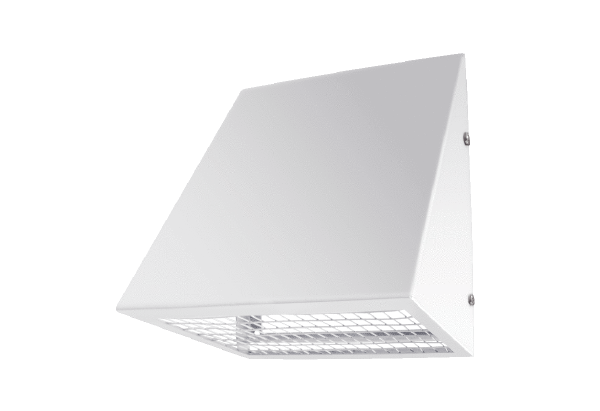

KW-AL 16W IM0015664.PNG Outside air wall supports, DN 160, colour pure white, similar to RAL 9010

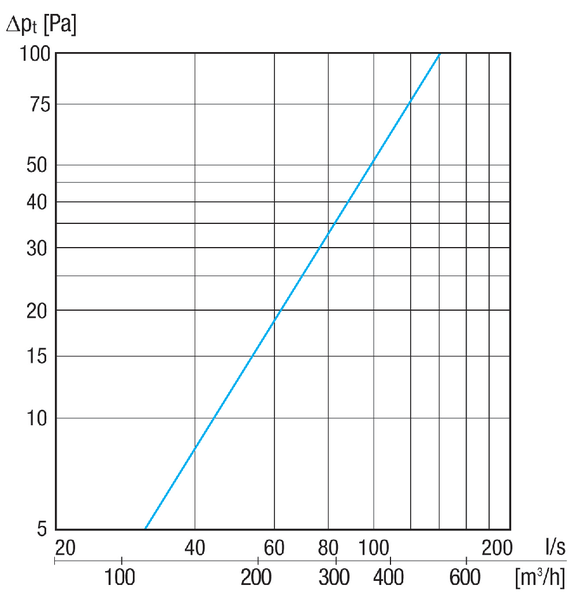

Characteristic curve

KW-AL 16W - Characteristic curve

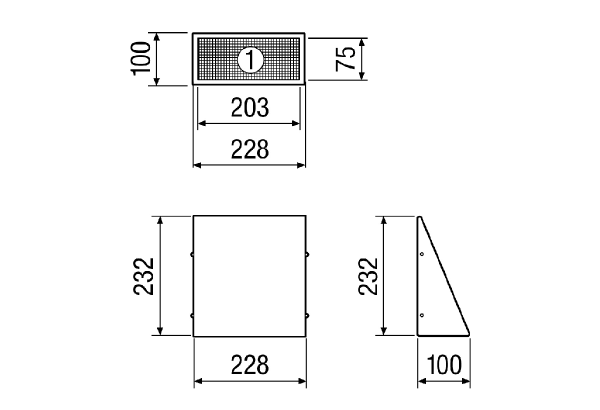

Dimensioned drawing

KW-AL 16W - Dimensioned drawing [mm]

  1. View from below - outside air intake

Technical data

KW-AL 16W - Technical data

Article KW-AL 16W
Air direction Ventilation
Installation site Outside wall
Material Stainless steel (V2A)
Colour Pure white, similar to RAL 9010
Weight 0,91 kg
Weight including packaging 1,04 kg
Nominal size 160 mm
Width 228 mm
Height 232 mm
Depth 100 mm
Width with packaging 250 mm
Height with packaging 250 mm
Depth with packaging 110 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799520788
Article number 0152.0078

Accessories of

KW-AL 16W - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised ventilation unit WS 170 R 0095.0276 on request
  • On the notes
Centralised ventilation unit WS 170 RET 0095.0277 on request
  • On the notes
Centralised ventilation unit WS 170 L 0095.0278 on request
  • On the notes
Centralised ventilation unit WS 170 LET 0095.0279 on request
  • On the notes
Centralised ventilation unit WS 170 KR 0095.0280 on request
  • On the notes
Centralised ventilation unit WS 170 KRET 0095.0281 on request
  • On the notes
Centralised ventilation unit WS 170 KL 0095.0282 on request
  • On the notes
Centralised ventilation unit WS 170 KLET 0095.0283 on request
  • On the notes
Centralised ventilation unit WS 170 KBR 0095.0087 on request
  • On the notes
Centralised ventilation unit WS 170 KBRET 0095.0114 on request
  • On the notes
Centralised ventilation unit WS 170 KBL 0095.0088 on request
  • On the notes
Centralised ventilation unit WS 170 KBLET 0095.0115 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Centralised ventilation unit WS 150 R No longer available for delivery 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L No longer available for delivery 0095.0058 on request
  • On the notes
Centralised ventilation unit WS 170 R No longer available for delivery 0095.0081 on request
  • On the notes
Centralised ventilation unit WS 170 RET No longer available for delivery 0095.0110 on request
  • On the notes
Centralised ventilation unit WS 170 L No longer available for delivery 0095.0082 on request
  • On the notes
Centralised ventilation unit WS 170 KBR No longer available for delivery 0095.0085 on request
  • On the notes
Centralised ventilation unit WS 170 LET No longer available for delivery 0095.0111 on request
  • On the notes
Centralised ventilation unit WS 170 KBL No longer available for delivery 0095.0086 on request
  • On the notes
Centralised ventilation unit WS 170 KR No longer available for delivery 0095.0083 on request
  • On the notes
Centralised ventilation unit WS 170 KRET No longer available for delivery 0095.0112 on request
  • On the notes
Centralised ventilation unit WS 170 KL No longer available for delivery 0095.0084 on request
  • On the notes
Centralised ventilation unit WS 170 KLET No longer available for delivery 0095.0113 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes

Product description

Productdescription

KW-AL 16W

short description

Outside air wall supports, DN 160, colour pure white, similar to RAL 9010

Product description

  • The attractive stainless steel outside air wall supports are fitted on the outside wall of a building and are intended for outside air intake.
  • The outside air is drawn in at the bottom.
  • An outside air cowl with bird protection grille is included in the scope of delivery.

Table of contents

Wiring diagram

KW-AL 16W - Wiring diagram

Predecessor - successor

Notes
Inquiry
Product comparison
