Outgoing air wall connection

KW-FL 16W

Article number: 0152.0080
Manufacturer: MAICO
Outgoing air wall supports, DN 160, colour pure white, similar to RAL 9010
Application examples: Single-family house, Multiple family unit, New build, Redevelopment

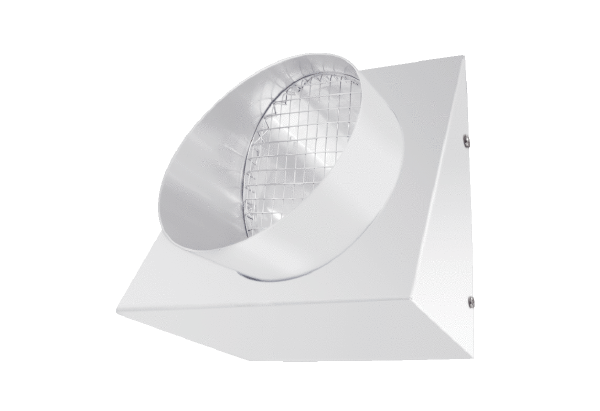

KW-FL 16W IM0015666.PNG Outgoing air wall supports, DN 160, colour pure white, similar to RAL 9010

Characteristic curve

Dimensioned drawing

KW-FL 16W - Dimensioned drawing [mm]

  1. View from below
  2. Side view (outgoing air socket)
  3. Front view - outgoing air socket

Technical data

KW-FL 16W - Technical data

Article KW-FL 16W
Air direction Air extraction
Installation site Outside wall
Material Stainless steel (V2A)
Colour Pure white, similar to RAL 9010
Weight 1,5 kg
Nominal size 160 mm
Width 220 mm
Height 232 mm
Depth 100 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799520801
Article number 0152.0080

Accessories of

KW-FL 16W - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 160 Flat - - -
WS ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised exhaust air unit ZEG2 EC 0086.0206 on request
  • On the notes
Centralised ventilation unit WS 150 R Discontinued product 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L Discontinued product 0095.0058 on request
  • On the notes
Centralised ventilation unit WS 170 R 0095.0081 on request
  • On the notes
Centralised ventilation unit WS 170 RET 0095.0110 on request
  • On the notes
Centralised ventilation unit WS 170 L 0095.0082 on request
  • On the notes
Centralised ventilation unit WS 170 LET 0095.0111 on request
  • On the notes
Centralised ventilation unit WS 170 KR 0095.0083 on request
  • On the notes
Centralised ventilation unit WS 170 KRET 0095.0112 on request
  • On the notes
Centralised ventilation unit WS 170 KL 0095.0084 on request
  • On the notes
Centralised ventilation unit WS 170 KLET 0095.0113 on request
  • On the notes
Centralised ventilation unit WS 170 KBR 0095.0087 on request
  • On the notes
Centralised ventilation unit WS 170 KBRET 0095.0114 on request
  • On the notes
Centralised ventilation unit WS 170 KBL 0095.0088 on request
  • On the notes
Centralised ventilation unit WS 170 KBLET 0095.0115 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised exhaust air unit ZEG EC No longer available for delivery. Successor product ZEG2 EC, 0086.0206 available 0086.0205 on request
  • On the notes
Centralised exhaust air unit ZEG 2000 P No longer available for delivery 0086.0203 on request
  • On the notes
Centralised ventilation unit WS 170 KBR No longer available for delivery 0095.0085 on request
  • On the notes
Centralised ventilation unit WS 170 KBL No longer available for delivery 0095.0086 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes

Product description

Productdescription

KW-FL 16W

short description

Outgoing air wall supports, DN 160, colour pure white, similar to RAL 9010

Product description

  • The attractive stainless steel outgoing air wall supports are fitted on the outside wall of a building and are intended for blowing out outgoing air.
  • The outgoing air is blown out to the front.
  • An outgoing air cowl with condensate drip edge and bird protection grille is included in the scope of delivery.
