Combi-wall connections

KWH 16 R

Article number: 0152.0060
Manufacturer: MAICO
Combi-wall connections, DN 160, outside air right-handed, suitable for MAICOTherm, DN 125
Application examples: Single-family house, Multiple family unit, New build, Redevelopment
Product data sheet
KWH 16 R IM0012735.PNG Combi-wall connections, DN 160, outside air right-handed, suitable for MAICOTherm, DN 125

Characteristic curve

KWH 16 R - Characteristic curve Outside air

KWH 16 R - Characteristic curve Outgoing air

Dimensioned drawing

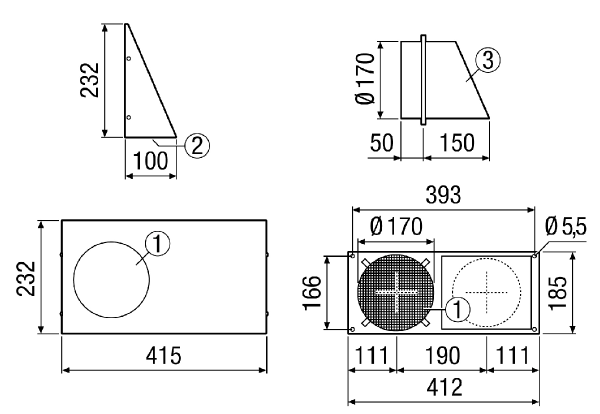

KWH 16 R - Dimensioned drawing [mm]

  1. Outgoing air
  2. Outside air
  3. Inclined connections

Technical data

KWH 16 R - Technical data

Article KWH 16 R
Model Connections on the right
Air direction Ventilation and air extraction
Installation site Outside wall
Material Stainless steel (V2A)
Weight 2 kg
Weight including packaging 2,3 kg
Nominal size 160 mm
Width 415 mm
Height 232 mm
Depth 100 mm
Width with packaging 435 mm
Height with packaging 240 mm
Depth with packaging 200 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799520603
Article number 0152.0060

Accessories of

Product description

Productdescription

KWH 16 R

short description

Combi-wall connections, DN 160, outside air right-handed, suitable for MAICOTherm, DN 125

Product description

  • The design combi-wall-connection contains outside air and outgoing air sockets in one housing.
  • The combi-wall-connection is available as a left-hand or right-hand version.
  • This facilitates the laying of ducts in the building between ventilation unit and combi-wall-connection, without crossover.
  • Particularly suitable for single family-unit and terraced houses.
  • Outside air is sucked in below and the outgoing air is expelled forwards. This minimises the mixing of the two air flows.
  • The outgoing air duct connection is inclined a long way to the outside. This disperses the resulting outgoing air condensation.
  • Simple installation - consists of two main components:
    • Protective cover
    • Facade part
  • The facade fixing points are concealed by the protective cover.
  • In locations exposed to the wind or from the second floor upwards, additional measures must be taken to avoid ingression of water through wind pressure or e.g. driving rain at the outgoing air socket.
